Description
Overview

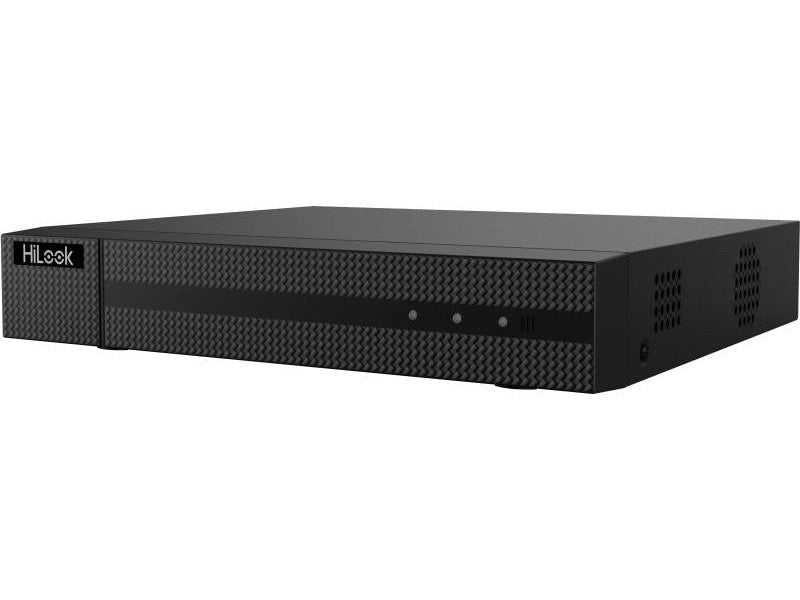

4-ch 5 MP 1U H.265 DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 6-ch IP camera inputs (up to 8 MP)
- Up to 8 MP@8 fps encoding capability
4-ch 5 MP 1U H.265 DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 6-ch IP camera inputs (up to 8 MP)
- Up to 8 MP@8 fps encoding capability
| Hikvision DVR-204U-M1 Specifications | |
|---|---|
| Video and Audio | |
| Analog Video Input | 4-ch HDTVI/AHD/CVI/CVBS |
| IP Video Input | 2-ch (default), up to 6-ch (enhanced mode) |
| Max IP Camera Resolution | Up to 8 MP |
| Encoding Capability | Up to 8 MP @ 8 fps |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264 |
| Audio Input | Via coaxial cable |
| Smart Features | |
| Motion Detection 2.0 | Deep learning-based human and vehicle classification Enabled by default on all analog channels Reduces false alarms from leaves, lights, etc. |
| Quick Search | By object or event type |
| Network | |
| Remote Connections | Supported |
| Network Protocols | TCP/IP, DHCP, DNS, DDNS, NTP, SADP, HTTPS |
| Storage | |
| SATA Interface | 1 × SATA |
| Max Capacity | Up to 10 TB |
| Auxiliary Interfaces | |
| USB Ports | 2 × USB 2.0 |
| Video Output | HDMI/VGA up to 1920 × 1080 |
| General | |
| Form Factor | 1U chassis |
| Power Supply | 12 VDC |
| Power Consumption | ≤ 10 W (without HDD) |
| Operating Temperature | -10 °C to 55 °C |
| Humidity | 10% to 90% |
