Description
Overview

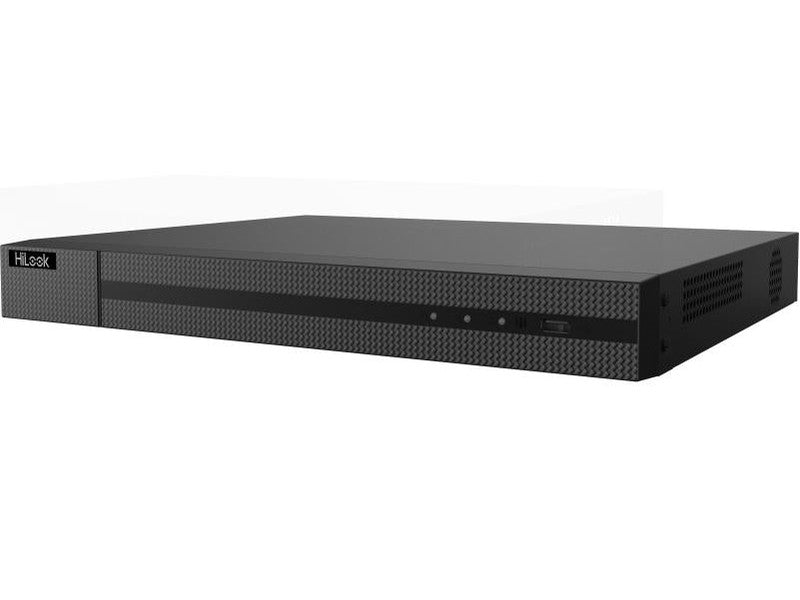

16-ch 5 MP 1U H.265 DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 24-ch IP camera inputs (up to 8 MP)
- Up to 8 MP@8 fps encoding capability
16-ch 5 MP 1U H.265 DVR
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Audio via coaxial cable
- Up to 24-ch IP camera inputs (up to 8 MP)
- Up to 8 MP@8 fps encoding capability
| Hikvision DVR-216U-M2 Specifications | |
|---|---|
| Video and Audio | |
| Analog Video Input | 16-ch HDTVI/AHD/CVI/CVBS |
| IP Video Input | 8-ch (default), up to 24-ch (enhanced mode) |
| Max IP Camera Resolution | Up to 8 MP |
| Encoding Capability | Up to 8 MP @ 8 fps |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Audio Input | Via coaxial cable |
| Smart Features | |
| Motion Detection 2.0 | Deep learning-based human and vehicle classification Enabled by default on all analog channels |
| Smart Search | Efficient playback by object or event type |
| Network | |
| Ethernet Interface | 1 × RJ-45 10/100/1000 Mbps self-adaptive |
| Wi-Fi Support | Compatible with major USB Wi-Fi dongles |
| Remote Access | HiLookVision, DDNS supported |
| Storage | |
| SATA Interfaces | 2 × SATA ports |
| Max Capacity | Up to 10 TB per HDD |
| Auxiliary Interfaces | |
| USB Ports | 2 × USB 2.0 |
| Video Output | HDMI/VGA simultaneous output (up to 1920 × 1080) |
| General | |
| Chassis | 1U metal |
| Dimensions (W × D × H) | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 in) |
| Weight | ≤ 2 kg (without HDD) |
| Power Supply | 12 VDC |
| Power Consumption | ≤ 25 W (without HDD) |
| Operating Temperature | -10 °C to 55 °C |
| Humidity | 10% to 90% |
