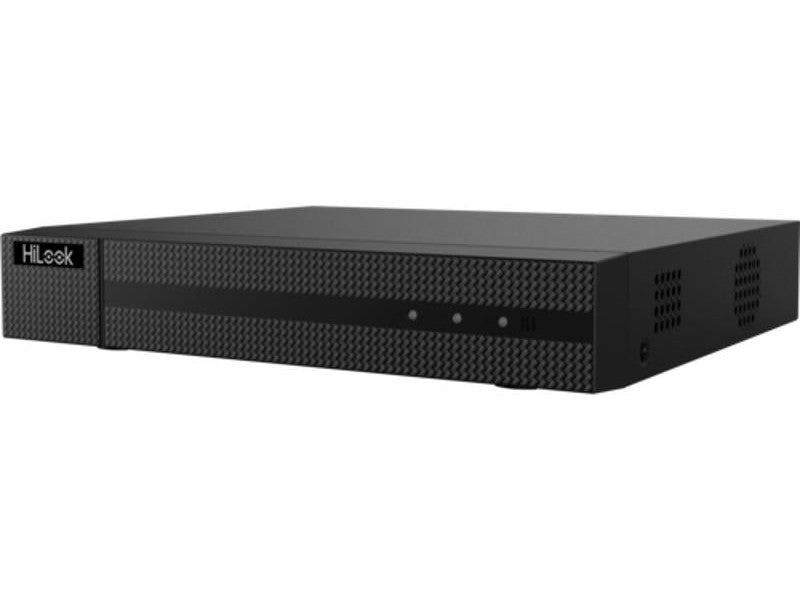

Hikvision HiLook NVR-104MH-C-4P D Version, 4CH, 1xHDD, 1x2TB, POE(4), 8MP Resolution, 3YR

Overview

4-ch Mini 1U 4 PoE 4K NVR
- Up to 4-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth

Hikvision NVR-104MH-C/4P-2TB Specifications
Video and Audio
IP Camera Inputs	4 channels
Max Decoding Capability	1-ch @ 8 MP 3-ch @ 4 MP 6-ch @ 1080p
Video Compression	H.265+/H.265/H.264+/H.264
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	80 Mbps
Display Output
HDMI Output	4K (3840 × 2160) @ 30Hz 1920 × 1080 / 1600 × 1200 / 1280 × 1024 / 1280 × 720 / 1024 × 768 @ 60Hz
VGA Output	1920 × 1080 / 1280 × 1024 / 1280 × 720 @ 60Hz
Storage
Preinstalled HDD	2 TB
SATA Interface	1 × SATA port
Max Capacity	Up to 10 TB
Smart Features
Motion Detection 2.0	Human/vehicle classification on 1-ch analog or 4-ch IP input
Quick Search	By object type or event
Network
PoE Ports	4 × RJ-45 10/100 Mbps (IEEE 802.3 af/at)
Ethernet	1 × RJ-45 10/100 Mbps
Auxiliary Interfaces
USB Ports	2 × USB 2.0
Audio Output	1-ch RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch RCA (2.0 Vp-p, 1 KΩ)
General
Form Factor	Mini 1U chassis
Power Supply	48 VDC
Power Consumption	≤ 10 W (without HDD)
Operating Temperature	-10 °C to 55 °C
Humidity	10% to 90%
