Description
Overview

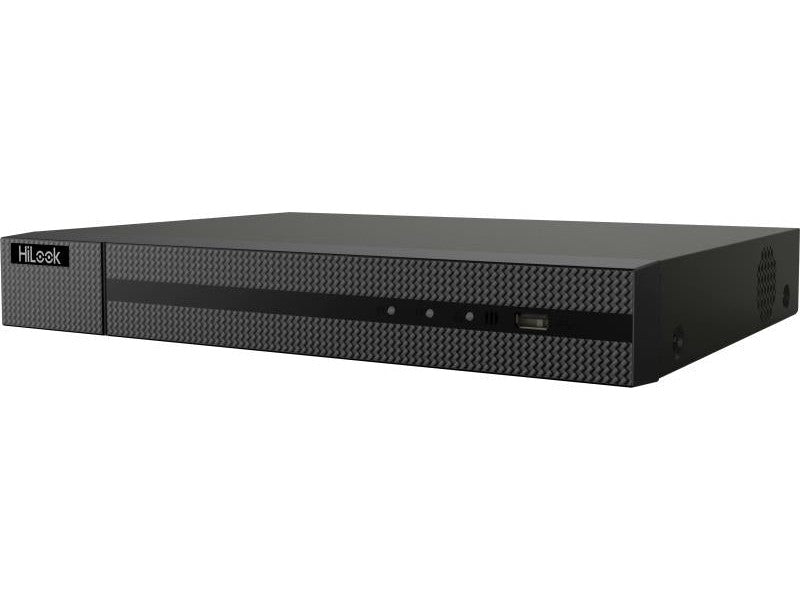

8-ch 1U 8 PoE 4K NVR
- Up to 8-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 80 Mbps incoming bandwidth
8-ch 1U 8 PoE 4K NVR
- Up to 8-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 80 Mbps incoming bandwidth
| Hikvision NVR-108MH-C/8P(D) Specifications | |
|---|---|
| Video and Audio | |
| IP Camera Inputs | 8 channels |
| Max Decoding Capability | 1-ch @ 8 MP 3-ch @ 4 MP 6-ch @ 1080p |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Display Output | |
| HDMI Output | Up to 4K (3840 × 2160) @ 30 Hz |
| VGA Output | Up to 1920 × 1080 @ 60 Hz |
| Storage | |
| SATA Interface | 1 × SATA port |
| Max Capacity | Up to 8 TB |
| Smart Features | |
| Motion Detection 2.0 | Human/vehicle classification on 4 channels |
| VCA Support | Line crossing, intrusion, region entrance/exit |
| Smart Search | Supported |
| Smart Playback | Supported |
| Network | |
| PoE Ports | 8 × RJ-45 10/100 Mbps (IEEE 802.3 af/at) |
| Ethernet | 1 × RJ-45 10/100 Mbps (self-adaptive) |
| Auxiliary Interfaces | |
| USB Ports | 2 × USB 2.0 |
| Audio I/O | 1-ch RCA in / 1-ch RCA out |
| General | |
| Form Factor | 1U chassis |
| Power Supply | 48 VDC |
| Power Consumption | ≤ 10 W (without HDD) |
| Operating Temperature | -10 °C to 55 °C |
| Humidity | 10% to 90% |
