Description
Overview

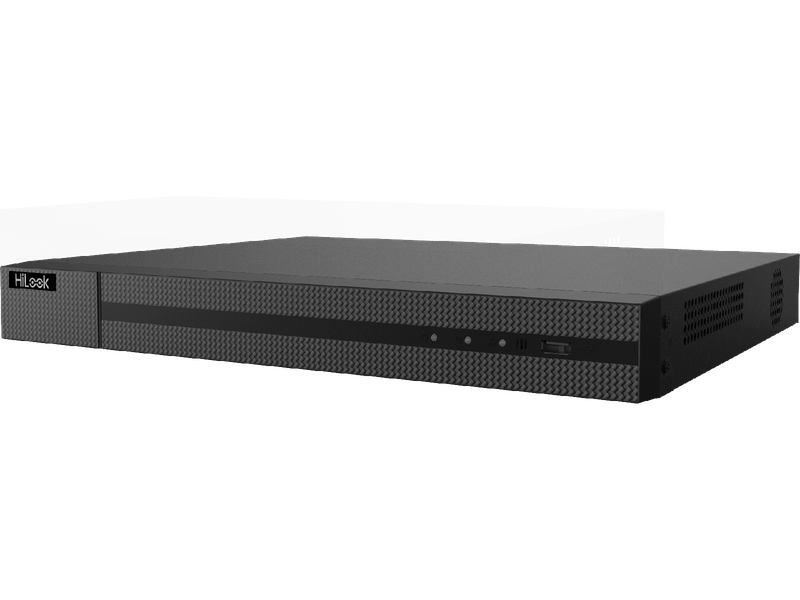

16-ch 1U 16 PoE 4K NVR
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 160 Mbps incoming bandwidth
16-ch 1U 16 PoE 4K NVR
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 160 Mbps incoming bandwidth
| Hikvision NVR-216MH-C/16P(D) Specifications | |
|---|---|
| Video and Audio | |
| IP Camera Inputs | 16 channels |
| Max Decoding Capability | 1-ch @ 8 MP 3-ch @ 4 MP 6-ch @ 1080p |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Display Output | |
| HDMI Output | Up to 4K (3840 × 2160) |
| VGA Output | Up to 1920 × 1080 |
| Storage | |
| SATA Interfaces | 2 × SATA ports |
| Max Capacity | Up to 8 TB per HDD |
| Smart Features | |
| Motion Detection 2.0 | Human/vehicle classification on 4 channels |
| VCA Support | Line crossing, intrusion, region entrance/exit |
| Smart Search | Supported |
| Smart Playback | Supported |
| Network | |
| PoE Ports | 16 × RJ-45 10/100 Mbps (IEEE 802.3 af/at) |
| Ethernet | 1 × RJ-45 10/100/1000 Mbps (self-adaptive) |
| Auxiliary Interfaces | |
| USB Ports | 2 × USB 2.0 |
| Audio I/O | 1-ch RCA in / 1-ch RCA out |
| General | |
| Form Factor | 1U chassis |
| Power Supply | 48 VDC |
| Power Consumption | ≤ 15 W (without HDD) |
| Operating Temperature | -10 °C to 55 °C |
| Humidity | 10% to 90% |
