Description
Overview

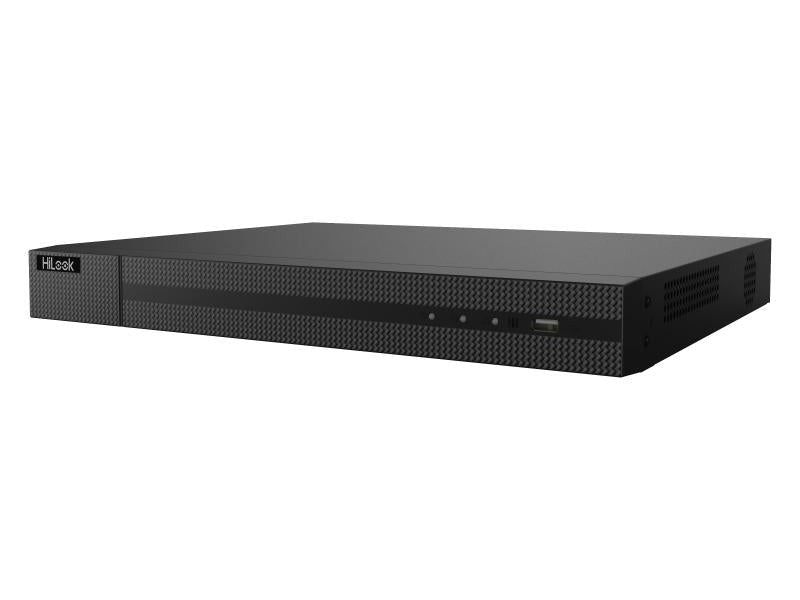

32-ch 1U 16 PoE 4K NVR
- Up to 32-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity
- Up to 256 Mbps incoming bandwidth
32-ch 1U 16 PoE 4K NVR
- Up to 32-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity
- Up to 256 Mbps incoming bandwidth
| Hikvision NVR-232MH-K/16P Specifications | |
|---|---|
| Video and AI Analytics | |
| IP Camera Inputs | 32 channels |
| Max Decoding Capability | 2-ch @ 12 MP 4-ch @ 8 MP 8-ch @ 4 MP 16-ch @ 1080p |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| AI by Device | Motion Detection 2.0 Perimeter Protection Facial Recognition |
| AI by Camera | Facial Recognition Perimeter Protection ANPR VCA Throwing Objects Detection |
| Display Output | |
| HDMI Output | Up to 4K (3840 × 2160) |
| VGA Output | Up to 1920 × 1080 |
| Storage | |
| SATA Interfaces | 2 × SATA ports |
| Max Capacity | Up to 16 TB per HDD (32 TB total) |
| Network | |
| PoE Ports | 16 × RJ-45 10/100 Mbps (IEEE 802.3 af/at) |
| Ethernet | 1 × RJ-45 10/100/1000 Mbps |
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Auxiliary Interfaces | |
| USB Ports | 2 × USB 2.0 |
| Audio I/O | 1-ch RCA in / 1-ch RCA out |
| General | |
| Form Factor | 1U chassis |
| Power Supply | 48 VDC |
| Power Consumption | ≤ 15 W (without HDD) |
| Operating Temperature | -10 °C to 55 °C |
| Humidity | 10% to 90% |
