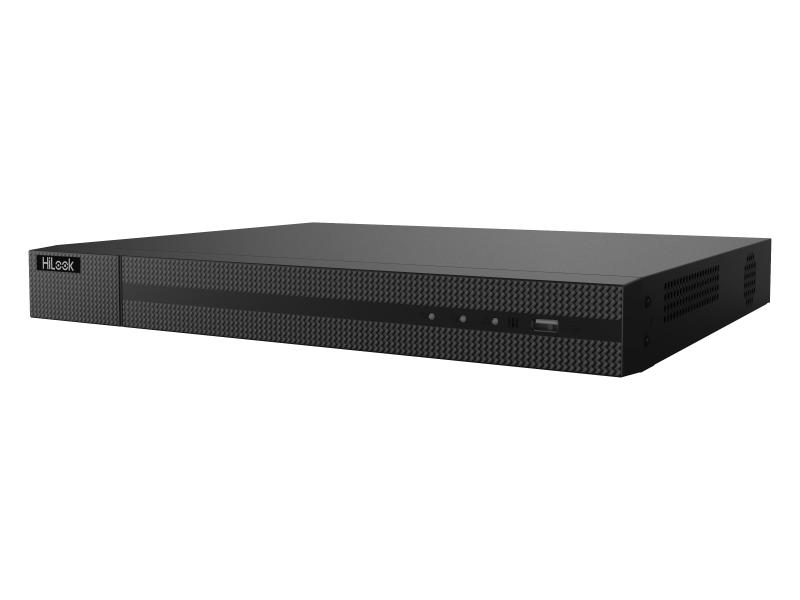

Hikvision HiLook PRO NVR-216MH-K-16P-PRO 16CH, 1xHDD, POE (16), 8MP Resolution x 2CH, 3YR

Overview

16-ch 1U 16 PoE 4K NVR
- Up to 16-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 160 Mbps incoming bandwidth

Hikvision NVR-216MH-K/16P-PRO Specifications
Video and AI Analytics
IP Camera Inputs	16 channels
Max Decoding Capability	2-ch @ 12 MP 4-ch @ 8 MP 8-ch @ 4 MP 16-ch @ 1080p
Video Compression	H.265+/H.265/H.264+/H.264
AI by Device	Motion Detection 2.0 Perimeter Protection Facial Recognition
AI by Camera	Facial Recognition Perimeter Protection ANPR VCA Throwing Objects Detection
Display Output
HDMI Output	Up to 4K (3840 × 2160)
VGA Output	Up to 1920 × 1080
Storage
SATA Interfaces	2 × SATA ports
Max Capacity	Up to 16 TB per HDD (32 TB total)
Network
PoE Ports	16 × RJ-45 10/100 Mbps (IEEE 802.3 af/at)
Ethernet	1 × RJ-45 10/100/1000 Mbps
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	160 Mbps
Auxiliary Interfaces
USB Ports	2 × USB 2.0
Audio I/O	1-ch RCA in / 1-ch RCA out
General
Form Factor	1U chassis
Power Supply	48 VDC
Power Consumption	≤ 15 W (without HDD)
Operating Temperature	-10 °C to 55 °C
Humidity	10% to 90%
