Hikvision HiLook PTZ-N3404LIU-Sl 4MP PTZ Camera+Free 1Xds-Ups1000-Au
Hikvision HiLook PTZ-N3404LIU-Sl 4MP PTZ Camera+Free 1Xds-Ups1000-Au
| Hikvision PTZ-N3404LIU-SL-FREEUPS1000 Specifications | |
|---|---|

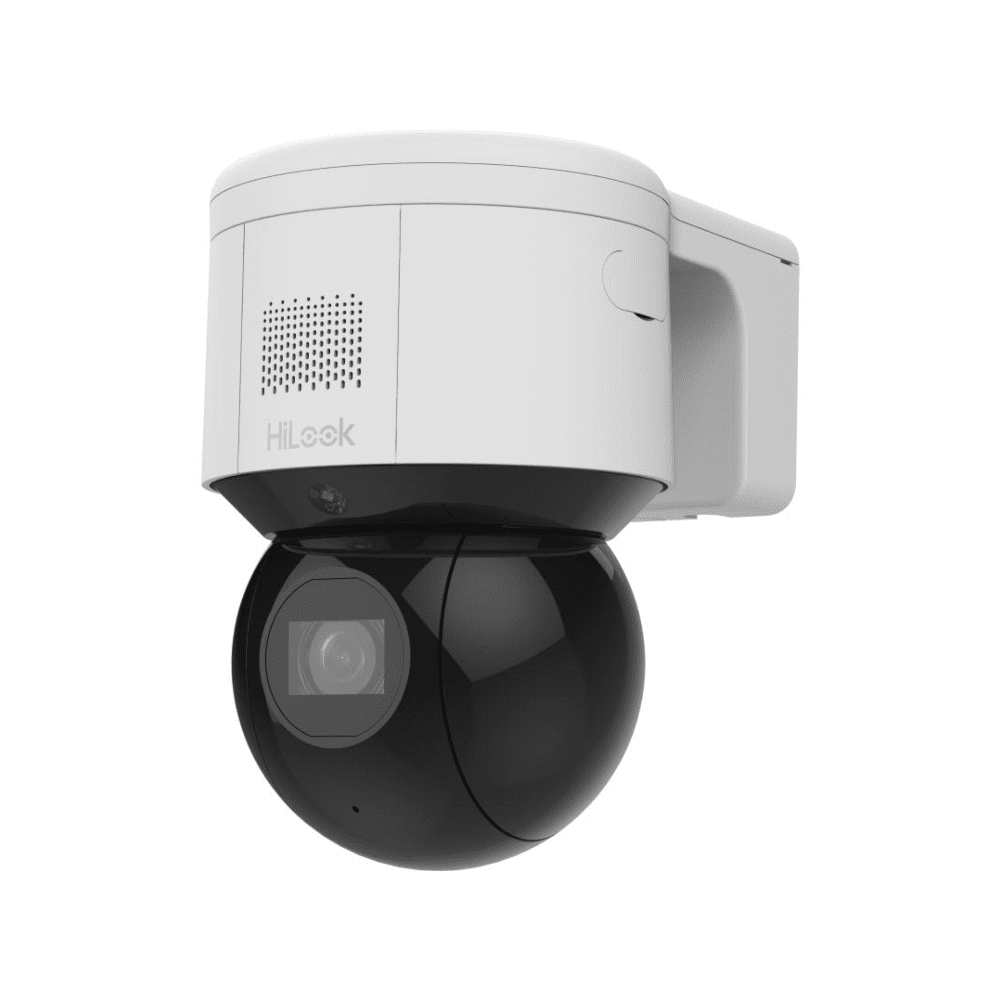

| Camera: PTZ-N3404LIU-SL | |
| Resolution | 4MP (2560 × 1440) |
| Lens | 2.8–12 mm motorized, 4× optical zoom |
| Field of View | H: 96.7°–31.6°, V: 51.1°–17.7°, D: 115.1°–36.3° |
| IR Range | Up to 30 meters |
| Smart Features | Human/vehicle detection, auto-tracking, flashing lights, two-way audio |
| Audio | Built-in mic and speaker |
| Pan/Tilt | Pan: 0°–355°, Tilt: 0°–90° |
| Compression | H.265+, H.265, H.264+, H.264 |
| Storage | microSD slot (up to 256 GB) |
| Power | 12 VDC ±25%, PoE (802.3af) |
| Protection | IP66 |
| Mounting | Wall mount only |

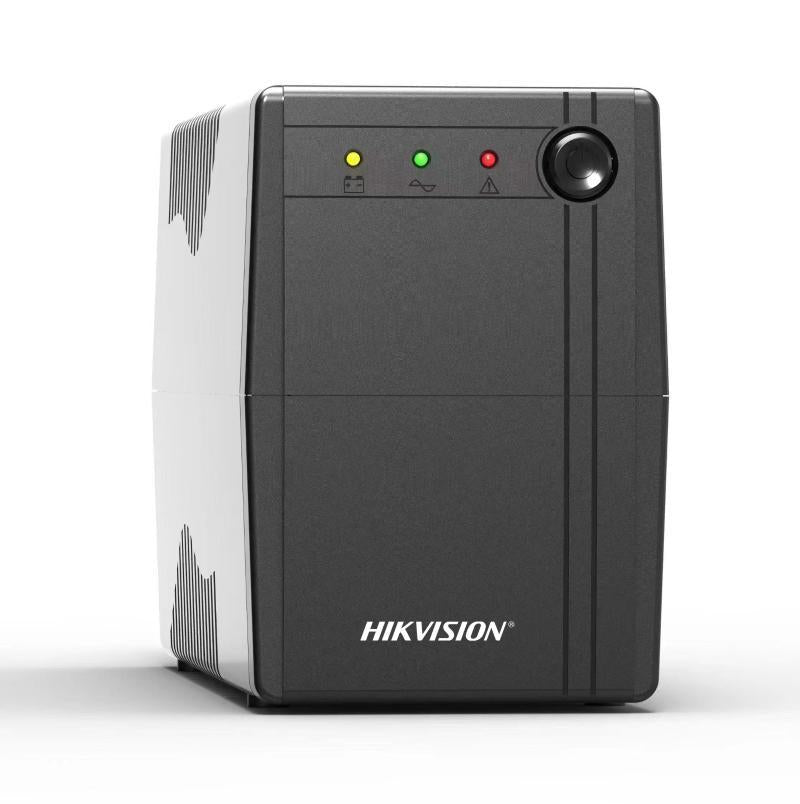

| UPS: FREEUPS1000 | |
| Capacity | 1000 VA / 600 W |
| Output | Pure sine wave, 230V AC |
| Battery Type | Sealed lead-acid, maintenance-free |
| Backup Time | ~30–60 minutes (depends on load) |
| Protection Features | Overload, surge, short circuit, battery overcharge/discharge |
| Display | LED indicators or LCD (model-dependent) |
