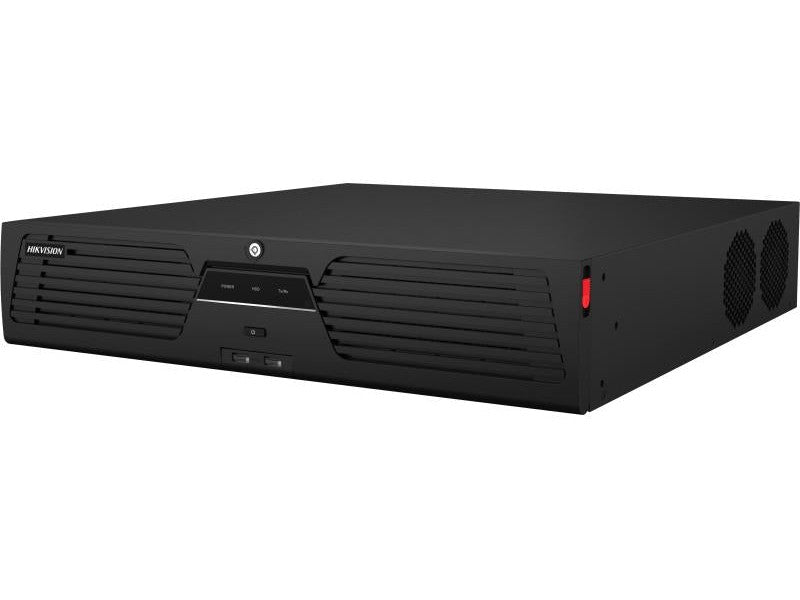

Hikvision M-Series 32CH NVR, 320MBps, 8K, VGA/HDMI, 8 BAY, 3RU, NO HDD, 5YR

Overview

32-ch 2U 8K NVR
- Up to 32-ch IP camera inputs
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
- Up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
- 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
- Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
- Up to 8-ch IP speakers can be connected

Hikvision DS-9632NI-M8 Specifications
Video and Audio
IP Camera Inputs	32 channels
Max Recording Resolution	Up to 32 MP
Decoding Capability	2-ch @ 32 MP 2-ch @ 24 MP 4-ch @ 12 MP 8-ch @ 8 MP 16-ch @ 4 MP 32-ch @ 1080p
Video Compression	H.265+/H.265/H.264+/H.264
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	400 Mbps
Two-Way Audio	Supported
Display Output
HDMI Interfaces	2 × HDMI (independent sources)
VGA Interfaces	2 × VGA (independent sources)
Max Output Resolution	8K or dual 4K
Storage
SATA Interfaces	8 × SATA ports
Max Capacity	Up to 14 TB per HDD (112 TB total)
RAID Support	RAID 0, 1, 5, 6, 10 + N+M hot spare
Smart Features
Special Camera Support	People counting, ANPR, fisheye
Streaming Optimization	Advanced streaming for poor networks
IP Speaker Support	Up to 8 channels
General
Chassis	2U rackmount
Power Supply	100–240 VAC
Operating Temperature	-10 °C to 55 °C
Humidity	10% to 90%
