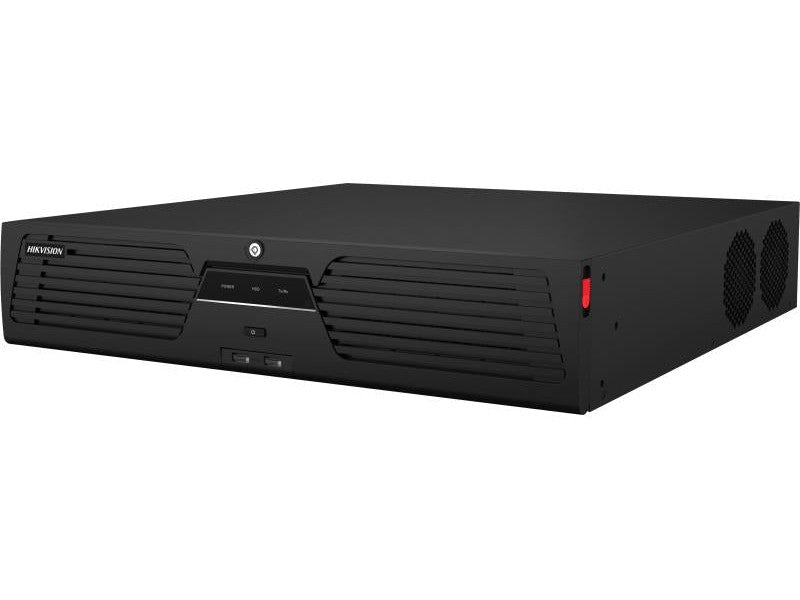

Hikvision M-Series 9664NI-M8 64CH NVR, 400MBps, 8K, VGA/HDMI, 8 BAY, RAID, NO HDD, 5YR

Overview

64-ch 2U 4K NVR
- Up to 64-ch IP camera inputs
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
- Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
- 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
- Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
- Up to 8-ch IP speakers can be connected

Hikvision DS-9664NI-M8 Specifications
Video and Audio
IP Camera Inputs	64 channels
Max Decoding Capability	2-ch @ 32 MP 2-ch @ 24 MP 4-ch @ 12 MP 8-ch @ 8 MP 16-ch @ 4 MP 32-ch @ 1080p
Video Compression	H.265+/H.265/H.264+/H.264
Incoming Bandwidth	400 Mbps
Outgoing Bandwidth	400 Mbps
Special Camera Support	People counting, ANPR, fisheye
Streaming Optimization	Advanced streaming for poor networks
IP Speaker Support	Up to 8 channels
Display Output
HDMI Interfaces	2 × HDMI (independent sources)
VGA Interfaces	2 × VGA (independent sources)
Max Output Resolution	8K or dual 4K
Storage
SATA Interfaces	8 × SATA ports
RAID Support	RAID 0, 1, 5, 6, 10 + N+M hot spare
Auxiliary Interfaces
USB Ports	Front and rear USB 2.0 / 3.0
Alarm I/O	Configurable
Audio I/O	Supported
General
Chassis	2U rackmount
Power Supply	100–240 VAC
Operating Temperature	-10 °C to 55 °C
Humidity	10% to 90%
Certification
Compliance	CE, FCC, RoHS EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035
