Description
Overview

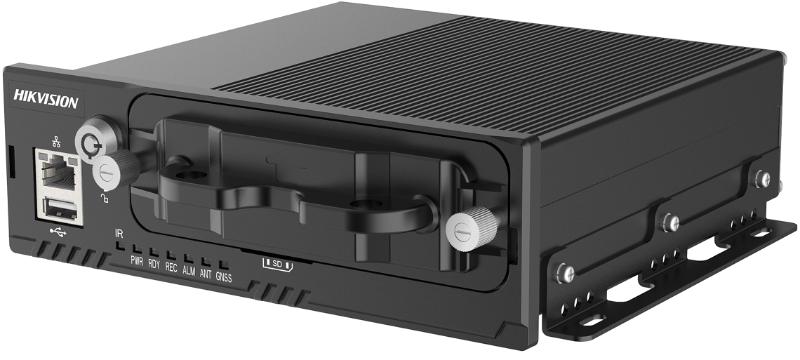

4-ch , H.264/H.265, 2xHDD/SSD Mobile DVR
- Access of 4 HD TVI cameras with up to 1080P resolution.
- Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
- User-friendly GUI providing easy and flexible operations.
- Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
- Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
- Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
- Specialized aviation connectors ensuring signal stability.
- Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
- Build-in super-capacitor prevents the mobile DVR from damage caused by sudden power outage.
- Wide-range power input (+9 VDC to +36 VDC).
- Power-off protection prevents key data loss.
- Aluminum die-cast chassis with no fan design well adaptable to working environment.
- Software-based firewall supported.
- Support accessing via WEB browser.
- Support Driving Status Monitoring and Adcanced Driving Asistance System.
- Support recording backup on redundant HDD/SSDs.
- Up to 3 AI features can be run at the same time,and the default combination is ADAS+DSM+DI
4-ch , H.264/H.265, 2xHDD/SSD Mobile DVR
- Access of 4 HD TVI cameras with up to 1080P resolution.
- Pluggable 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
- User-friendly GUI providing easy and flexible operations.
- Pluggable 4G module and Wi-Fi module providing flexible data transmission solutions.
- Built-in GPS module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
- Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
- Specialized aviation connectors ensuring signal stability.
- Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
- Build-in super-capacitor prevents the mobile DVR from damage caused by sudden power outage.
- Wide-range power input (+9 VDC to +36 VDC).
- Power-off protection prevents key data loss.
- Aluminum die-cast chassis with no fan design well adaptable to working environment.
- Software-based firewall supported.
- Support accessing via WEB browser.
- Support Driving Status Monitoring and Adcanced Driving Asistance System.
- Support recording backup on redundant HDD/SSDs.
- Up to 3 AI features can be run at the same time,and the default combination is ADAS+DSM+DI
Hikvision AE-MD5043 Mobile DVR Specifications | |
---|---|
Model Number | AE-MD5043 |
Video Channels | 4-channel HD TVI (up to 1080P) |
Compression | H.264 / H.265 |
Storage | Pluggable 2 × 2.5" HDD/SSD (SSD up to 4TB, HDD up to 2TB) |
Wireless Modules | Pluggable 4G and Wi-Fi modules |
GPS | Built-in GPS module for location tracking |
Driving Data Capture | Interfaces for turn, brake, reverse, etc. |
Power Input | +9 VDC to +36 VDC |
Power Protection | Super-capacitor for sudden outage protection |
Shutdown Delay | Configurable (0 to 6 hours) |
Scheduled Operation | 24-hour startup/shutdown scheduling |
Connectors | Specialized aviation connectors |
User Interface | GUI for preview, playback, and settings |
Platform Compatibility | Hikvision HCC and HCP platforms |
