Description
Overview

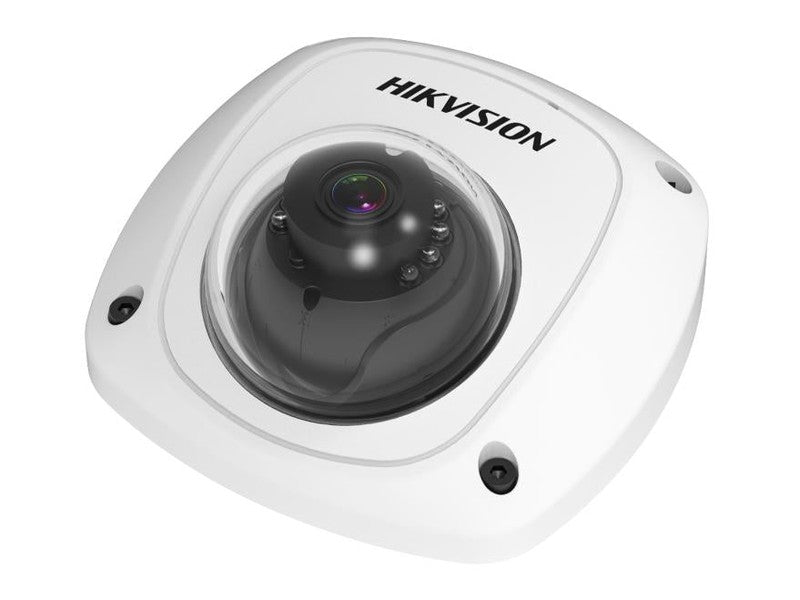

1080P 1/2.9”CMOS infrared dot matrix hemispherical analog camera
- 2 Megapixel Progressive CMOS sensor
- Up to 1080P resolution
- Smart IR, AGC
- RGB-IR
- Internal 3-axis adjustment
- Built-in microphone
1080P 1/2.9”CMOS infrared dot matrix hemispherical analog camera
- 2 Megapixel Progressive CMOS sensor
- Up to 1080P resolution
- Smart IR, AGC
- RGB-IR
- Internal 3-axis adjustment
- Built-in microphone
| Hikvision AE-VC211T-IRS (2.8 mm) Specifications | |
|---|---|
| Model | AE-VC211T-IRS-2.8MM |
| Camera Type | Mobile Analog Hemispherical IR Camera |
| Image Sensor | 2MP Progressive Scan CMOS |
| Max Resolution | 1920 × 1080 (1080p) |
| Lens | 2.8 mm fixed focal, M12 mount |
| Field of View | Horizontal: 101°, Vertical: 54°, Diagonal: 120° |
| Shutter Speed | 1/25 s to 1/50,000 s |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON); 0 Lux with IR |
| IR Range | Up to 10 meters |
| Day/Night | Auto switch with IR cut filter |
| WDR | True WDR |
| Smart Features | Smart IR, AGC, DNR, OSD menu |
| Audio | Built-in microphone |
| Video Output | HD-TVI (Up the Coax supported) |
| Angle Adjustment | Pan: -30° to 30°, Tilt: 0° to 75°, Rotate: -180° to 180° |
| Power Supply | 12 VDC |
| Power Consumption | Max. 4 W |
| Operating Temperature | -40 °C to 75 °C |
| Ingress Protection | IP67 |
