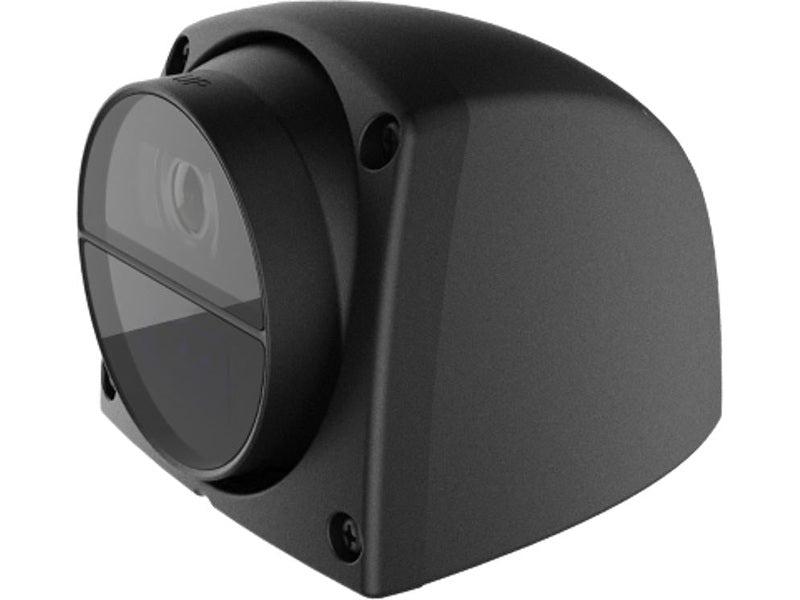

1080P 1/2.9”CMOS infrared array conch analog camera
- Adopts progressive scan CMOS to prevent motion image aliasing
- Supports HD image coaxial output with1080P resolution
- Min. illumination: 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR
- Supports auto electronic shutter to adapt to different monitoring environments
- Supports auto electronic gain and self-adaptation to light
- IP68
- Adopts shock-proof design and aviation output plug
- (Optional) Supports left-right mirroring
1080P 1/2.9”CMOS infrared array conch analog camera
- Adopts progressive scan CMOS to prevent motion image aliasing
- Supports HD image coaxial output with1080P resolution
- Min. illumination: 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR
- Supports auto electronic shutter to adapt to different monitoring environments
- Supports auto electronic gain and self-adaptation to light
- IP68
- Adopts shock-proof design and aviation output plug
- (Optional) Supports left-right mirroring
| Hikvision AE-VC224T-IT (2.8 mm) Specifications | |
|---|---|
| Model | AE-VC224T-IT-2.8MM |
| Camera Type | Mobile Analog Conch IR Camera |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max Resolution | 1920 × 1080 (1080p) |
| Lens | 2.8 mm fixed focal, M12 mount |
| Shutter Speed | 1/50 s to 1/50,000 s |
| Minimum Illumination | 0.1 Lux @ (F1.2, AGC ON); 0 Lux with IR |
| Day/Night | Electronic switch |
| Frame Rate | 1080p @ 25 fps |
| Video Output | 1 Vp-p Composite Output (HD coaxial) |
| Signal-to-Noise Ratio | > 42 dB |
| Mirror Mode | Optional left-right mirroring |
| White Balance | Auto |
| Power Supply | 9–16 VDC |
| Power Consumption | Max. 2.5 W |
| Operating Temperature | -40 °C to 75 °C |
| Ingress Protection | IP68 |
| Impact Resistance | IK10 |
| Design Features | Shock-proof housing, aviation output plug |
