Description
Overview

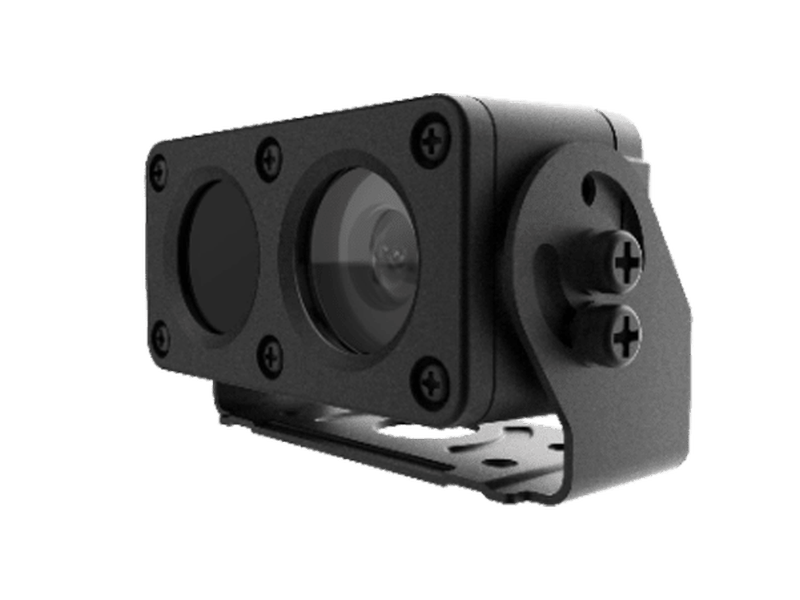

1080P 1/2.9”CMOS infrared array square analog camera
- Progressive scan CMOS
- Up to 1080P resolution
- Low illumination, 0.1 lux @ (F1.2, AGC ON), 0 lux with IR
- Supports auto electronic day & night switch
- Supports auto white balance
- Supports left & right mirror mode
- IP 68 protection level
1080P 1/2.9”CMOS infrared array square analog camera
- Progressive scan CMOS
- Up to 1080P resolution
- Low illumination, 0.1 lux @ (F1.2, AGC ON), 0 lux with IR
- Supports auto electronic day & night switch
- Supports auto white balance
- Supports left & right mirror mode
- IP 68 protection level
| Hikvision AE-VC253T-IT (2.1 mm) Specifications | |
|---|---|
| Model | AE-VC253T-IT-2.1MM |
| Camera Type | Mobile Analog Square IR Camera |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max Resolution | 1920 × 1080 (1080p) |
| Lens | 2.1 mm fixed focal, M12 mount |
| Shutter Speed | 1/25 s to 1/50,000 s |
| Minimum Illumination | 0.1 Lux @ (F1.2, AGC ON); 0 Lux with IR |
| Day/Night | Electronic switch |
| WDR | 85 dB |
| Frame Rate | 1080p @ 25 fps |
| Video Output | HD-TVI, 1 Vp-p Composite Output (aviation plug) |
| Audio | No built-in microphone or speaker |
| Mirror Mode | Supports left & right mirror |
| White Balance | Auto |
| Signal System | PAL (default), switchable to NTSC |
| S/N Ratio | > 42 dB |
| Power Supply | 9–16 VDC |
| Power Consumption | Max. 2.5 W |
| Operating Temperature | -40 °C to 75 °C |
| Ingress Protection | IP68 |
| Dimensions | 83.2 mm × 46 mm × 41.6 mm |
| Weight | Approx. 100 g |
