Description
Overview
- 180° splicing image to present all scenes that covered by the camera
- Built-in heater, ultra-low temperature start up to -40 °C
- Water and dust resistant (IP67) and vandal proof (IK10)
- Multiple display modes available: panorama, original, panorama + ePTZ, and divided panorama
- 180° splicing image to present all scenes that covered by the camera
- Built-in heater, ultra-low temperature start up to -40 °C
- Water and dust resistant (IP67) and vandal proof (IK10)
- Multiple display modes available: panorama, original, panorama + ePTZ, and divided panorama

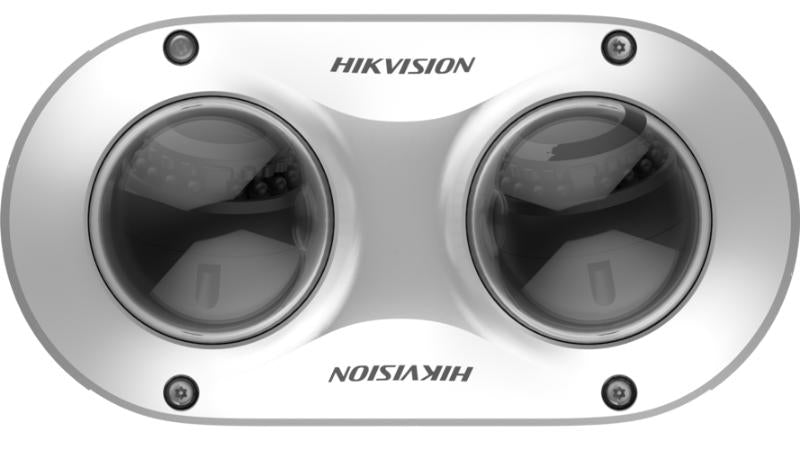

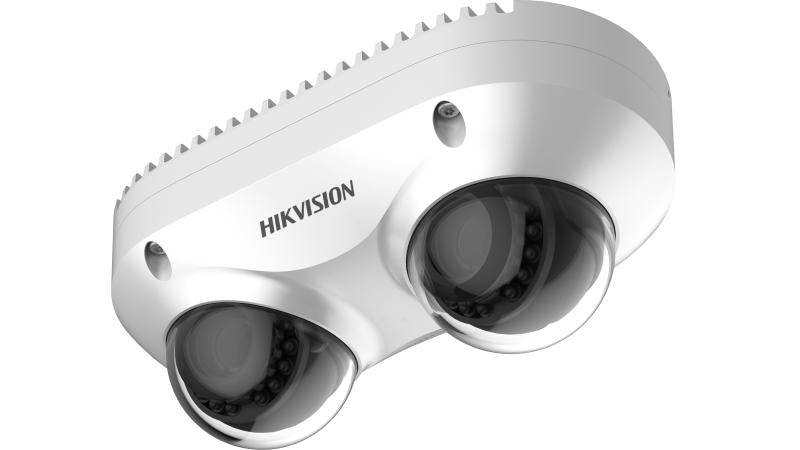

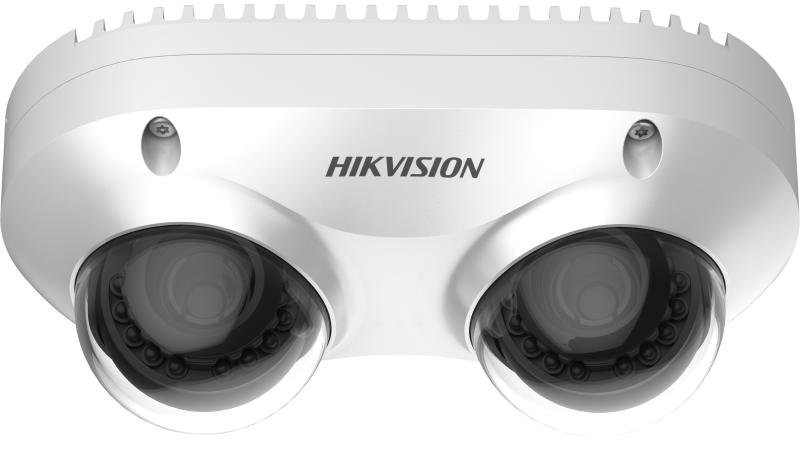

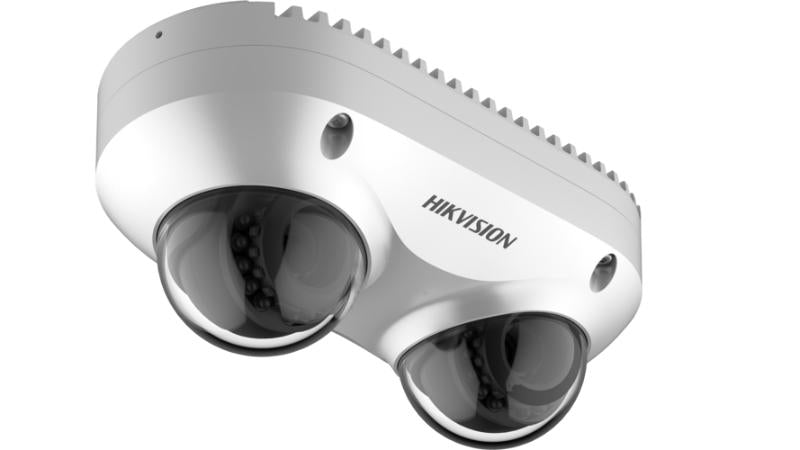

| Hikvision DS-2CD6924G0-HIS Specifications | |
|---|---|
| Camera Type | 8MP Dual-Lens Panoramic Network Camera (PanoVu Series) |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max Resolution | 3840 × 1080 (stitched panoramic view) |
| Lens Options | 2.8 mm dual lenses |
| Field of View | Horizontal: 180°, Vertical: ~90°, Diagonal: ~190° |
| Minimum Illumination | Color: 0.003 Lux @ (F1.2, AGC ON); 0 Lux with IR |
| IR Range | Up to 20 meters |
| WDR | 120 dB True WDR |
| Display Modes | Panorama, Original, Panorama + ePTZ, Divided Panorama |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Audio | 1 input, 1 output; G.711/G.722.1/G.726/MP2L2/PCM |
| Network Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP, SNMP, IGMP, IPv6, QoS, UPnP, 802.1X |
| Storage | microSD slot (up to 256 GB) |
| Power Supply | 12 VDC ±25%, PoE (802.3at) |
| Power Consumption | Max. 18 W |
| Ingress Protection | IP67 (weatherproof), IK10 (vandal-resistant) |
| Operating Temperature | -40 °C to 60 °C |
| Special Features | Built-in heater for ultra-low temperature startup |
