Description
Overview

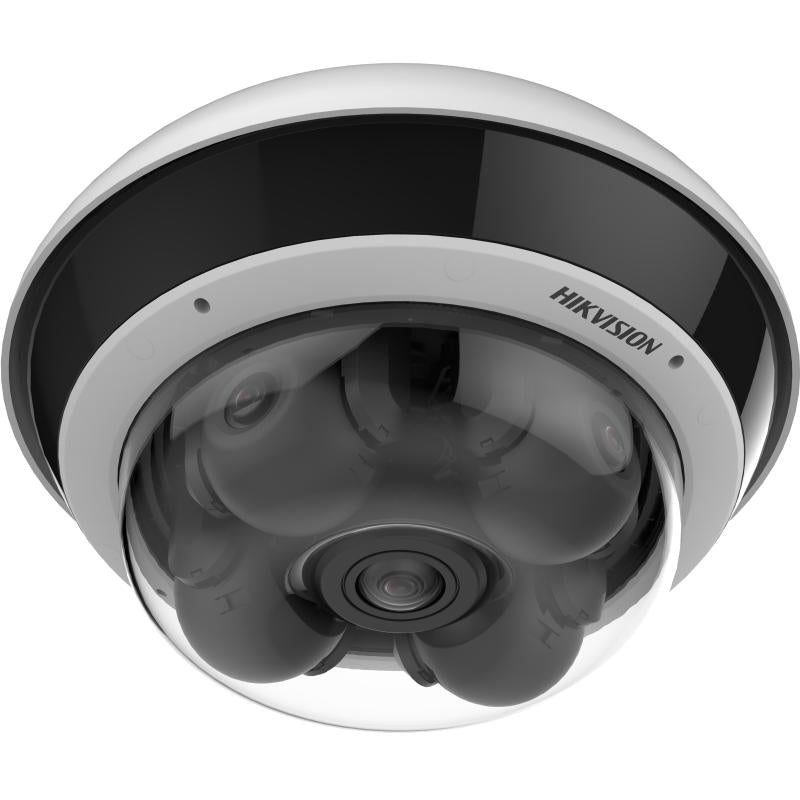

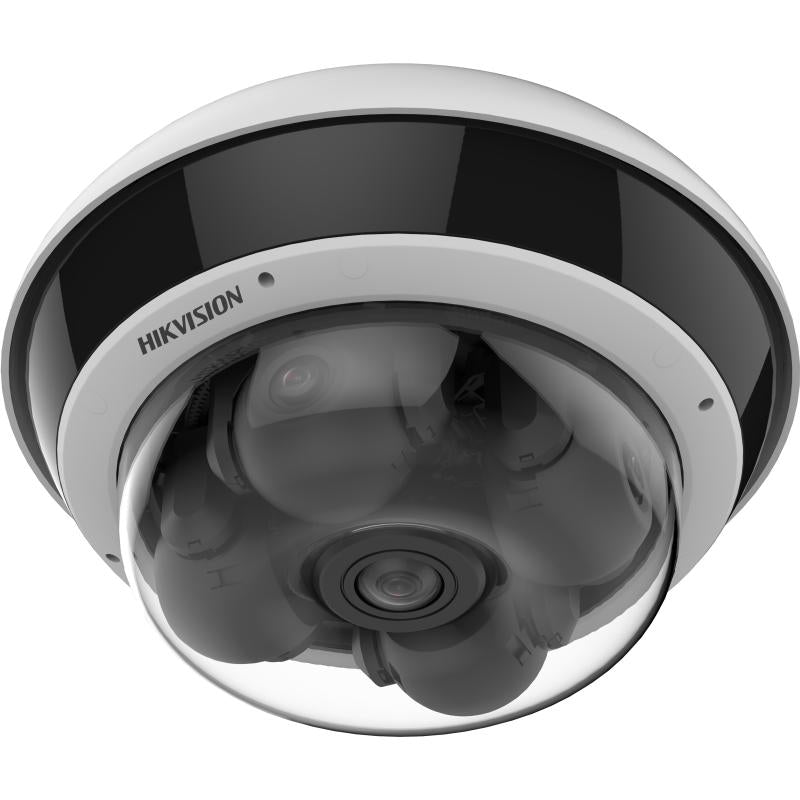

5-Directional Multisensor Network Camera
- 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
- Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67) and vandal proof (IK10)
- Human and vehicle target classification based on deep learning for up to 4 channels
- Unique PTRZ capability for efficient installation
- Audio and alarm interface available
- One more fixed lens to cover the area beneath the camera
5-Directional Multisensor Network Camera
- 4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted
- Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67) and vandal proof (IK10)
- Human and vehicle target classification based on deep learning for up to 4 channels
- Unique PTRZ capability for efficient installation
- Audio and alarm interface available
- One more fixed lens to cover the area beneath the camera
| Hikvision DS-2CD6D55G2-IZHS-8MM Specifications | |
|---|---|
| Model Number | DS-2CD6D55G2-IZHS-8MM |
| Camera Type | 5-Directional Multisensor Panoramic Network Camera |
| Image Sensor | 5 × 1/2.7″ Progressive Scan CMOS |
| Max Resolution | 2560 × 1440 per lens |
| Lens | 4 × motorized varifocal lenses (2.8–8 mm), 1 × fixed lens (2 mm) |
| Field of View | 360° panoramic coverage with adjustable tilt angles |
| Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); 0 Lux with IR |
| IR Range | Up to 30 meters per lens |
| WDR | 120 dB True WDR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Smart Features | Human/vehicle classification via deep learning (up to 4 channels) Motion detection Tampering alarm |
| Audio | Audio input/output supported |
| Alarm Interface | 1 input, 1 output |
| Storage | microSD slot (up to 256 GB) |
| Network Interface | 1 × RJ45 10/100/1000M Ethernet |
| Power Supply | 12 VDC ±25%, PoE+ (802.3at) |
| Power Consumption | Max. 25 W |
| Ingress Protection | IP67, IK10 |
| Operating Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
