Description
Overview

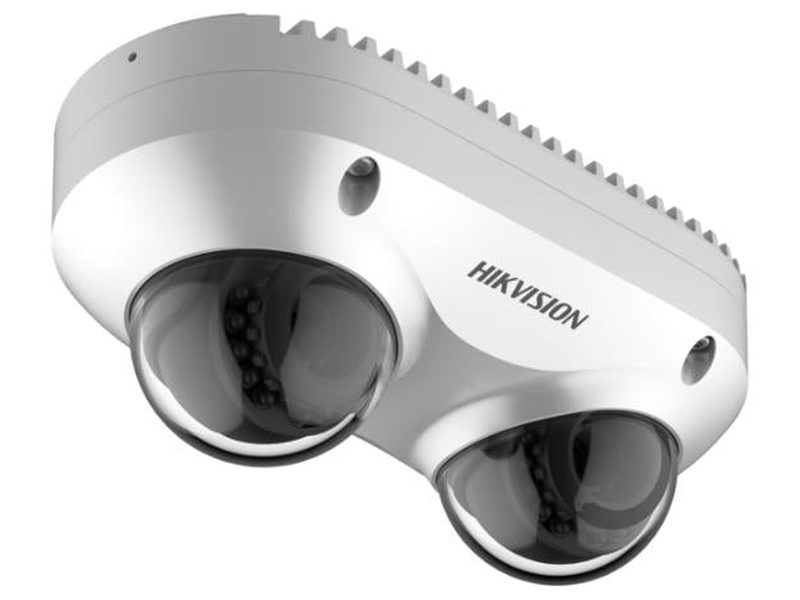

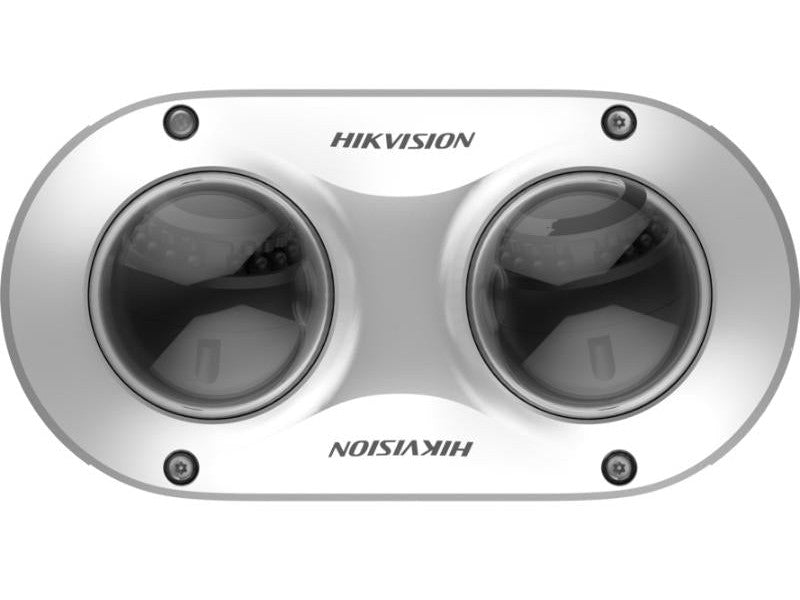

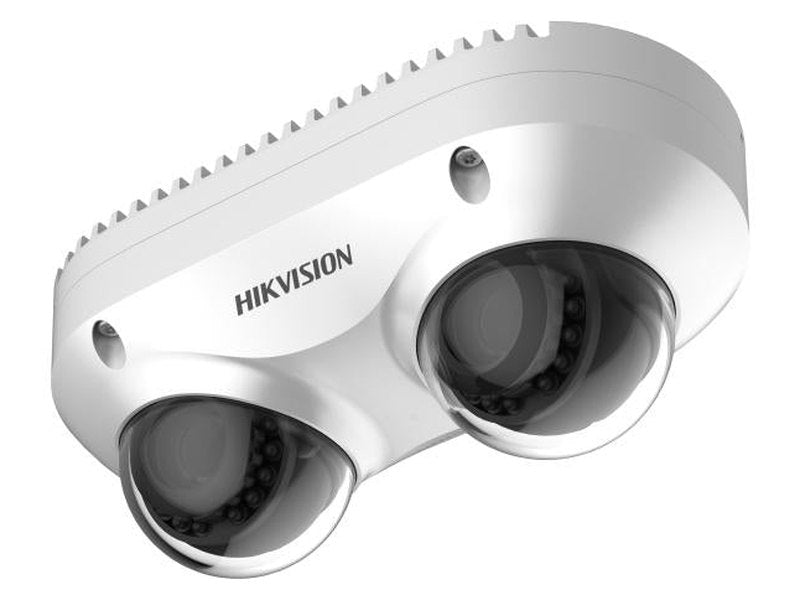

Dual-Directional PanoVu Camera
- High quality imaging with 4 MP resolution
- 3D DNR technology delivers clean and sharp images
- Supports 2-channel WDR to realize clear imaging against strong back light
- Efficient H.265 compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Built-in microphone for real-time audio security
- Easy installation with Power over Ethernet (PoE) technology
Dual-Directional PanoVu Camera
- High quality imaging with 4 MP resolution
- 3D DNR technology delivers clean and sharp images
- Supports 2-channel WDR to realize clear imaging against strong back light
- Efficient H.265 compression technology
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Built-in microphone for real-time audio security
- Easy installation with Power over Ethernet (PoE) technology
| Hikvision DS-2CD6D42G0-IS Specifications | |
|---|---|
| Model Number | DS-2CD6D42G0-IS |
| Camera Type | 4MP Dual-Directional PanoVu Network Camera |
| Image Sensor | 2 × 1/3″ Progressive Scan CMOS |
| Max Resolution | 2688 × 1520 per channel |
| Lens Options | 2.8 mm, 4 mm, or 6 mm fixed lens |
| Field of View (2.8 mm) | Horizontal: 98.2°, Vertical: 54.2°, Diagonal: 114.6° |
| Minimum Illumination | Color: 0.005 Lux @ (F1.2, AGC ON); B/W: 0.001 Lux; 0 Lux with IR |
| IR Range | Up to 20 meters |
| WDR | 120 dB True WDR |
| Shutter Speed | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Audio | Built-in microphone; real-time audio security |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Network Interface | 1 × RJ45 10/100M Ethernet |
| Power Supply | 12 VDC ±25%, PoE (802.3af) |
| Power Consumption | Max. 8 W |
| Ingress Protection | IP67, IK10 |
| Operating Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
