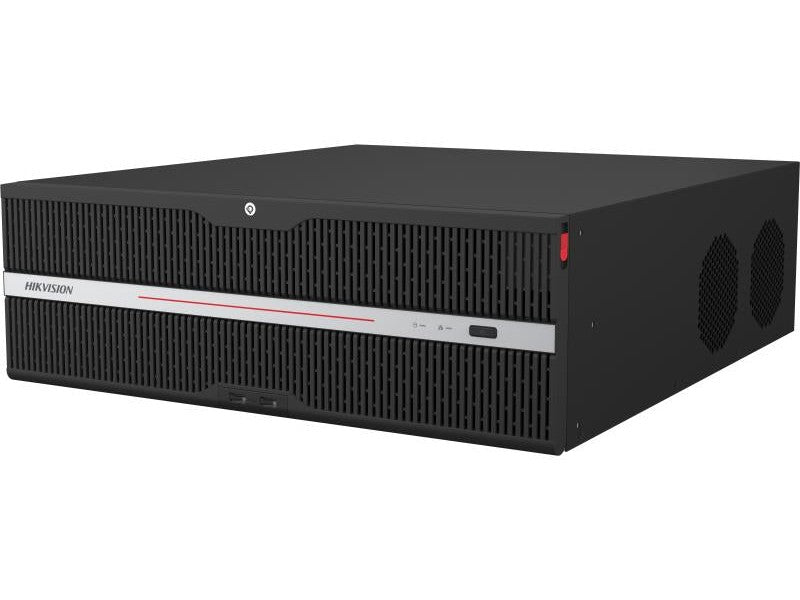

Hikvision S-Series 96128NXI-S16R 128CH NVR, 1280MBps, 8K, VGA/HDMI, 16 BAY, 3RU, RAID, NO

Overview

S Series NVR with AcuSense
- Up to 32×1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 128-ch IP cameras can be connected
- Intelligent analytics supports facial recognition, perimeter protection, video structuralization, AcuSearch
- Up to 8-ch IP speakers can be connected
- Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
- HDMI video output at up to 8K resolution
- Redundant power supply

Hikvision DS-96128NXI-S16R Specifications
Video and AI Analytics
IP Camera Inputs	128 channels
Max Decoding Capability	32-ch @ 1080p
Video Compression	H.265+/H.265/H.264+/H.264
AI Features	AcuSense (perimeter protection, motion detection 2.0) Facial recognition (up to 16-ch) Video structuralization AcuSearch (text-based search) Face picture comparison and search Face library: 64 libraries, 300,000 images, 10 GB total
Display Output
HDMI Output	Up to 8K (7680 × 4320)
VGA Output	Supported
CVBS Output	Supported
Storage
RAID Support	RAID 0, 1, 5, 6, 10 + N+M hot spare
HDD Bays	16 internal SATA interfaces
Max Capacity	Up to 20 TB per HDD
Network
Network Interface	Multiple Gigabit Ethernet ports
Remote Connections	Up to 128
IP Speaker Support	Up to 8 channels
Auxiliary Interfaces
USB Ports	Front and rear USB 2.0 / 3.0
Alarm I/O	Configurable (varies by model)
Audio I/O	Supported
General
Chassis	3U rack-mount
Power Supply	Redundant PSU
Operating Temperature	-10 °C to 55 °C
Humidity	10% to 90%
Certification
Compliance	CE, FCC, RoHS EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035
