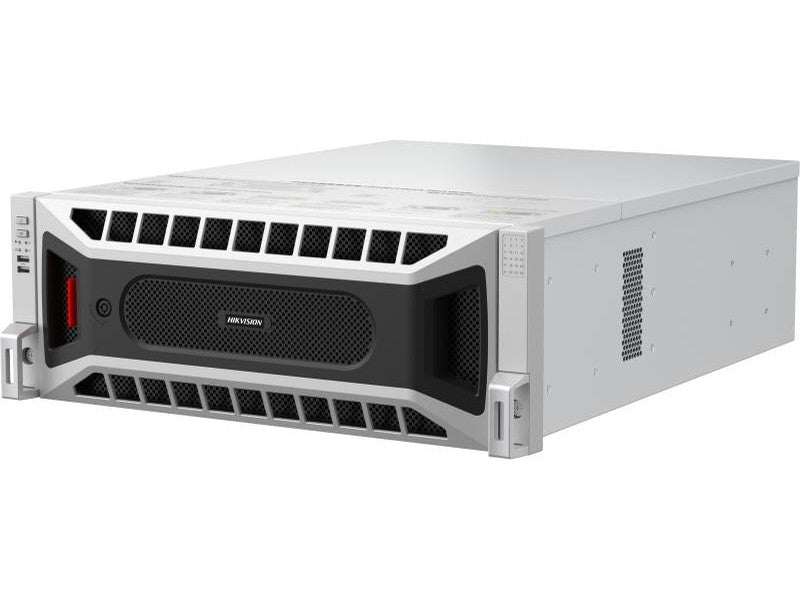

Hikvision S Series 96256NXI-S24R, 256CH NVR, FACIAL REG, 1024MBps, 24BAY,RAID, 5YR

Overview

S Series NVR with AcuSense
- Up to 32×1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 256-ch IP cameras can be connected
- Intelligent analytics supports facial recognition, perimeter protection, video structuralization, AcuSearch
- Up to 8-ch IP speakers can be connected
- Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
- HDMI video output at up to 8K resolution
- Redundant power supply

Hikvision DS-96256NXI-S24R Specifications
Video and AI Analytics
IP Camera Inputs	Up to 256 channels
Max Decoding Capability	32-ch @ 1080p
Video Compression	H.265+/H.265/H.264+/H.264
AI Features	AcuSense (perimeter protection, motion detection 2.0) Facial recognition Video structuralization AcuSearch (text-based search) Face picture comparison and search
Display Output
HDMI Output	Up to 8K (7680 × 4320)
VGA Output	Supported
CVBS Output	Supported
Storage
SATA Interfaces	24 × SATA bays
Max Capacity	Up to 480 TB total
RAID Support	RAID 0, 1, 5, 6, 10 + N+M hot spare
Network
Network Interface	Multiple Gigabit Ethernet ports
Remote Connections	Up to 128
IP Speaker Support	Up to 8 channels
Auxiliary Interfaces
USB Ports	Front and rear USB 2.0 / 3.0
Alarm I/O	Configurable (varies by model)
Audio I/O	Supported
General
Chassis	Enterprise-grade rackmount
Power Supply	Redundant PSU
Operating Temperature	-10 °C to 55 °C
Humidity	10% to 90%
Certification
Compliance	CE, FCC, RoHS EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035
