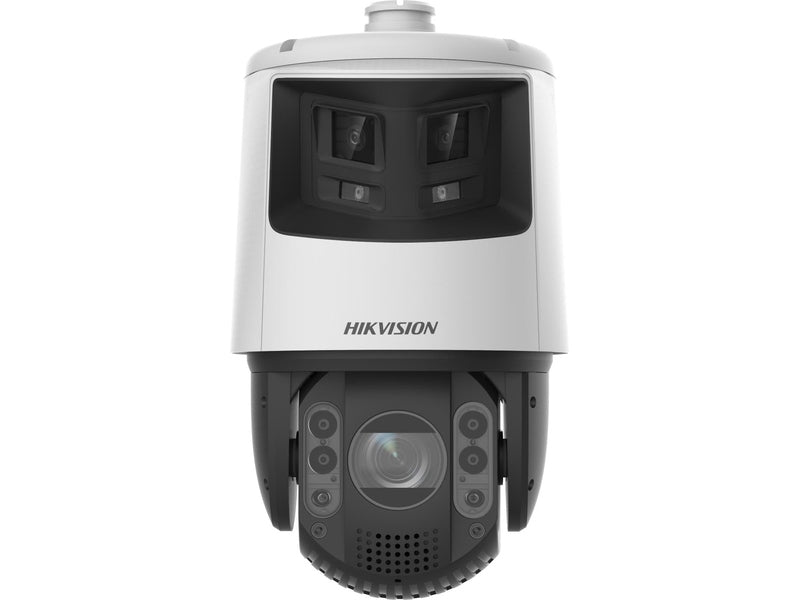

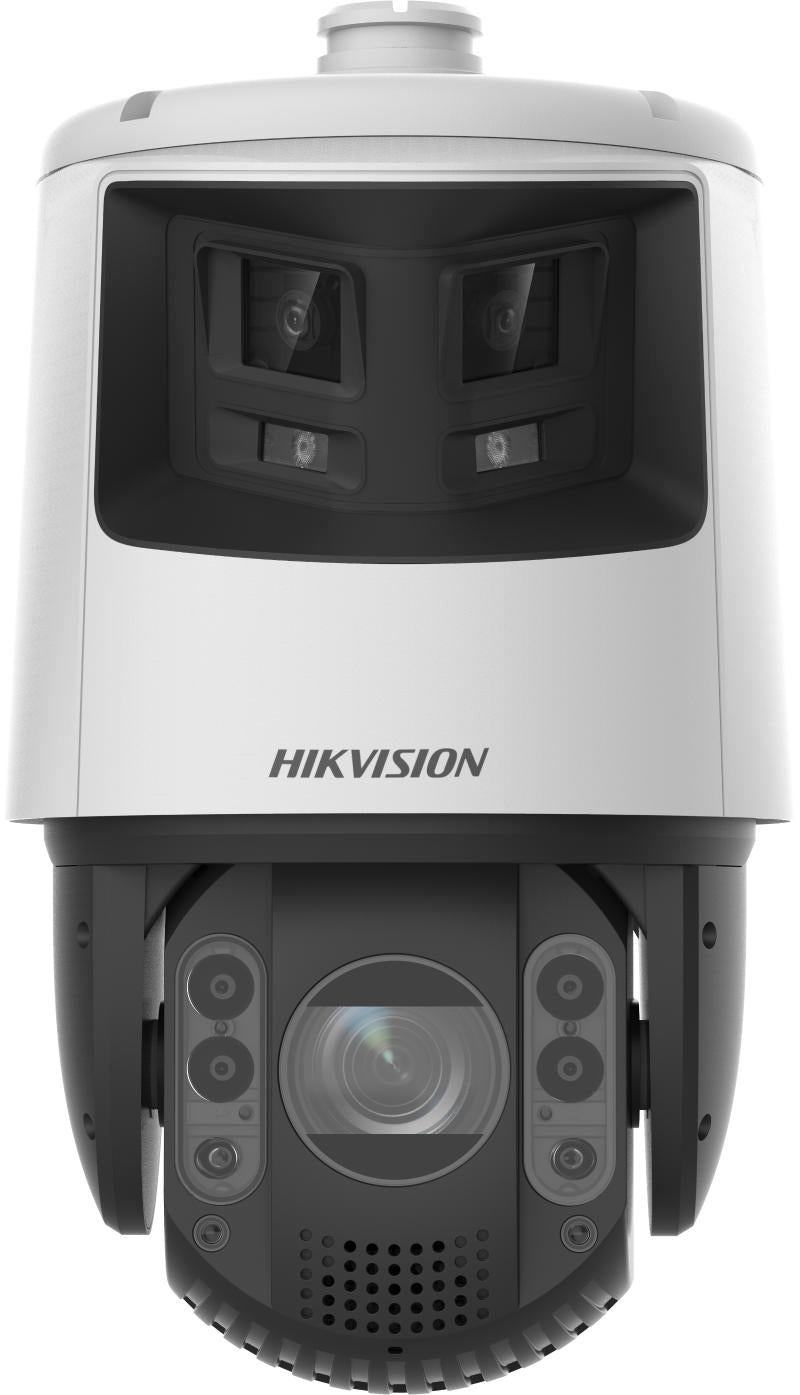

TandemVu 6+4 MP 32X ColorVu & IR Acusense Panoramic Network Speed Dome
- Panoramic channel supports image stitching, with 180° horizontal field of view
- High quality imaging with 6 MP resolution in panoramicand channel and 4 MP resolution in PTZ channel
- Secures an expansive area with 32 × optical zoom and 16 × digital zoom
- AcuSense technology focuses on human and vehicle targets classification and supports face capture to detect, capture and select faces in motion
- Expansive night view with up to 200 m IR distance in PTZ channel and 30 m white light in panoramic channel
- Active strobe light and audio alarm to warn intruders off
- Smart-linkage between panoramic channel and PTZ channel
TandemVu 6+4 MP 32X ColorVu & IR Acusense Panoramic Network Speed Dome
- Panoramic channel supports image stitching, with 180° horizontal field of view
- High quality imaging with 6 MP resolution in panoramicand channel and 4 MP resolution in PTZ channel
- Secures an expansive area with 32 × optical zoom and 16 × digital zoom
- AcuSense technology focuses on human and vehicle targets classification and supports face capture to detect, capture and select faces in motion
- Expansive night view with up to 200 m IR distance in PTZ channel and 30 m white light in panoramic channel
- Active strobe light and audio alarm to warn intruders off
- Smart-linkage between panoramic channel and PTZ channel
Hikvision DS-2SE7C432MWG-EB/26 Specifications | |
---|---|
Model Number | DS-2SE7C432MWG-EB/26 (F0) |
Camera Type | 6MP + 4MP TandemVu Panoramic & PTZ Network Speed Dome |
Panoramic Module | 6 MP, 1/2.5″ CMOS, 2.8 mm lens, 180° horizontal FOV, image stitching supported |
PTZ Module | 4 MP, 1/2.8″ CMOS, 5.9–188.8 mm lens, 32× optical zoom, 16× digital zoom |
Resolution | Panoramic: 3072 × 2048 @ 30 fps PTZ: 2560 × 1440 @ 30 fps |
Field of View | Panoramic: Horizontal 180° PTZ: Horizontal 60.2°–2.3°, Vertical 35.6°–1.3° |
Minimum Illumination | Color: 0.005 Lux @ (F1.5, AGC ON); 0 Lux with IR |
IR Range | PTZ: up to 200 m |
White Light | Panoramic: up to 30 m |
WDR | 120 dB True WDR |
Pan & Tilt | Pan: 360°, Tilt: -15° to 90°, Auto Flip |
Smart Features | Human/vehicle classification via AcuSense Face capture Smart tracking Active strobe light and audio alarm Smart linkage between panoramic and PTZ modules |
Audio | Built-in microphone and speaker; two-way audio |
Storage | microSD slot (up to 512 GB) |
Network Interface | 1 × RJ45 10/100M Ethernet |
Video Compression | H.265+, H.265, H.264+, H.264 |
Power Supply | 24 VAC or Hi-PoE |
Power Consumption | Max. 30 W |
Ingress Protection | IP66 |
Operating Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
