Overview

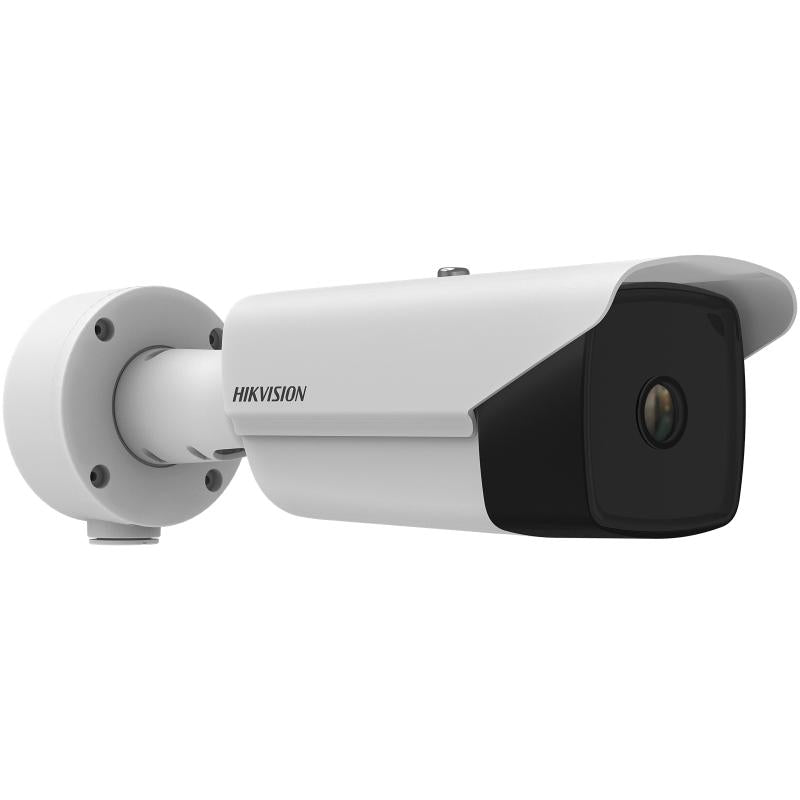

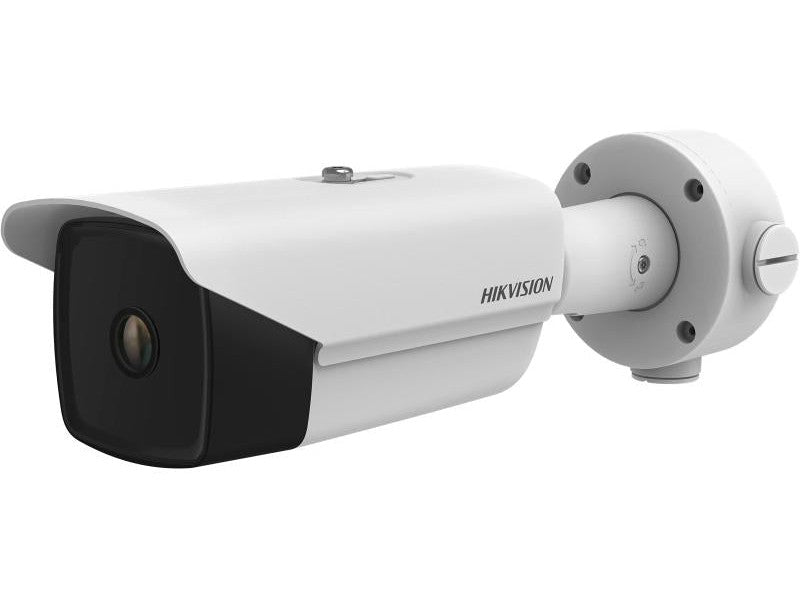

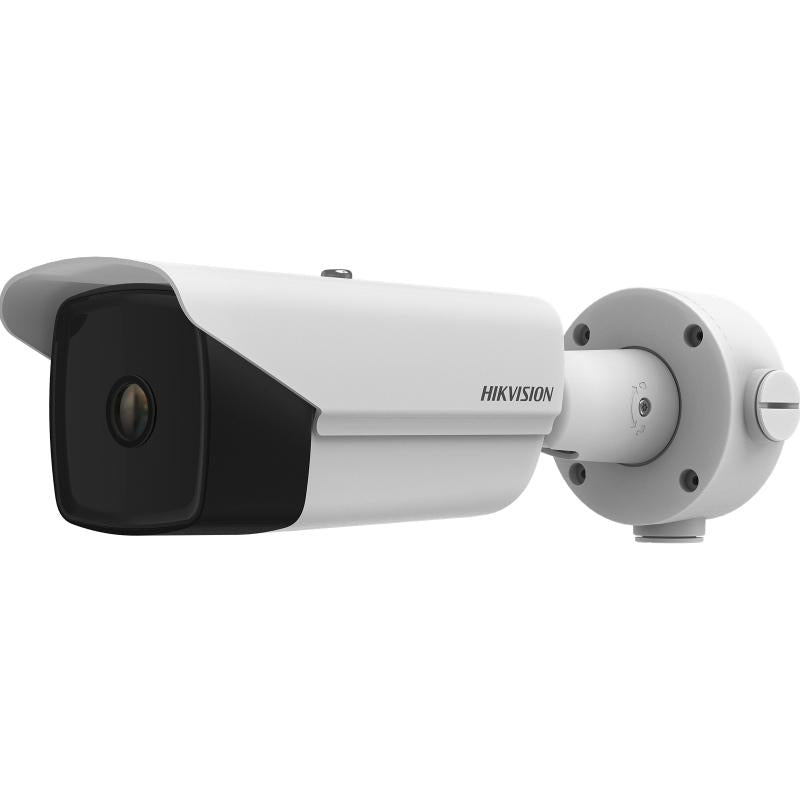

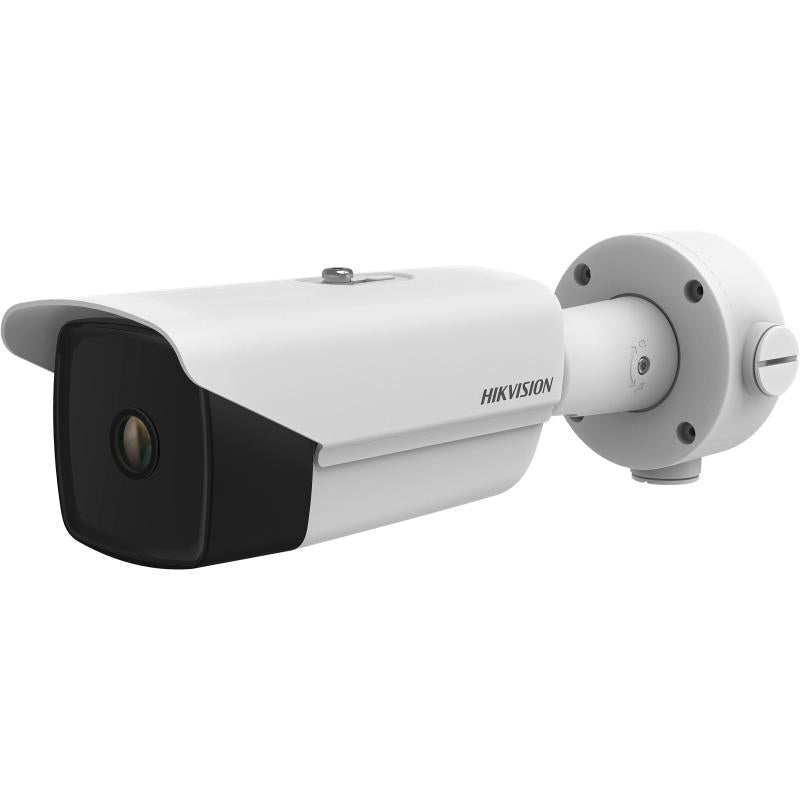

Thermographic Network Bullet Camera
- 384 × 288 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max (± 2°C, ± 2%)
- Smoking detection Algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
Thermographic Network Bullet Camera
- 384 × 288 resolution, 17 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max (± 2°C, ± 2%)
- Smoking detection Algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
| Hikvision DS-2TD2137T-4/QY Specifications | |
|---|---|
| Model Number | DS-2TD2137T-4/QY |
| Camera Type | Thermographic Network Bullet Camera |
| Thermal Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 384 × 288 pixels |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm to 14 μm |
| NETD | ≤ 35 mK (@ 25 °C, F1.0) |
| Thermal Lens | 4.4 mm focal length |
| IFOV | 3.86 mrad |
| Temperature Measurement Range | -20 °C to 550 °C |
| Temperature Accuracy | ±2 °C or ±2% (whichever is greater) |
| Smart Features | Temperature exception alarm Fire and smoking detection Human/vehicle classification Line crossing, intrusion, region entrance/exit |
| Image Processing | Linear, histogram, self-adaptive AGC, DDE, 3D DNR |
| Audio | Audio input/output supported |
| Storage | microSD slot (up to 256 GB) |
| Network Interface | 1 × RJ45 10/100M Ethernet |
| Power Supply | 12 VDC ±25%, PoE (802.3af) |
| Power Consumption | Max. 7 W |
| Ingress Protection | IP66 |
| Operating Conditions | -30 °C to 60 °C, ≤ 95% RH (non-condensing) |
