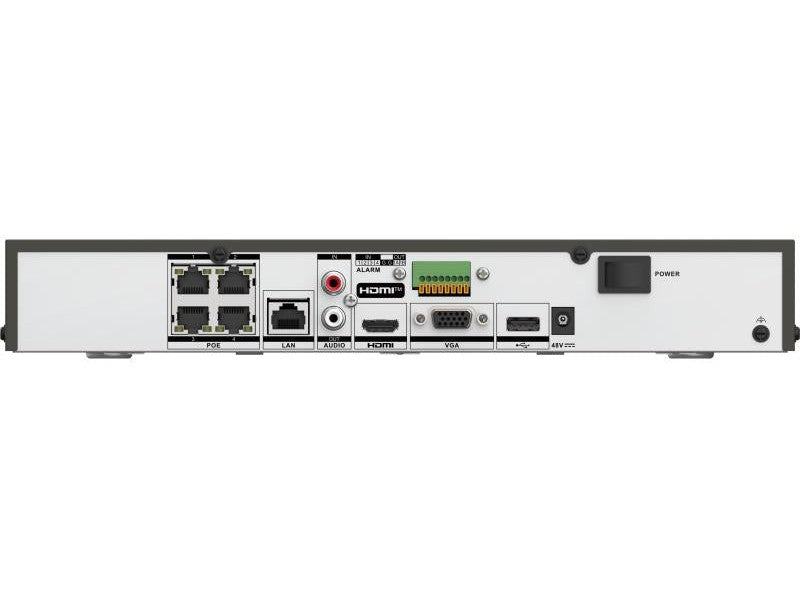

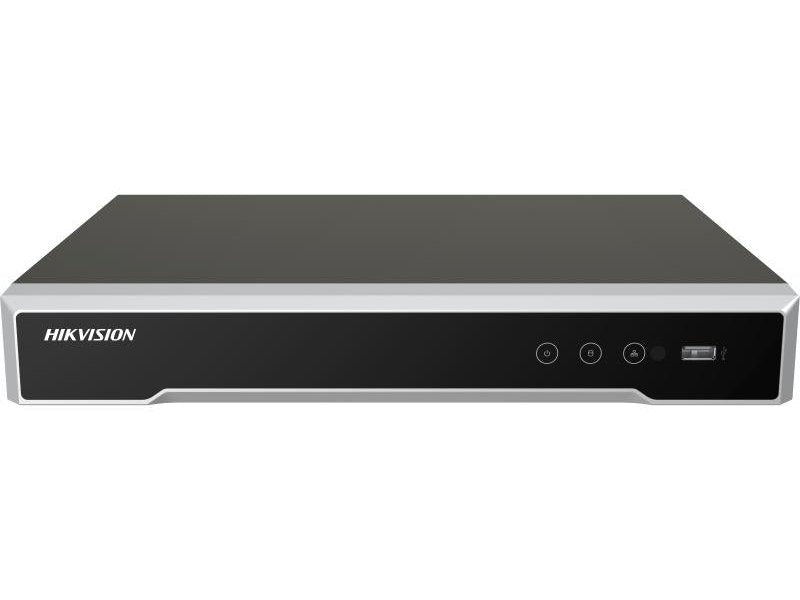

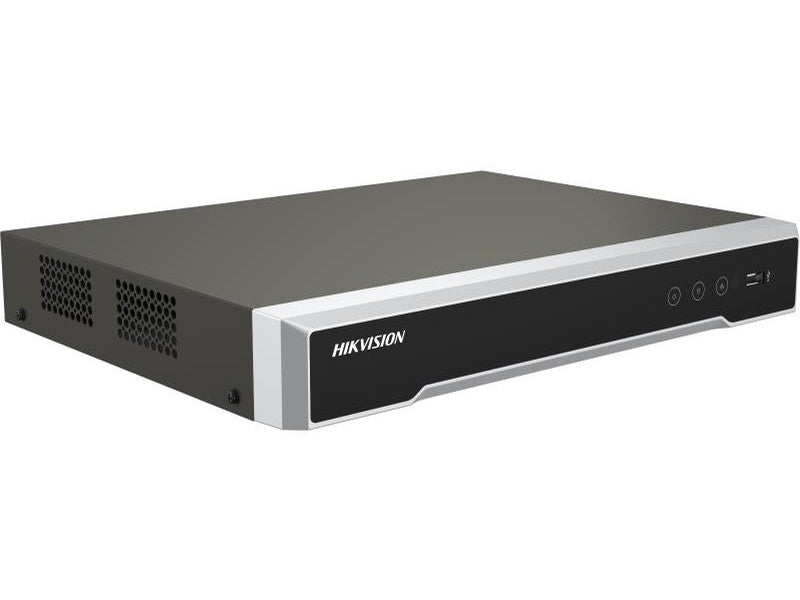

Hikvision Ultra 7604NI-M1 4CH NVR, 4K, POE(4), 1xHDD, 12MP, 3YR

Overview

- 4-ch 1U 4K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 4-ch IP camera inputs
- Up to 4-ch@8 MP decoding capacity
- Up to 40 Mbps incoming bandwidth

Hikvision DS-7604NI-M1-4P Specifications
Video and Audio
IP Video Input	4-ch, up to 32 MP resolution
Incoming Bandwidth	40 Mbps
Outgoing Bandwidth	80 Mbps
HDMI Output	8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
VGA Output	1920 × 1080/60Hz
Video Output Mode	HDMI/VGA independent output
CVBS Output	NA
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Dual-Stream Recording	Supported
Decoding Format	H.265+/H.265/H.264+/H.264
Decoding Capability	4-ch @ 8 MP (30 fps) 8-ch @ 4 MP (30 fps) 16-ch @ 1080p (30 fps)
Synchronous Playback	4-ch
Recording Resolution	32 MP / 24 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2
Network
Remote Connection	128
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface	1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface	4 × RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	≤ 60 W
Standard	IEEE 802.3 af/at
Auxiliary Interface
SATA	1 SATA interface
Capacity	Up to 16 TB per HDD
Alarm In/Out	4 / 1
USB Interface	Front: 1 × USB 2.0; Rear: 1 × USB 2.0
General
Power Supply	48 VDC, 1.875 A
Consumption	≤ 15 W (without HDD and PoE off)
Working Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Working Humidity	10% to 90%
Dimensions (W × D × H)	320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight	≤ 1.2 kg (without HDD, 2.6 lb.)
Certification
CE	EN 55032:2015+A1:2020 ENIEC61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A1:2019 EN 50130-4:2011+A1:2014 EN 55035:2017+A11:2020
