Description
Overview

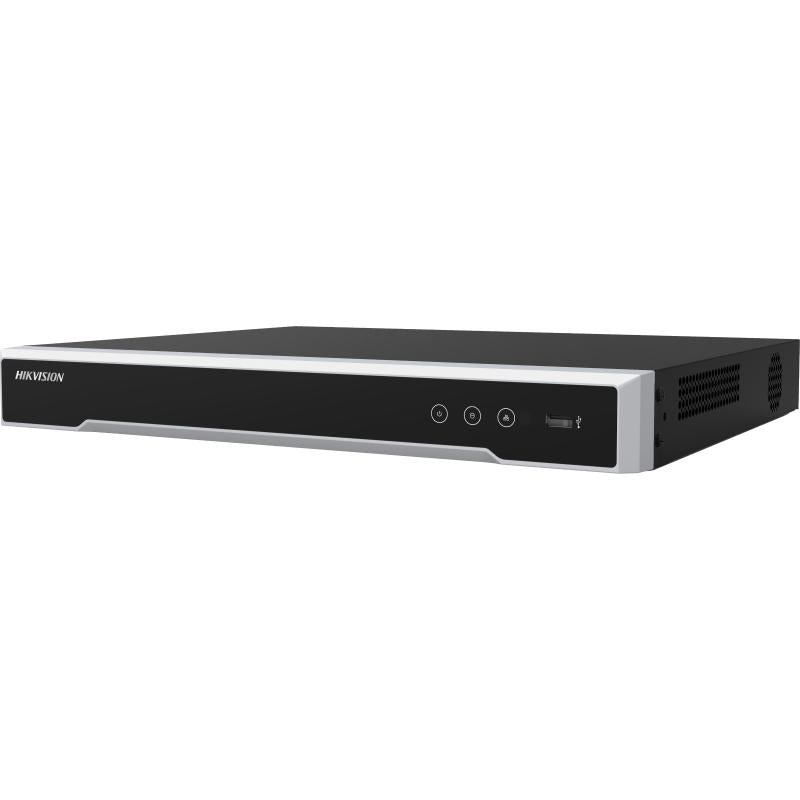

8-ch 1U 8 PoE 8K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 8-ch IP camera inputs
- Up to 8-ch@8 MP decoding capacity
- Up to 128 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
8-ch 1U 8 PoE 8K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 8-ch IP camera inputs
- Up to 8-ch@8 MP decoding capacity
- Up to 128 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
| Hikvision DS-7608NI-M2-8P-4TB-M Specifications | |
|---|---|
| Video and Audio | |
| IP Video Input | 8-ch, up to 32 MP resolution |
| Incoming Bandwidth | 128 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Decoding Capability | Up to 8-ch @ 8 MP |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Audio Input/Output | Supports two-way audio |
| Display Output | |
| HDMI Output | 8K (7680 × 4320) @ 30Hz 4K (3840 × 2160) @ 60Hz / 30Hz 2K (2560 × 1440) @ 60Hz 1080p (1920 × 1080) @ 60Hz |
| VGA Output | 1920 × 1080 @ 60Hz |
| CVBS Output | 1-ch |
| Video Output Mode | HDMI/VGA independent output |
| Storage | |
| Preinstalled HDD | 4 TB |
| SATA Interfaces | 2 × SATA ports |
| Max Capacity | Up to 16 TB per HDD (32 TB total) |
| Network | |
| Remote Connections | Up to 128 |
| Network Interface | 1 × RJ-45 10/100/1000 Mbps Ethernet |
| PoE Ports | 8 × RJ-45 10/100 Mbps (IEEE 802.3 af/at) |
| Auxiliary Interfaces | |
| USB Ports | Front: 1 × USB 2.0, Rear: 1 × USB 2.0 |
| Alarm I/O | 4 in / 1 out |
| General | |
| Power Supply | 100–240 VAC |
| Power Consumption | ≤ 15 W (without HDD) |
| Operating Temperature | -10 °C to 55 °C |
| Humidity | 10% to 90% |
| Dimensions (W × D × H) | 320 × 240 × 48 mm |
| Weight | Approx. 1.2 kg (without HDD) |
| Certification | |
| Compliance | CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
