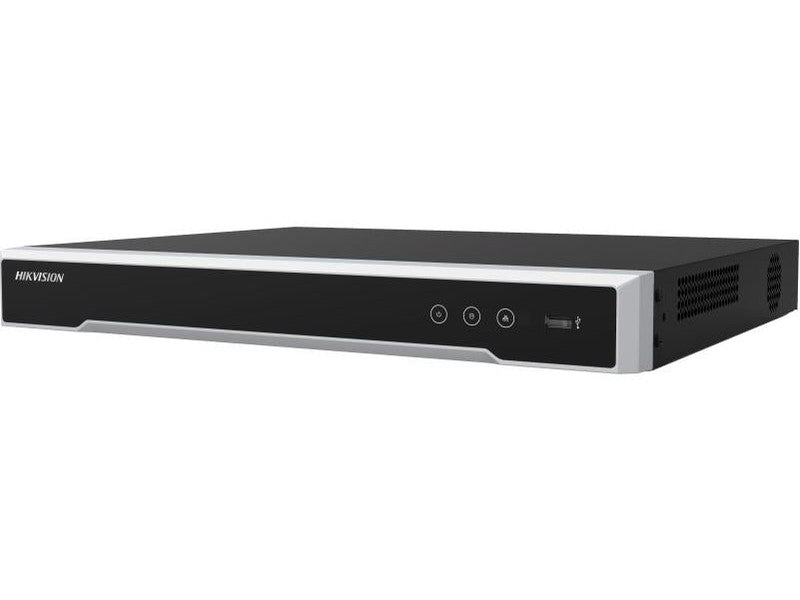

Hikvision Ultra 7616NI-M2 16CH M- NVR, 8K, 2xHDD, 1x4TB, 32MP, 3YR

HikvisionSKU: DS-7616NI-M2-16P-4TB

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$1,187.00
Contact Us for ETA

Estimate shipping

Description

Overview

16-ch 1U 16 PoE 8K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16-ch IP camera inputs
- Up to 16-ch@4MP decoding capacity
- Up to 256 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected

Hikvision DS-7616NI-M2-16P-4TB Specifications
Video and Audio
IP Video Input 16-ch, up to 32 MP resolution
Decoding Capability Up to 16-ch @ 4 MP
Video Compression H.265+/H.265/H.264+/H.264
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 256 Mbps
Display Output
HDMI Output 8K (7680 × 4320) @ 30Hz
4K (3840 × 2160) @ 60Hz / 30Hz
2K (2560 × 1440) @ 60Hz
1080p (1920 × 1080) @ 60Hz
VGA Output 1920 × 1080 @ 60Hz
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω)
Video Output Mode HDMI/VGA independent output
Storage
Preinstalled HDD 4 TB
SATA Interfaces 2 × SATA ports
Max Capacity Up to 14 TB per HDD
Network
Remote Connections Up to 128
Network Interface 1 × RJ-45 10/100/1000 Mbps
PoE Ports 16 × RJ-45 10/100 Mbps (IEEE 802.3 af/at)
Auxiliary Interfaces
USB Ports Front: 1 × USB 2.0, Rear: 1 × USB 2.0
Alarm I/O 4 in / 1 out
General
Power Supply 100–240 VAC
Power Consumption ≤ 15 W (without HDD and PoE off)
Operating Temperature -10 °C to 55 °C
Humidity 10% to 90%
Dimensions (W × D × H) 385 × 315 × 52 mm
Weight ≤ 2 kg (without HDD)
Certification
Compliance CE: EN 55032:2015+A1:2020
ENIEC61000-3-2:2019+A1:2021
EN 61000-3-3:2013+A1:2019
EN 50130-4:2011+A1:2014
EN 55035:2017+A11:2020
