Description
Overview

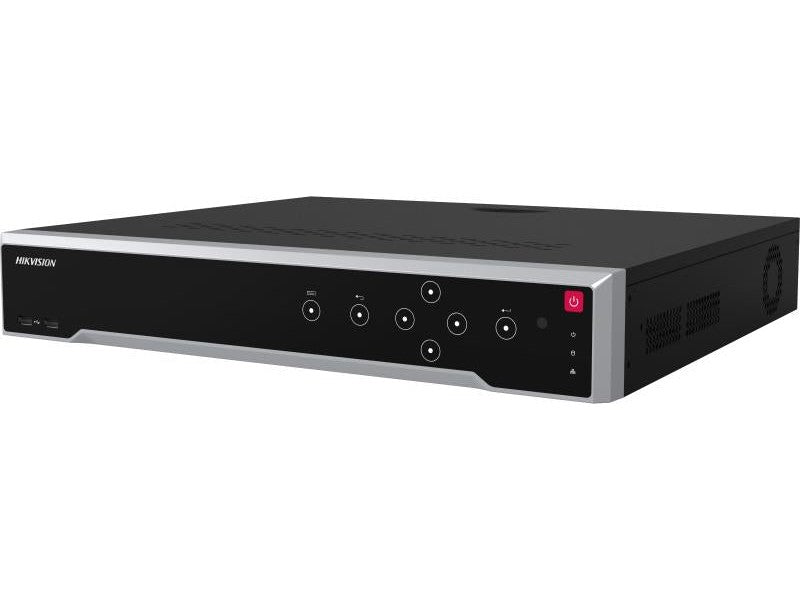

32-ch 1.5U 16 PoE 8K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32-ch IP camera inputs
- Up to 32-ch@1080p decoding capacity
- Up to 320 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
32-ch 1.5U 16 PoE 8K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32-ch IP camera inputs
- Up to 32-ch@1080p decoding capacity
- Up to 320 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
| Hikvision DS-7732NI-M4-16P Specifications | |
|---|---|
| Video and Audio | |
| IP Video Input | 32-ch, up to 32 MP resolution |
| Decoding Capability | Up to 32-ch @ 1080p |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 400 Mbps |
| Display Output | |
| HDMI 1 Output | 8K (7680 × 4320) @ 30Hz 4K (3840 × 2160) @ 60Hz / 30Hz 2K (2560 × 1440) @ 60Hz 1080p (1920 × 1080) @ 60Hz |
| HDMI 2 Output | 4K (3840 × 2160) @ 60Hz / 30Hz 2K (2560 × 1440) @ 60Hz 1080p (1920 × 1080) @ 60Hz |
| VGA Output | 1920 × 1080 @ 60Hz |
| CVBS Output | 1-ch, BNC |
| Video Output Mode | HDMI/VGA independent output |
| Storage | |
| SATA Interfaces | 4 × SATA ports |
| Max Capacity | Up to 14 TB per HDD |
| Network | |
| Remote Connections | Up to 128 |
| Network Interface | 2 × RJ-45 10/100/1000 Mbps |
| PoE Ports | 16 × RJ-45 10/100 Mbps (IEEE 802.3 af/at) |
| Auxiliary Interfaces | |
| USB Ports | Front: 1 × USB 2.0, Rear: 1 × USB 3.0 |
| Alarm I/O | 16 in / 9 out |
| Audio I/O | 1 in / 1 out (RCA) |
| General | |
| Power Supply | 100–240 VAC |
| Power Consumption | ≤ 25 W (without HDD and PoE off) |
| Operating Temperature | -10 °C to 55 °C |
| Humidity | 10% to 90% |
| Dimensions (W × D × H) | 445 × 400 × 71 mm |
| Weight | ≤ 5 kg (without HDD) |
| Certification | |
| Compliance | CE, FCC, RoHS EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035 |
