Description
Overview

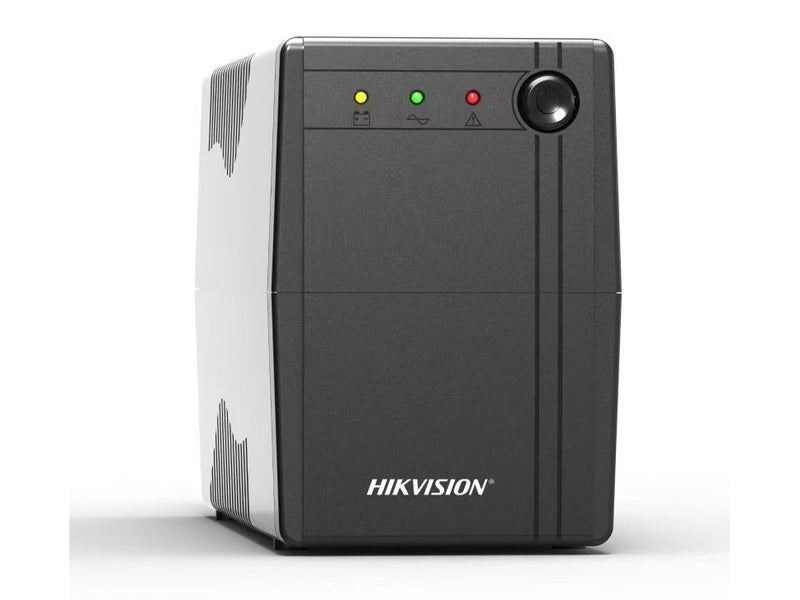

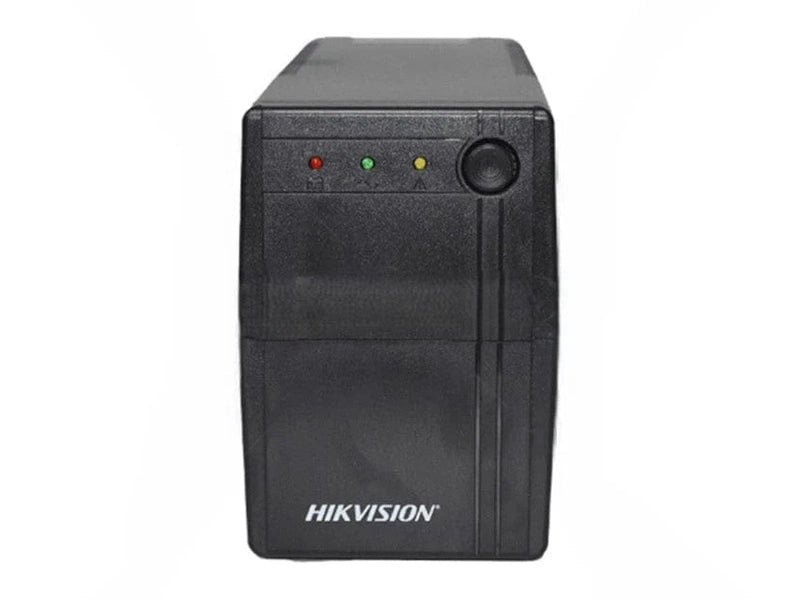

DS-UPS1000
UPS
- Wide input voltage range
- Built-in AVR
- Super fast charging
- Overload and short circuit protection
- Compact design
DS-UPS1000
UPS
- Wide input voltage range
- Built-in AVR
- Super fast charging
- Overload and short circuit protection
- Compact design
| Hikvision DS-UPS1000-AU Specifications | |
|---|---|
| Model Number | DS-UPS1000-AU |
| UPS Capacity | 1000 VA / 600 W |
| Input Voltage Range | 140–290 VAC (wide range); 85–150 VAC (narrow range) |
| Input Frequency | 50/60 Hz (self-adaptive) |
| Plug Type | UK Type G, Type B (NEMA 5-15), Schuko |
| Output Voltage Range | 210–235 VAC; 110–125 VAC |
| Output Frequency | 50/60 Hz ± 0.5 Hz (self-adaptive) |
| Transfer Time | ≤ 10 ms |
| Waveform | PWM |
| Outlet Type | Universal |
| Outlet Quantity | 2 |
| Battery Type | 12V / 9Ah lead-acid |
| Recharge Time | 4–6 hours to 90% capacity |
| Protection Features | Overload, short circuit, surge, discharge, overcharge |
| Indicators | LED (green/red/yellow); audible alarms for charging, low battery, overload, fault |
| Backup Time | Approx. 90 minutes for 49W load (1 NVR + 4 IPC + 1 switch + 2 HDD) |
| Dimensions (L × W × H) | 274 × 95 × 139 mm |
| Weight | Approx. 5.4 kg |
| Operating Temperature | 0°C to 40°C |
| Humidity | 30% to 90% (non-condensing) |
