Description
Overview

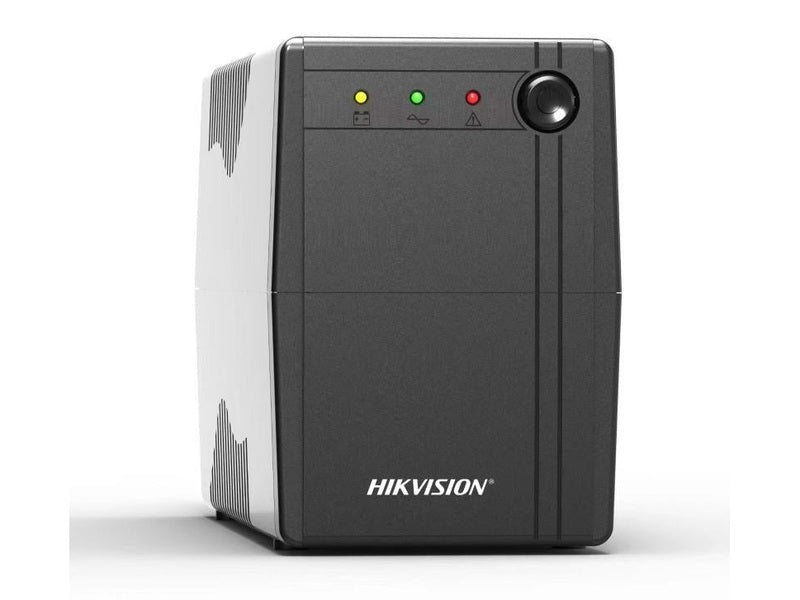

DS-UPS600
Oversea UPS
- Built-in AVR
- Super fast charging
- Wide input voltage range
- Overload protection
- Short circuit protection
- Surge protection
DS-UPS600
Oversea UPS
- Built-in AVR
- Super fast charging
- Wide input voltage range
- Overload protection
- Short circuit protection
- Surge protection
| Hikvision DS-UPS600-AU Specifications | |
|---|---|
| Model Number | DS-UPS600-AU |
| UPS Capacity | 600 VA / 360 W |
| Input Voltage Range | 140–290 VAC |
| Input Frequency | 50/60 Hz (self-adaptive) |
| Plug Type | AU Type I |
| Output Voltage Range | 210–235 VAC |
| Output Frequency | 50/60 Hz ± 0.5 Hz |
| Transfer Time | ≤ 10 ms |
| Waveform | PWM |
| Outlet Type | AU Type I |
| Outlet Quantity | 2 |
| Battery Type | 12V / 7Ah lead-acid |
| Recharge Time | 4–6 hours to 90% capacity |
| Typical Backup Time | 35 min @ 60W, 20 min @ 100W, 3 min @ 200W |
| Protection Features | Overload, short circuit, surge, discharge, overcharge |
| Indicators | LED (green/red/yellow); audible alarms |
| Dimensions (L × W × H) | 274 × 95 × 139 mm |
| Weight | Approx. 4.2 kg |
| Operating Temperature | 0°C to 40°C |
| Humidity | 30% to 90% (non-condensing) |
