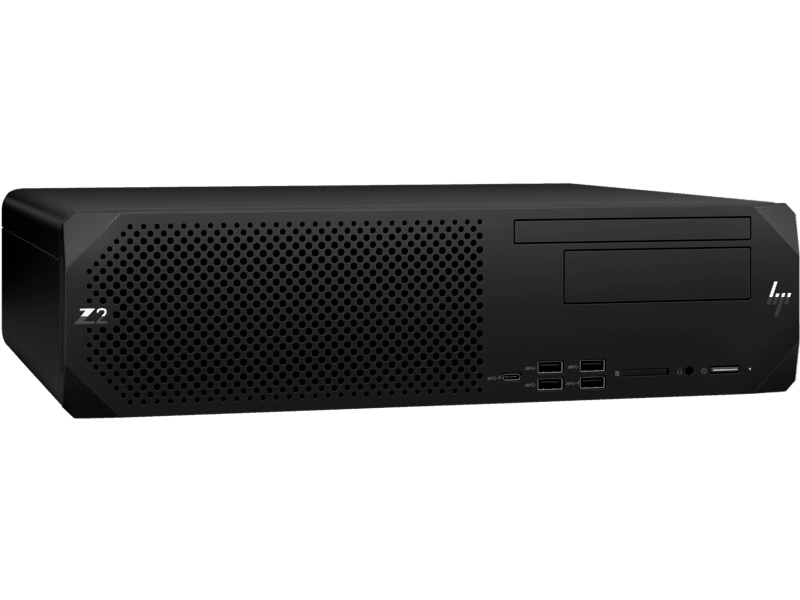

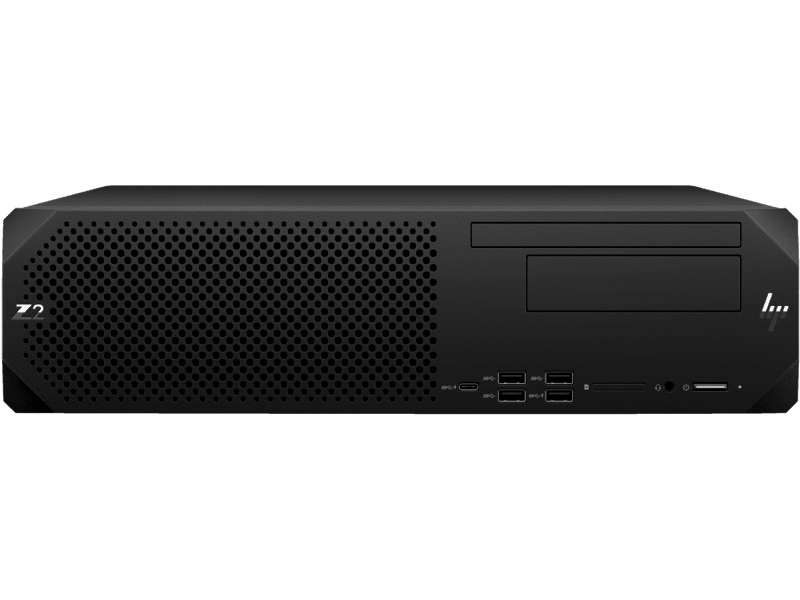

HP Z2 Small Form Factor G9 Workstation (A1NT5PT)
Full height, full length performance
Design, simulate and real time ray trace on a Z SFF -- FHFL pro graphics and Intel® Core™ processors.
Configurable for today. Expandable for tomorrow.
Accelerate your current workflow with options across processor, graphics, memory, storage, and I/O ports.
ISV Certified
Work with confidence knowing your PC is certified with leading software applications to ensure peak performance.
Specifications
| Operating system |
Windows 11 Pro |
|---|---|
| Processor family |
Intel® Core™ i9 14th generation processor |
| Processor |
Intel® Core™ i9-14900 (up to 5.4 GHz Max Turbo frequency, 36 MB L3 cache, 24 cores, 32 threads) |
| Graphics |
Discrete, NVIDIA RTX™ A2000 (12 GB GDDR6 dedicated) |
| Memory |
32 GB DDR5-4800 MHz RAM (1 x 32 GB) |
| Internal Storage |
1 TB PCIe® Gen4 M.2 SSD |
| Hard drive (2nd) |
1 TB PCIe® Gen4 M.2 SSD |
| Minimum dimensions (W x D x H) |
38.4 x 30.8 x 10 cm (Standard desktop orientation.) |
| Weight |
Starting at 5.0 kg (Exact weights depend upon configuration (System weight only)) |
| Management features |
HP Driver Packs; HP Management Integration Kit for Microsoft System Center Configuration Management Gen4; HP System Software Manager (download); HP BIOS Configuration Utility (download) 4 |
| Wireless |
Intel® Wi-Fi 6E AX211 (2x2) and Bluetooth® 5.3 wireless card (supporting gigabit data rate) |
| Keyboard |
HP 125 Wired Keyboard |
| Audio |
Realtek ALC3252 |
| Pointing device |
HP 125 Wired Mouse |
| Expansion slots |
1 half-height PCle 4 x16; 1 half-height PCle 3 x4; 1 half-height PCle 3 x4 (x16 connector); 1 half-height PCle 3 x1; 1 full-height PCle 4 x16; 1 full-height PCle 4 x16 (x16 connector) (1 M.2 2230 slot for WLAN and 3 M.2 2280 slots for storage) |

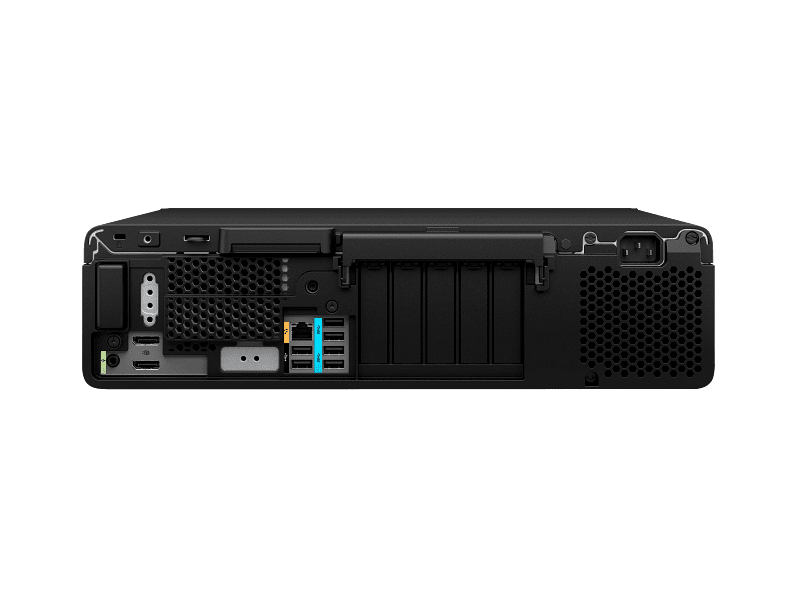

| Ports |
Front 1 SuperSpeed USB Type-C® 20Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge); 4 SuperSpeed USB Type-A 10Gbps signaling rate (1 charging); 1 universal audio jack Rear 1 audio-in; 1 audio-out; 1 RJ-45; 2 DisplayPort™ 1.4; 2 SuperSpeed USB Type-A 10Gbps signaling rate; 1 SuperSpeed USB Type-A 5Gbps signaling rate; 3 USB Type-A 480Mbps signaling rate |
| Internal drive bays |
One 2.5" HDD; One 3.5" HDD; Three M.2 NVME 2280 SSD |
| External drive bays |
One 3.5" HDD; One slim ODD |
| Power |
450 W 90% efficient, wide-ranging, active PFC |
| Security management |
HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Sure Sense Gen2; HP Sure Run Gen5 |
| Ecolabels |
EPEAT® registered |
| Sustainable impact specifications |
Ocean-bound plastic in speaker enclosure; 45% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; 80 Plus® Gold power supplies available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Ocean-bound plastic in speaker enclosure and system fan; Contains recycled metal |
