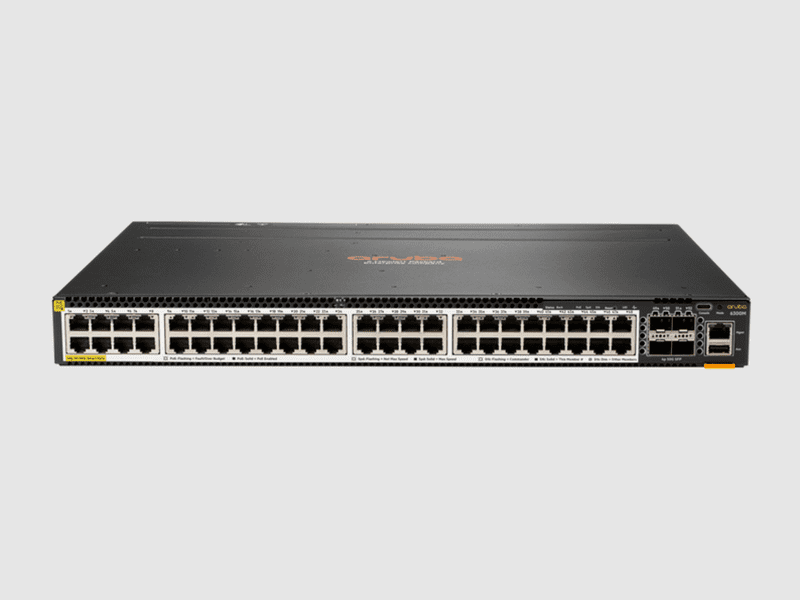

HPE Aruba 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch

HPE ArubaSKU: JL659A


❌ Back Order - Contact Us for ETA

Sale price$23,671.00
Contact Us for ETA



The Aruba CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for access, aggregation, and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy.

A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in highspeed uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high speed APs and IoT devices.


Product Differentiator (long)
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of AOS-CX stackable switches ideal for enterprise access, aggregation and ToR data center deployments. This model has 48 Smart Rate (1/2.5/5GbE) and 4 SFP56 ports. Supports Class 6 PoE.

Power Consumption Description
193-201 W (maximum, depending on power supply)

Input Voltage
110-120/208-240VAC (JL670A PSU), 100-240V AC (JL086A and JL087A PSU)

External I/O Ports
(48) SmartRate 100M/1G/2.5G/5G BASE-T Class 6 PoE ports supporting up to 60W per port, (4) 1/10/25/50G SFP ports

1Gbps: 4.24µSec, 10Gbps: 1.50µSec, 25Gbps: 2.91µSec, 50Gbps: 3.49µSec

Switching Capacity
880 Gbps

Stacking Capabilities
Up to 10 switches per stack

654 Mpps

Memory and Processor
Quad Core ARM Cortex™ A72 @ 1.8GHz, 8 GBytes DDR4 32 GBytes eMMC 8 MB Shared Packet Buffer Memory

PoE Capability
Up to 2880W of Class 6 PoE Power with two new 1600W JL670A PSUs

Management Features
Aruba AirWave Aruba Central Network Management Aruba NetEdit Command-line interface SNMP v2c/v3 RMON

Weight (imperial)
13.27 lbs

Weight (metric)
6.02 kg

Product Dimensions (imperial)
1.73 x 17.4 x 15.2 in

Product Dimensions (metric)
4.4 x 44.2 x 38.5 cm
