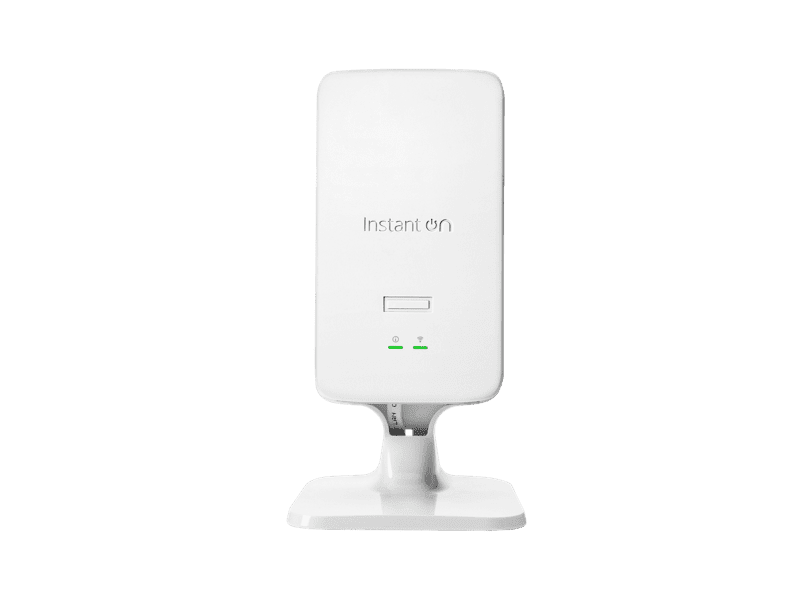

HPE S1U76A Instant On AP22D Access Point Dual Radio 2x2 Wi-Fi 6 (Requires Power Adapter or PoE)

HPE ArubaSKU: S1U76A


❌ Back Order - Contact Us for ETA

Sale price$397.00
Contact Us for ETA

Customer Reviews

Be the first to write a review


HPE S1U76A Instant On AP22D Access Point Dual Radio 2x2 Wi-Fi 6 (Requires Power Adapter or PoE)

What's New

  • Wi-Fi Certified 6 wireless access point, with 2.5GbE uplink port
  • 2.5GbE uplink port provides up to 2x more bandwidth than 1GbE ports without the need for new Cat5/6(a) cables to be installed.
  • Four 1GbE downlink ports that supply up to 2x 15W of PoE (802.3af).
  • Up to 1.7Gbps aggregate wireless throughput.

Key Features

802.11ax Wi-Fi Certified 6

HPE Networking Instant On Access Points AP22D features Orthogonal Frequency-Division Multiple Access (OFDMA) which allows access points to handle multiple Wi-Fi 6 capable clients on each channel simultaneously and improve efficiency by boosting overall capacity, reducing latency.

Target Wake Time (TWT) – Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.

Multi-User, Multiple Input, Multiple Output (MU-MIMO) – Allows the access point to simultaneously serve multiple clients (Wi-Fi 5 and Wi-Fi 6).

2.5Gigabit Ethernet Uplink Port

HPE Networking Instant On Access Points AP22D offers increased available bandwidth to allow for more traffic over Wi-Fi 6 or with the downlink ethernet ports.

Use existing cabling infrastructure like Cat5 or Cat6(a) cables and avoid the additional cost of running new cables across your facility.

Future-proof your environment with the added bandwidth capacity to handle the ever-growing world of cloud-based applications.

Four Downlink 1 Gigabit Ethernet Ports

Connect up to four copper RJ-45 devices to the HPE Networking Instant On Access Points AP22D without the need for an additional switch to manage.

Downlink ports can power two 15W PoE (802.3af) devices without the intervention of a bulky POE-Injector.


Category Specifications
Certifications Wi-Fi Certified 6
Input Voltage Class 4 or 6 PoE (802.3at or bt)
Wi-Fi Antenna Dual Omni-directional 2x2 MIMO
Ports 1x 2.5GbE uplink and 4x 1GbE downlink
Mounting Built-in Wall mount or included desk mount
Power Consumption 51W (PoE) or 50W (DC)
Warranty 2-year hardware warranty, 90-day phone and chat install support
Additional Information The other details were previously mentioned. For reference, the specifications also include:
Switching Capacity 56 Gbps
Throughput 41.6 Mpps
Memory and Processor Dual Core ARM Cortex A9 @ 1016 MHz, 8 GB DDR3, 16 GB eMMC
PoE Capability 370W Class 4 PoE/PoE+
Operating Temperature 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km), derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Dimensions 4.4 x 44.2 x 26.8 cm (1.73 x 17.4 x 10.56 in)
Weight 4.2 kg (9.24 lbs)
