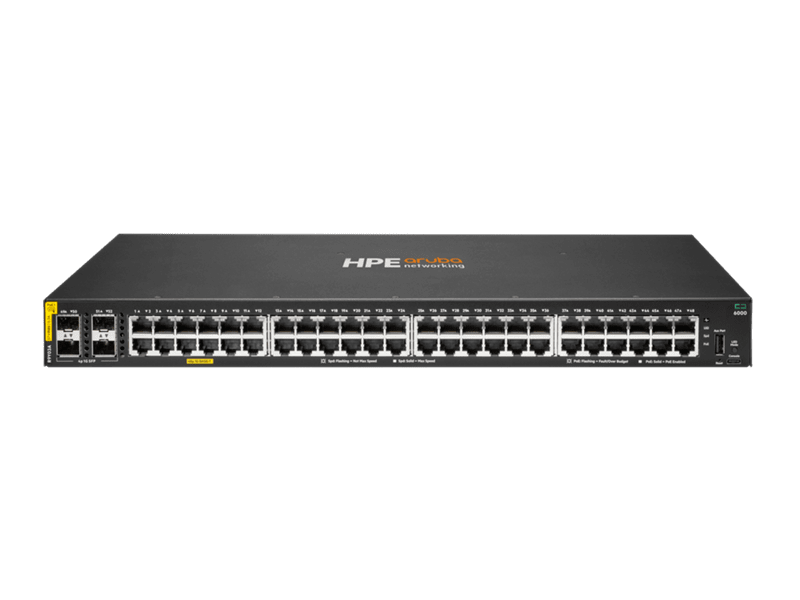

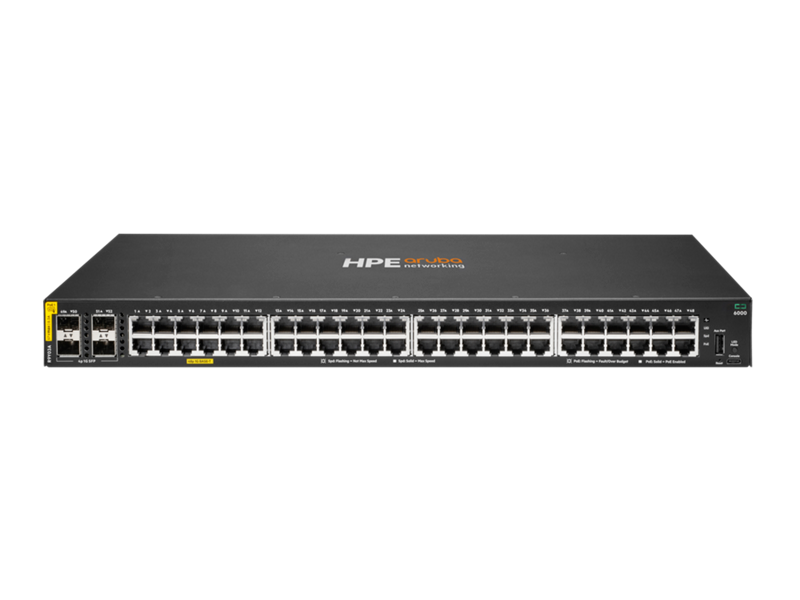

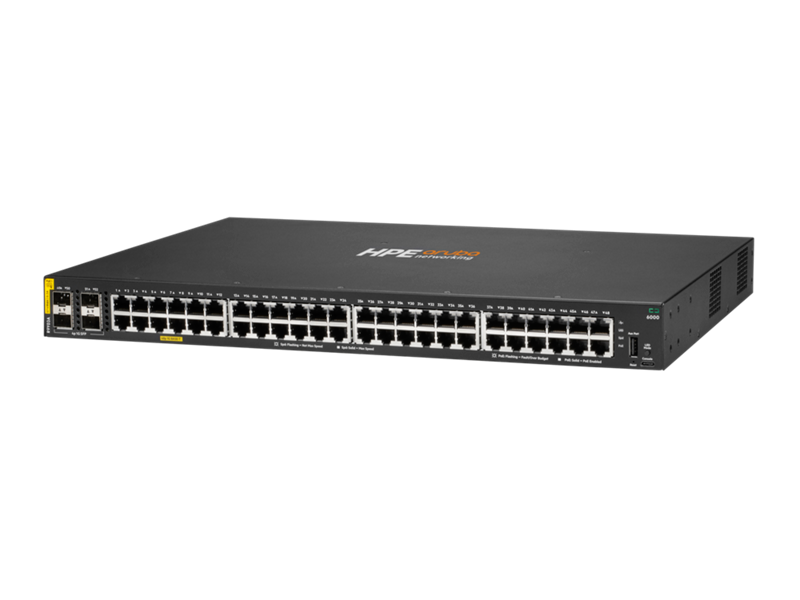

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 740W Switch
The HPE Aruba Networking CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises.
Features
Maximize your HPE Aruba Networking CX 6000 Switch Series
What's New
- Simplify IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
- Convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices.
- Compact and fanless 12-port PoE model for space-constrained deployments.
- Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
- Ready for software defined networking with REST APIs.
HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 740W Switch
The HPE Aruba Networking CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises.
Features
Maximize your HPE Aruba Networking CX 6000 Switch Series
What's New
- Simplify IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
- Convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices.
- Compact and fanless 12-port PoE model for space-constrained deployments.
- Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
- Ready for software defined networking with REST APIs.
HPE Aruba Networking CX 6000 (R9Y03A) Specifications | |
---|---|
Hardware Configuration | |
Form Factor | 1U Rack-mountable |
Cooling | Integrated fans |
Power Supply | Fixed internal PSU |
Ports & Interfaces | |
Access Ports | 48× 10/100/1000BASE-T Class 4 PoE (up to 30W per port) |
Uplink Ports | 4× 1G SFP |
Console Ports | 1× RJ-45, 1× USB-C |
USB Host | 1× USB Type-A |
Performance | |
Switching Capacity | 104 Gbps |
Forwarding Rate | 77.3 Mpps |
Latency | Low latency via Aruba ASIC |
Power & PoE | |
PoE Budget | Up to 740 W |
Input Voltage | 100–240 VAC, 50/60 Hz |
Max Power Consumption | Up to 800 W (full PoE load) |
Software & Features | |
Operating System | ArubaOS-CX |
Layer Support | Layer 2 switching with static routing |
Security | 802.1X, ACLs, DHCP snooping |
Management | Aruba Central, CLI, Web GUI, REST API |
Automation | Python scripting, Aruba NetEdit |
Environmental & Compliance | |
Operating Temperature | 0°C to 45°C |
Certifications | CE, FCC, UL, RoHS |
Warranty | |
Coverage | Limited Lifetime Warranty |
