Description
Overview

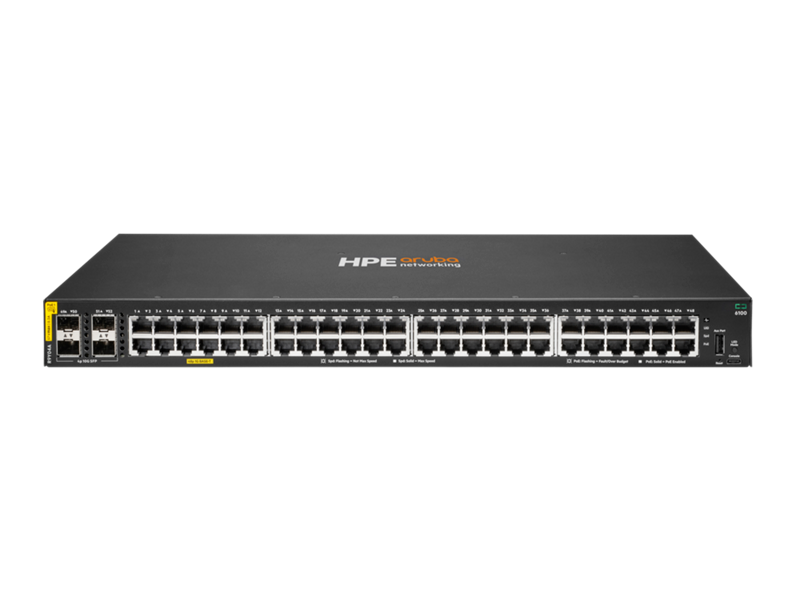

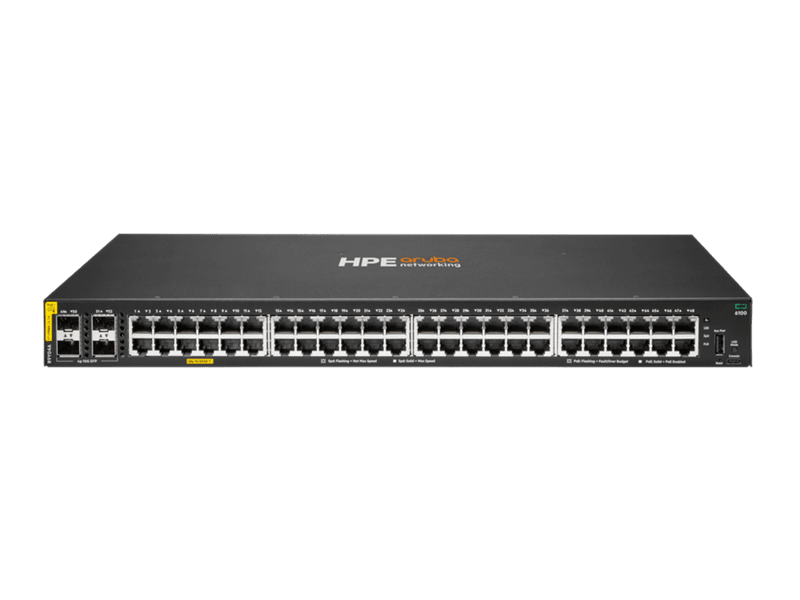

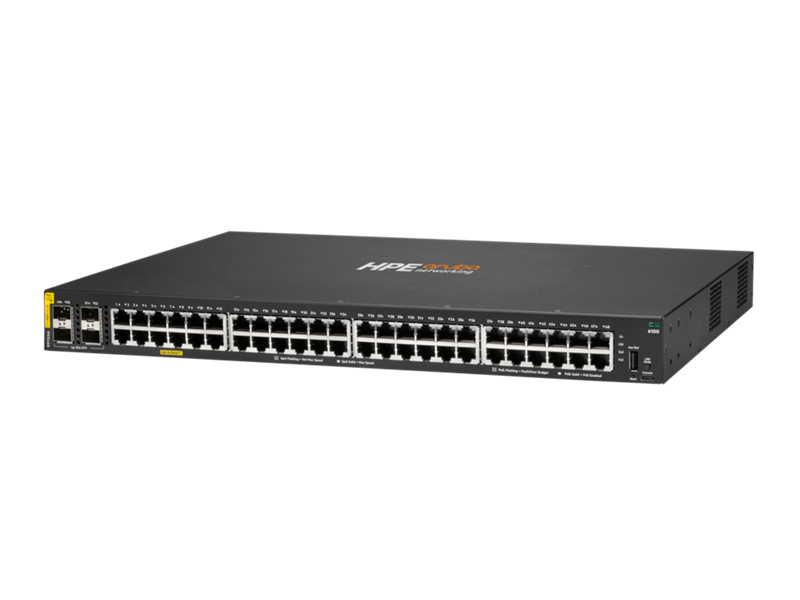

HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch
The HPE Aruba Networking CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks.
Features
Maximize your HPE Aruba Networking CX 6100 Switch Series
What's New
- Simplify IT operations with next-gen Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
- Right size with 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
- Silent deployment with compact and fanless 12-port PoE model.
- Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
- Ready for software defined networking with REST APIs.
HPE Aruba Networking CX 6100 48G Class4 PoE 4SFP+ 740W Switch
The HPE Aruba Networking CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks.
Features
Maximize your HPE Aruba Networking CX 6100 Switch Series
What's New
- Simplify IT operations with next-gen Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
- Right size with 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
- Silent deployment with compact and fanless 12-port PoE model.
- Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
- Ready for software defined networking with REST APIs.
| HPE Aruba Networking CX 6100 (R9Y04A) Specifications | |
|---|---|
| Hardware Configuration | |
| Form Factor | 1U Rack-mountable |
| Cooling | Integrated fans |
| Power Supply | Fixed internal PSU |
| Ports & Interfaces | |
| Access Ports | 48× 10/100/1000BASE-T Class 4 PoE (up to 30W per port) |
| Uplink Ports | 4× 1G/10G SFP+ |
| Console Ports | 1× RJ-45, 1× USB-C |
| USB Host | 1× USB Type-A |
| Performance | |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.9 Mpps |
| Latency | 1 Gbps: 2.28 µs, 10 Gbps: 1.46 µs |
| Power & PoE | |
| PoE Budget | Up to 740 W |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Max Power Consumption | Up to 800 W (full PoE load) |
| Software & Features | |
| Operating System | ArubaOS-CX |
| Layer Support | Layer 2 switching with static routing |
| Security | 802.1X, ACLs, DHCP snooping |
| Management | Aruba Central, CLI, Web GUI, REST API |
| Automation | Python scripting, Aruba NetEdit |
| Environmental & Compliance | |
| Operating Temperature | 0°C to 45°C |
| Certifications | CE, FCC, UL, RoHS |
| Warranty | |
| Coverage | Limited Lifetime Warranty |
