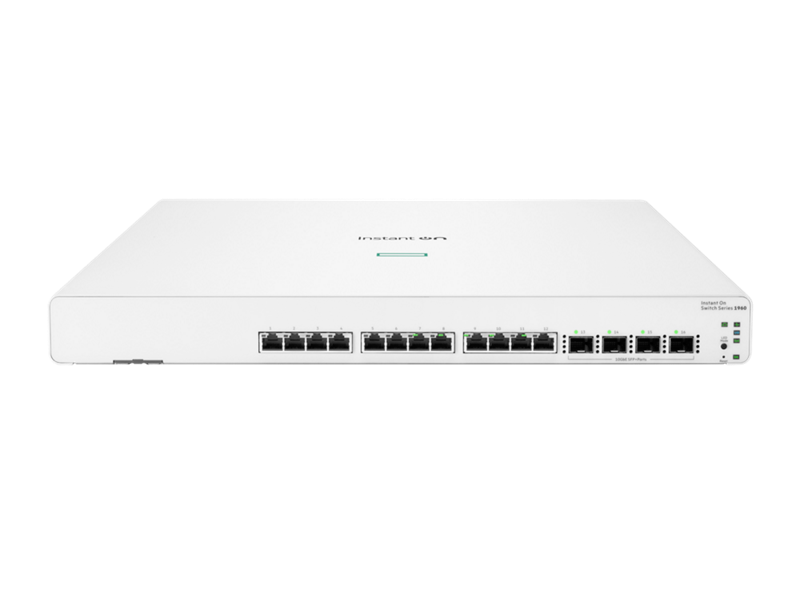

HPE Networking Instant On Switch 12p 10GBT 4p SFP+ 1960
The HPE Networking Instant On Switch Series 1960 is a scalable solution for growing businesses with heavy bandwidth requirements and empowers your network to meet your business growing needs. With increased bandwidth, simplified network management, and the ability to handle multiple devices, it provides the ideal solution for your business.
HPE Networking Instant On Switch 12p 10GBT 4p SFP+ 1960
The HPE Networking Instant On Switch Series 1960 is a scalable solution for growing businesses with heavy bandwidth requirements and empowers your network to meet your business growing needs. With increased bandwidth, simplified network management, and the ability to handle multiple devices, it provides the ideal solution for your business.
HPE Aruba Networking Instant On 1960 (JL805A-PROMO) Specifications | |
---|---|
General Information | |
Product Type | Smart Managed Layer 2+ Aggregation Switch |
Form Factor | 1U Rack-mountable |
Stacking | Up to 4 switches (local or cloud-managed) |
Ports & Interfaces | |
Access Ports | 12× 10GBASE-T RJ-45 (autosensing) |
Uplink Ports | 4× SFP+ 10GbE |
Console Port | 1× USB-C |
USB Host | 1× USB Type-A |
Performance | |
Switching Capacity | 320 Gbps |
Forwarding Rate | 238 Mpps |
MAC Address Table | 16,000 entries |
Routing Table | 512 static IPv4/IPv6 entries |
Packet Buffer | 3 MB |
Latency | < 1.1 µs @ 10Gbps |
Processor & Memory | |
CPU | ARM Cortex-A9 @ 2 GHz |
RAM | 1 GB DDR3 |
Flash | 512 MB NAND |
Power & Electrical | |
Power Supply | Internal AC PSU |
Input Voltage | 100–127V / 200–240V AC |
Frequency | 50/60 Hz |
Max Power Rating | 130 W @ 100–127V, 160 W @ 200–240V |
Idle Power | 60–80 W |
Environmental | |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -40°C to 70°C |
Humidity | 15% to 95% (non-condensing) |
Altitude | Up to 3,000 m |
MTBF | 88.8 years |
Certifications | |
Safety | EN/IEC 62368-1, UL 62368-1, CSA C22.2 |
EMC | CE, FCC Class A, VCCI, BSMI, CISPR 32 |
Immunity | EN/IEC 61000 series |
Management & Features | |
Management | Instant On mobile app, cloud portal, local web GUI |
Switch Type | Smart-managed, Layer 2+ with static routing |
Warranty | |
Coverage | Limited Lifetime Warranty |
