Description

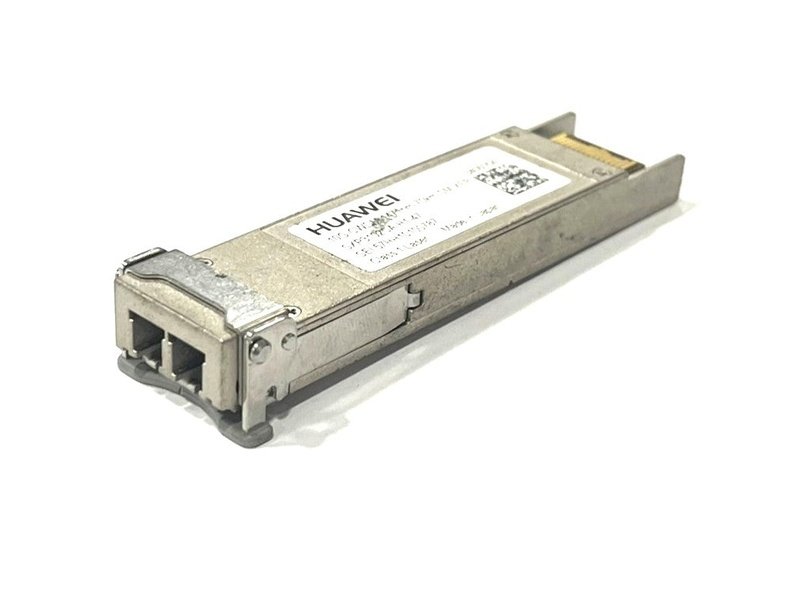

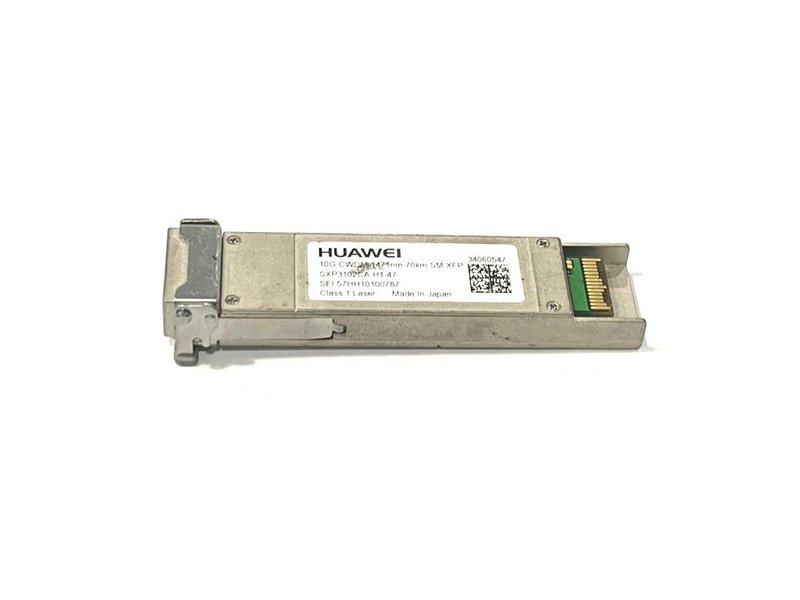

Huawei 34060547 XFP-LH70-SM1471 10Gbps 1471nm 70km SM XFP Transceiver
Part Number: 34060547
Basic Information | |
Part Number |
34060547 |
Model |
XFP-LH70-SM1471 |
Description |
Optical Transceiver-XFP-1471nm-9.95~11.1Gb/s-0dBm-4dBm--23dBm-LC-SM-70km |
Level-1 category |
10Gbps XFP CWDM Optical Module |
Module name |
10Gbps-XFP-SMF-1471nm-70km-commercial |
Technical Specifications | |
Connector type |
LC |
Optical fiber type |
SMF |
Form factor |
XFP |
Transmission rate [bps] |
9.953 Gbit/s 10.3125 Gbit/s |
Target transmission distance [km] |
70 km |
Application standard |
IEEE 802.3ae, 10GBASE-ZR/ZW; STM64/OC-192 |
Working case temperature |
0°C to 70°C(32°F to 158°F) |
Center wavelength [nm] |
1471 nm |
Overload power (OMA) [dbm] |
- |
Overload power (AVG) [dbm] |
-7 dBm |
Minimum Tx optical power (OMA) [dbm] |
- |
Minimum Tx optical power (AVG) [dbm] |
0 dBm |
Maximum Tx optical power (OMA) [dbm] |
- |
Maximum Tx optical power (AVG) [dbm] |
4 dBm |
Minimum extinction ratio [db] |
8.2 dB |
Rx operating wavelength range [nm] |
1460 nm - 1620 nm |
Tx operating wavelength range [nm] |
1464.5 nm - 1477.5 nm |
Rx sensitivity (AVG) [dbm] |
-23 dBm |
Rx sensitivity (OMA) [dbm] |
- |
DDM options |
SFF-INF-8077i |
Bit error ratio (BER) |
<1x10E-12 |
Environment standard |
RoHS |
Security standard |
FCC Class B, IEC 60825-1 Class 1 |
ESD(HBM1) |
500 |
Used with 30 Days Warranty
