Description

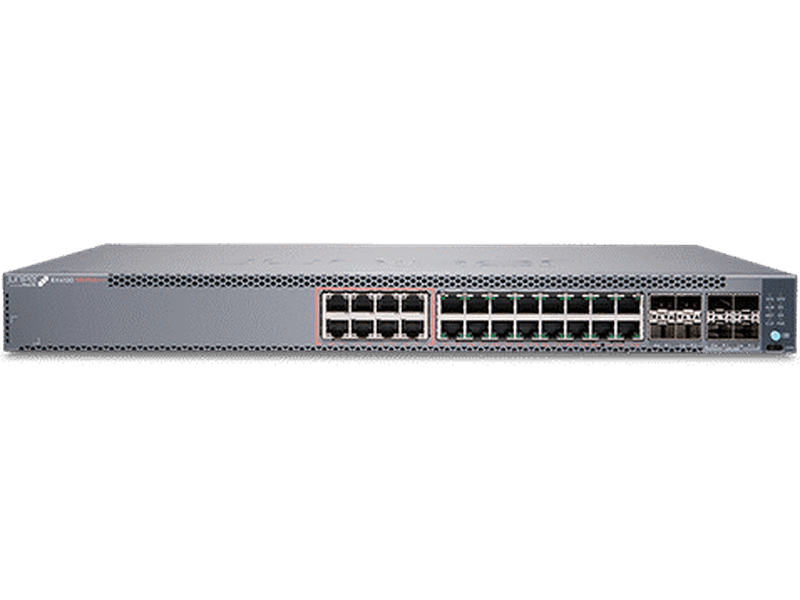

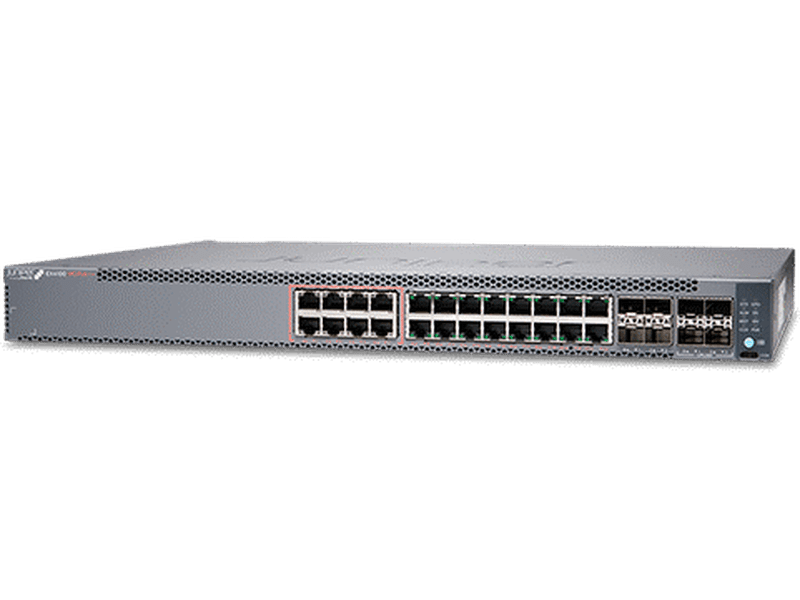

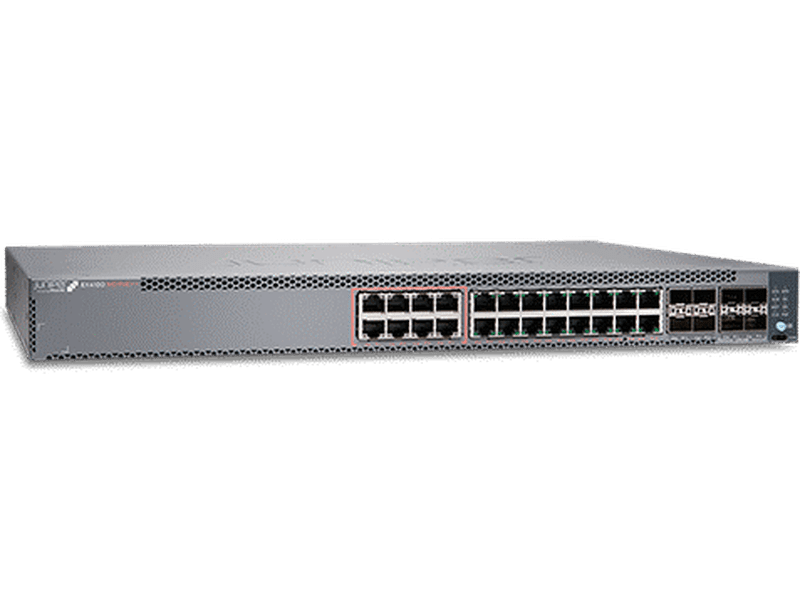

Crafted for high-performance campus and branch deployments, the Juniper Networks EX4100 Multigigabit Ethernet Switch is an AI-driven, cloud-ready access switching platform. The switch offers Multigigabit speeds of 100M/1/2.5/5/10GbE and PoE++ capability for Wi-Fi 6E access points. It’s differentiated by features such as EVPN-VXLAN, micro segmentation using group-based policies (GBP), MACsec AES-256, Power over Ethernet (PoE++), Precision Timing Protocol – Transparent Clock, and flow-based telemetry.
As part of the underlying infrastructure for Juniper Mist™ Wired Assurance, the EX4100 Multigigabit Ethernet Switch is easy to onboard, configure, and manage. The Juniper Mist Cloud streamlines deploying and managing your campus fabric, while Mist AI™ simplifies operations and improves visibility into the performance of connected devices.
Specifications
| Form factor | Fixed 1 U access |
| Port density | EX4100-24MP: 8 x 100M/1/2.5/5/10GbE + 16 x 1GbE, 4 x 1/10GbE uplinks, and 4 x 10/25GbE stacking/uplinks |
| Wired Assurance | Yes |
| Campus Fabrics | 10-member Virtual Chassis, EVPN-VXLAN |
| Cloud Managed | Yes |
| Dimensions (W x H x D) | 1.72” (H) x 17.4” (W) x 13.8” (D) |
| Backplane speed | 200Gbps |
| Data rate | EX4100-24MP: 236/472 Gbps |
| Throughput | EX4100-24MP: 351 Mpps |

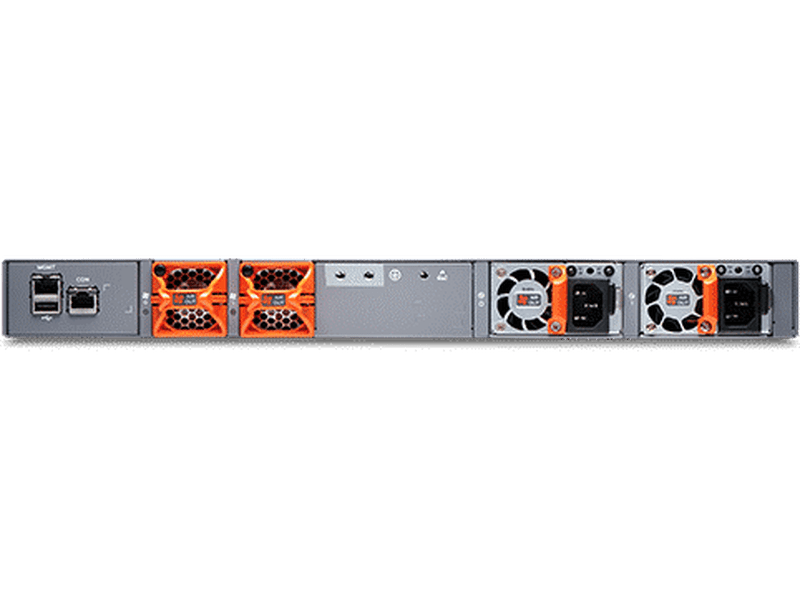

| Resiliency | Redundant internal load-sharing power supplies; redundant variable speed fans |
| Traffic monitoring | sFlow, IPFIX, flow based telemetry |
| Quality-of-service (QoS) queues/port | 12 (8 unicast, 4 multicast) |
| MAC addresses | 64000 |
| Jumbo frames | 9216 |
| IPv4 unicast/multicast routes | 16000 |
| IPv6 unicast/multicast routes | 8000 |
| Number of VLANs | N/A |
| ARP entries | 32000 |
