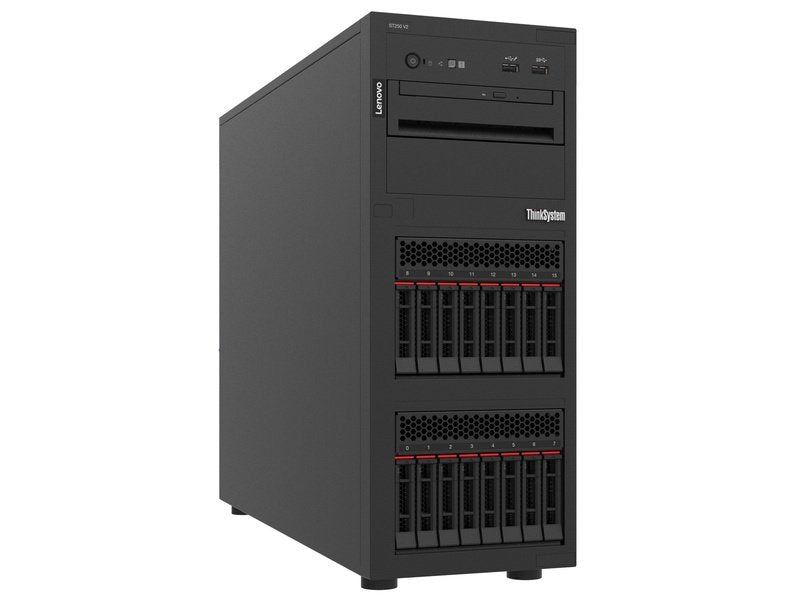

Lenovo ST250 V2 Xeon E-2324G 16GB 8-bay 2.5" 550W 3YR Tower Server

LenovoSKU: 7D8FA00PAU

Lenovo ThinkSystem ST250 V2 Xeon E-2324G 4C(1/1), 16GB(1/4), 2.5"HS(0/8), 550W(1/2) Tower Server 3 Year Warranty


✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Sale price$2,149.00

Customer Reviews

Be the first to write a review

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping


SKU: 7D8FA00PAU | Buy Lenovo ThinkSystem ST250 V2 Xeon E-2324G 4C(1/1), 16GB(1/4), 2.5"HS(0/8), 550W(1/2) Tower Server 3 Year Warranty at PC LAN. Online with upgrade options and fast shipping.

Quick Spec

Components Specification
Processor/Speed Intel Xeon E-2324G 3.1GHz
Processor Cores 4
Memory 1x 16GB installed (up to 128 GB using 4x 32 GB UDIMMs) ECC
Drive Bays/Drives 8x 2.5-in HS / Open bay
Maximum internal storage
  • 2.5-inch drives:
    • 122.88TB using 16x 7.68TB 2.5-inch SAS/SATA SSDs
    • 28.8TB using 16x 1.8TB 2.5-inch HDDs
  • 3.5-inch drives:
    • 144TB using 8x 18TB 3.5-inch HDDs
    • 7.68TB using 8x 960GB 3.5-inch SAS/SATA SSDs
  • Intermix of SAS and SATA is supported.
Power Supply 1x 550W HS / 2 PT
Limited warranty Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Components Specification
Intel processor Xeon E-2324G 4C 65W 3.1GHz


1x 16GB
Drive controller SATA
Drive bays / Drives 8x 2.5-in HS / Open bay
Power supply
1x 550W HS / 2 PT
Machine type 7D8K - 1 year warranty
7D8J - 3 year warranty
Form factor Tower (can be installed in a rack with the available Rack Mount Kit)
Processor One Intel processor. Choose from:
Intel Xeon E-2300 Series processors ("Rocket Lake-E") up to to 8 cores, with core speeds up to 3.7 GHz
Intel Pentium G6405, G6505 and G6605 processors ("Comet Lake Refresh") with 2 cores, with core speeds up to 4.3 GHz
Chipset Intel C256 chipset ("Tiger Lake") part of the "Tatlow" platform
Memory Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 3200 MHz (Xeon processors) or 2666 MHz (Pentium processors). Support ECC UDIMMs.
Memory maximums Up to 128 GB using 4x 32 GB UDIMMs.
Memory protection Error-correcting code (ECC)
Disk drive bays Up to 3x non-hot swap (NHS) drive bays:
2x 3.5-inch NHS drive bays supporting HDDs or SSDs
1x 2.5-inch NHS drive bay supporting an SSD
The server can be configured without any HDDs or SSDs. The server also supports 1x NVMe M.2 drive installed in a socket on the system board as a boot drive.
Maximum internal storage 3.5-inch drives:
16TB using 2x 8TB 3.5-inch HDDs
1.92TB using 2x 960GB 3.5-inch SATA SSDs
2.5-inch drives:
960GB using 1x 960GB 2.5-inch SATA SSDs
HDDs and SSDs can be installed in the same server but are not supported in the same RAID volume
Storage controller Onboard 6 Gb SATA controller, supporting AHCI mode (non-RAID) or Intel RSTe software RAID (RAID 0, 1, 5)
RAID 5350-8i adapter
4350-8i SAS/SATA 12Gb HBA
Optical drive Optional slim DVD-RW drive in dedicated bay.
Network interfaces One integrated Gigabit Ethernet 1000BASE-T port (RJ-45) using Intel I219-LM controller.
PCI Expansion slots Three PCIe slots as follows:
Slot 1: PCIe 4.0 x16 full-height half-length (FHHL)
Slot 2: PCIe 3.0 x1 FHHL
Slot 3: PCIe 3.0 x4 (physical connector is x16) FHHL
With a Pentium processor, Slot 1 is PCIe 3.0.
Ports Front ports:
Five USB ports
1x USB 3.2 G2 with USB-C connector (10Gbps)
2x USB 3.2 G2 (10Gbps)
2x USB 3.2 G1 (5Gbps)
Microphone port*
Headset port*
Rear ports:
Four USB ports (all USB 3.2 G1 (5Gbps)
Two DisplayPort video ports (require a processor with integrated graphics)
One RJ-45 Gigabit Ethernet port
One serial port
One audio line-out port*
* Windows 10 and Windows 11 only; some line noise is possible
Audio Mono amplifier (speaker) mounted on the inside of the front bezel; Audio line-out port at the rear of the server; microphone and headset ports at the front of the server
Cooling Two fixed system fans. Additional fans attached to the processor and power supply. Supports ASHRAE A2 environments.
Power supply One fixed power supply, either 300W (80 PLUS Gold) or 500W (80 PLUS Platinum) power supply.
Hot-swap parts None
Systems management Power and drive activity LEDs. Intel Active Management Technology (AMT) 15.0 server management. Supports Integrated Lenovo XClarity Provisioning Manager Lite (USB memory key-based) for system setup and firmware upgrades. No support for XClarity Controller (XCC).
Security features Power-on password, administrator's password, Trusted Platform Module (TPM), supporting TPM 2.0. Optional Chassis intrusion switch. Padlock loop and Kensington cable slot for physical security.
Video Integrated Intel Graphics Technology (Intel GT) on most processors - see the Processors section. Two DisplayPort ports. Maximum resolution is 3840 x 2160 pixels (4K) at a refresh rate of 60Hz. On servers with a processor that does not have integrated graphics, the two DP ports are not connected and a separate GPU adapter is required. See GPU adapters for details.
Operating systems supported Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi. See the Operating system support section for specifics.
Limited warranty Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Service and support Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.
Dimensions Width: 170 mm (6.7 in.), height: 376 mm (14.8 in.), depth: 316 mm (12.4 in.). See Physical and electrical specifications for details.
Weight Maximum: 9.4 kg (20.7 lb)
