Description

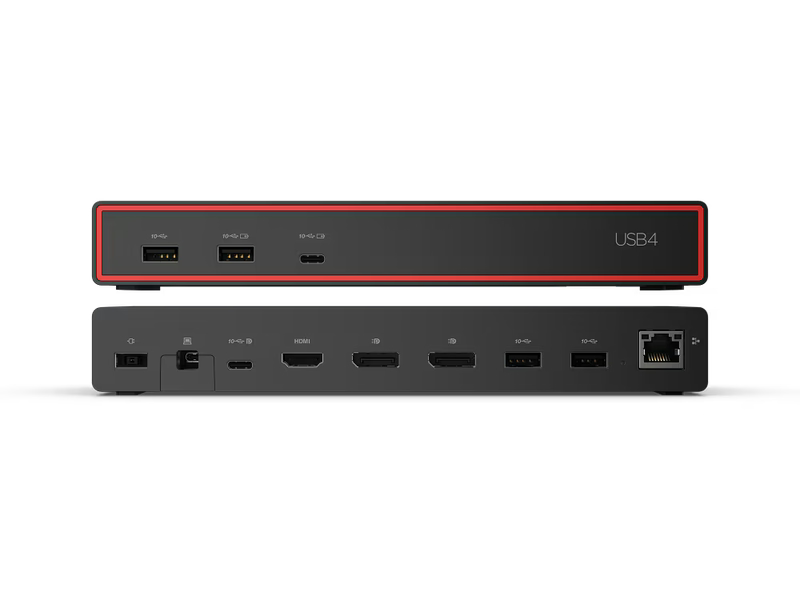

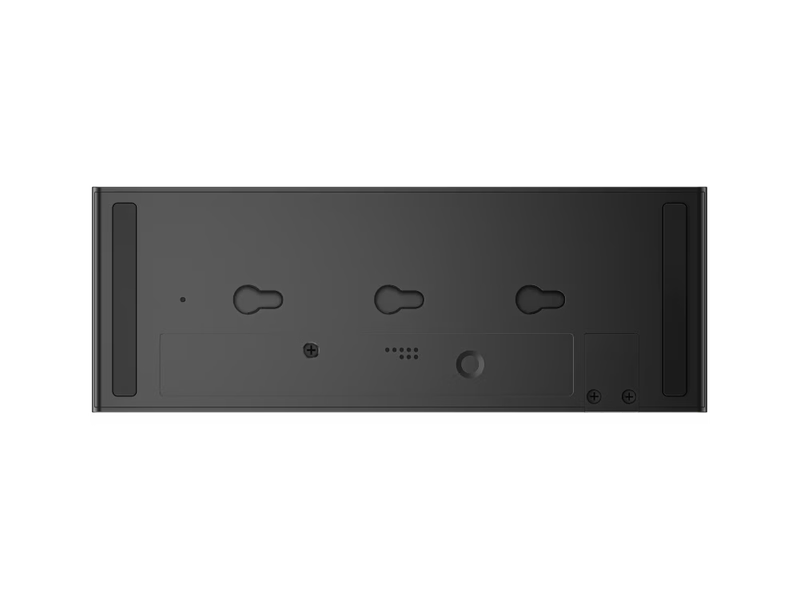

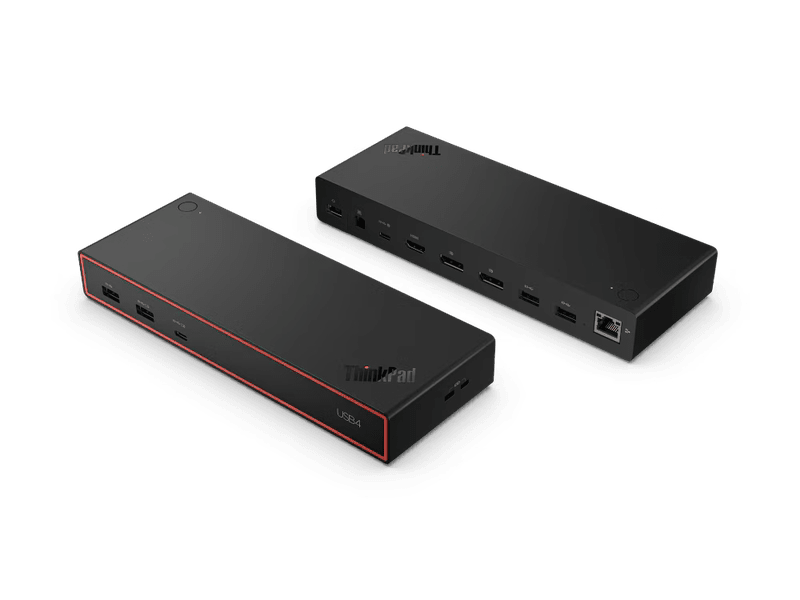

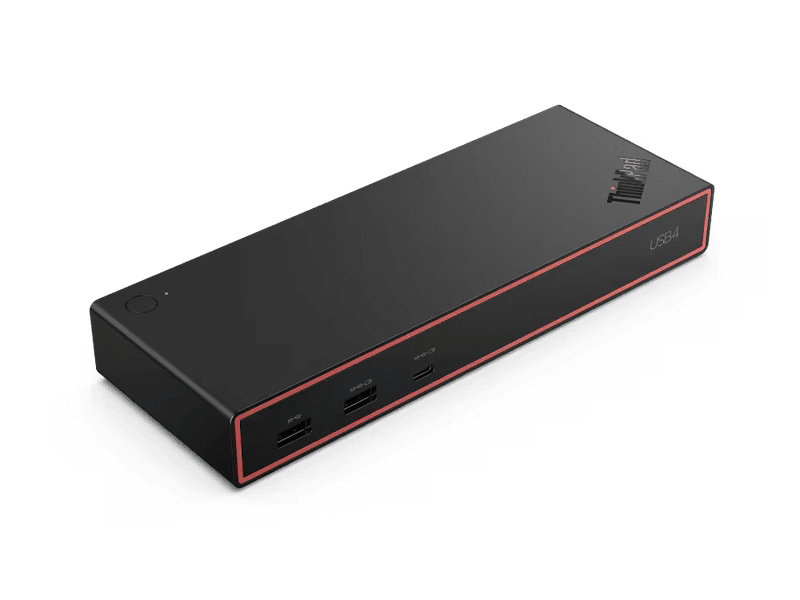

Lenovo ThinkPad USB4 Dock 5000 Docking Station (40BF0100AU)
Key Details:
- The ThinkPad® USB4 Dock 5000 with the latest USB4 technology, quadruples the connectivity performance compared to USB-C 3.2 Gen 2. With up to 40 Gbps bandwidth, you can have up to either one Ultra-High Resolution 8K 60 Hz Displays or two 4K 144 Hz High Refresh Rate monitors set up to fully extend your Lenovo laptop to a compute platform with an assortment of peripheral devices. It supports PD 3.1 and output up to 100W to give a fast charge to your laptop, you can expand the potential of your workspace with ease
- It is also a Universal Compatible Dock across different operating systems
Designed to enhance everyday productivity, the Lenovo™ ThinkPad® USB4 Dock 5000 is the Successor of our famous Universal USB-C Dock equipped with cutting-edge USB4 Technology. The dock can connect to your laptop with 40 Gbps bandwidth and USB4 upstream connectivity, that allows you to extend your monitor set-up with more pixels and higher refresh rates. It can output 65W charge power to your laptop with a 100W power adapter, or you can choose a 135W power adapter to boost the charging power up to 100W to your laptop.
Specifications
| General | |
| Brand | ThinkPad |
| Color | Eclipse Black |
| Package Type | Brown Box |
| Dimensions & Weight | |
| Product Dimensions (L x D x H) | 218 x 80 x 31.5 mm (8.58" x 3.15" x 1.24") |
| Packed Dimensions (L x D x H) | 240 x 145 x 77 mm (9.45" x 5.71" x 3.03") |
| Weight | 470 g (1.04 lbs) |
| Packed Weight | 1035 g (2.28 lbs) |
| Power | |
| Input Power | 100W |
| Output Power | 65W |
| Power Delivery | Yes |
| AC Plug | Slim-tip |
| Charging Port | DC-IN |
| Power Button | Yes |
| Ports & Connectivity | |

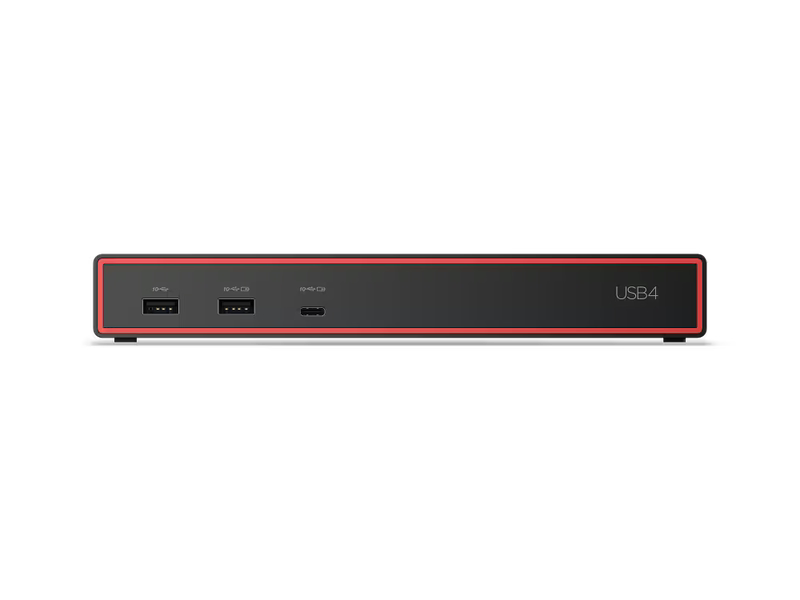

| USB Ports (Front) | 2 × USB-A 3.2 Gen 2 (1 AOU, 12W), 1 × USB-C 3.2 Gen 2 (AOU 7.5W) |
| USB Ports (Rear) | 2 × USB-A 3.2 Gen 2 (4.5W), 1 × USB-C 3.2 Gen 2 (Full Function, 7.5W) |
| Video Ports | 1 × HDMI 2.1, 2 × DisplayPort 1.4, 1 × USB-C (full-function video) |
| Ethernet | 1 × Gigabit Ethernet |
| Audio Ports | No |
| Display Support | |
| Max External Monitors | Up to 4 Displays |
| Max Resolution | 4 × 3840 × 2160 @ 60Hz |
| System Requirements | |
| OS Compatibility | Windows 11, macOS Sonoma, macOS Sequoia |
| Driver Required | Yes |
| Environmental | |
| Operating Temperature | 0°C – 40°C |
| Operating Humidity | 20% – 95% (non-condensing) |
| Security | |

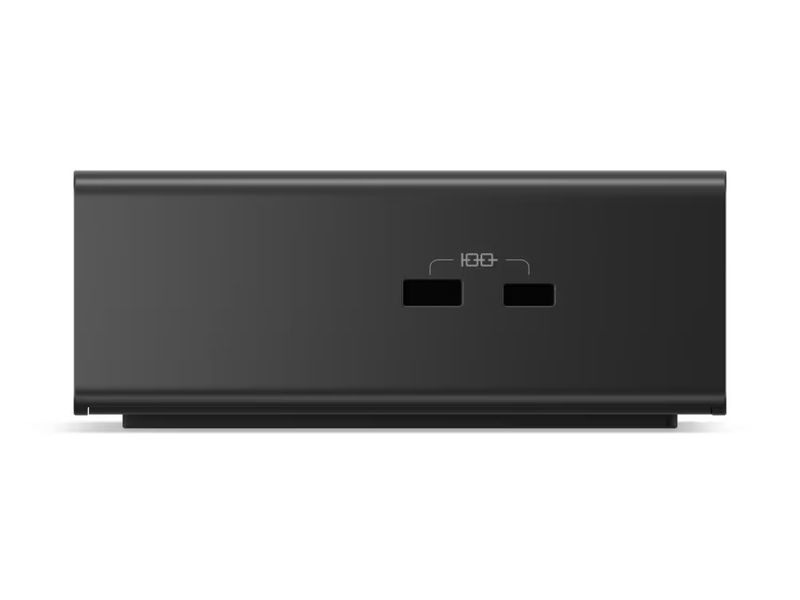

| Physical Security | 1 × NanoSaver Lock Slot, 1 × MicroSaver Lock Slot |
| Compliance & Certifications | |
| Certifications | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TÜV Mark, LoA, Ukraine DoC, NOM |
| Warranty | |
| Warranty Type | Customer Replaceable Unit (CRU) |
| Warranty Period | 3 Years |
