Description

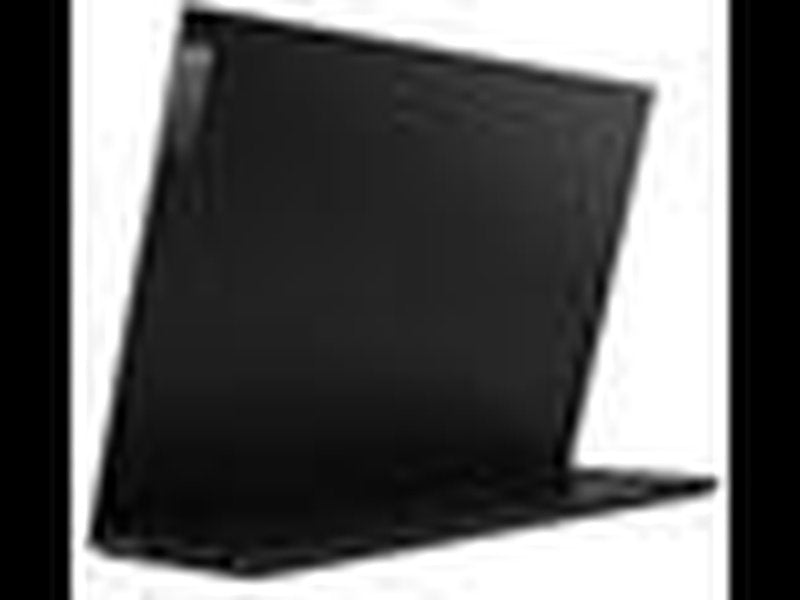

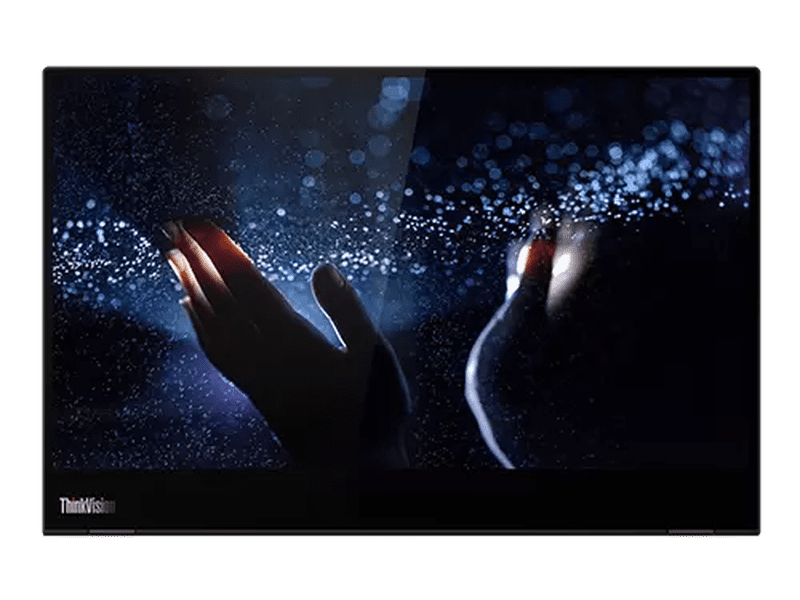

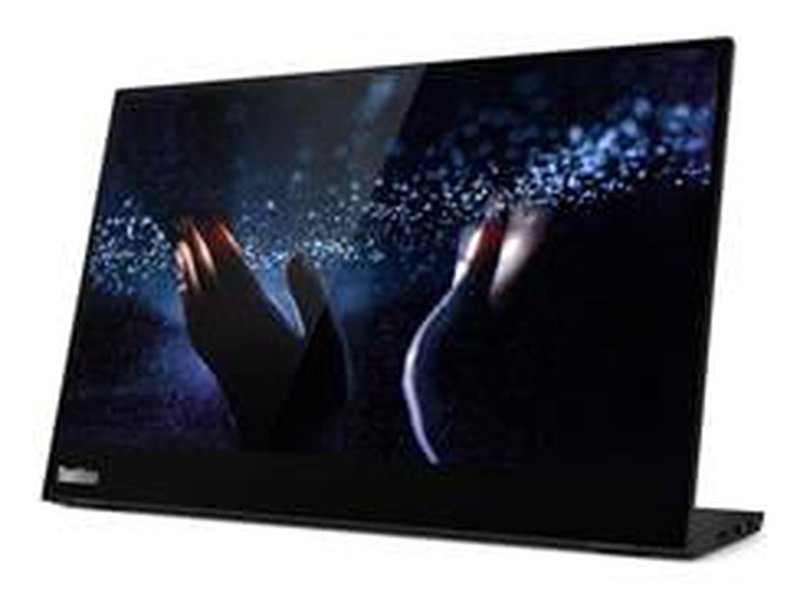

ThinkVision M14t 14-inch FHD Touch Portable Monitor
Part number: 62A3UAR1AU
Key Details
-
14" FHD (1920 x 1080) IPS display, Anti-glare 16:9
-
Extreme mode 6 ms response time
-
60 Hz refresh rate
-
300nits, 700:1, 72% NTSC, 8-bit
-
-5° to +90° tilt, 90° pivot, up to 11mm lift
-
TÜV Rheinland® Low Blue Light
Overview
Scale new heights of productivity, flexibility, and style with a touch-enabled mobile monitor. The slim and light ThinkVision M14t is a 14-inch Full-HD display that provides you with an extra screen whenever you need it.
With 10-point touch functionality, enjoy the freedom to design, animate, present, and annotate on an intuitive monitor interface. More than just a display, the M14t comes with a pressure-sensitive active pen for precise sketching and easy navigation, as well as a customised sleeve for protection and an L-shaped dongle for vertical deployment and better cable management.
This compact USB-C Hub monitor with two USB-C ports works seamlessly with not only the Lenovo Think family laptops but also with your other compatible USB-C devices, like your smartphone. The monitor offers ease of use, especially while working on the go. Connect, present, pitch, and create with conviction on the M14t—at the office or on the go.
Features
SEE MORE EVERYWHERE YOU GO
Built for mobile professionals, the M14t’s 14" Full-HD IPS panel display with super-narrow bezels ensures crisp and accurate visuals with impressive viewing angles, making it ideal for presentations. This sleek ultra-portable monitor with tilt function (-5° / 90°) and a height-adjustable stand (up to 11 mm) allows users to work in a flexible and comfortable viewing position in any work environment. Get a clear view of the display, whether you are outdoors or in an office, with 300 nits brightness capability. Moreover, the TÜV Rheinland Low Blue Light technology lets you work with minimal eyestrain.
DELIVER AS ONLY YOU CAN
Drag, draw, annotate, and collaborate, no matter where you are. The ThinkVision M14t is 10-point touch-enabled for an intuitive interactive experience even on the go, allowing you to create with a personal touch. It comes along with an active digital pen that supports 4096 levels of pressure, so you can draw and sketch with unmatched precision. Switch your view in no time with auto-rotation sensors that don’t require software or driver installation. Additionally, an intuitive on-screen-display (OSD) menu enables easy access to brightness, contrast, and rotation settings.
CONNECT BETTER, WORK EASIER
Built with an innovative dual USB-C design, the M14t can duplicate or extend your screen—be it your smartphone or laptop—so you’re always productive. With data, power, and media capabilities of USB-C, you can create a presentation, transfer data to a hard drive, and enjoy the unique power pass-through function. With dual USB-C port, the power pass-through function supplies power to the M14t and the compatible USB-C device connected to the monitor simultaneously via one AC/DC adapter. Enjoy the option of a vertical display setup and better cable management for a clean, easy desktop setup with the L-shaped dongle.
Tech Specs
DISPLAY | Panel Size |
14-inch | |
Screen Dimensions | |
309.31 mm x 173.09 mm | |
Panel Type | |
In-Plane Switching | |
Backlight | |
WLED | |
Aspect ratio | |
16:9 | |
Resolution | |
1920x1080 | |
Pixel Pitch | |
0.1611 x 0.1611 mm | |
Dot/Pixel Per Inch(DPI/PPI) | |
157 | |
Viewing angle (H x V @ CR 10:1) | |
178 ° / 178 ° | |
Response Time | |
6ms (extreme mode) | |
8ms (normal mode) | |
Refresh Rate | |
60 Hz | |
Brightness (typical) | |
300 cd/m2 | |
Contrast Ratio (typical) | |
700:1 | |
Dynamic Contrast Ratio (typical) | |
3M:1 | |
Color Gamut | |
72% NTSC (CIE 1931) | |
Color Support (typical) | |
16.7 Million | |
Color Depth | |
8-bit (6-bit + FRC) | |
Touch | |
Yes (10-point touch) | |
CONNECTIVITY | Video Signal |
2 x USB 3.2 Type-C (DP1.2 Alt Mode) | |
USB Upstream | |
2 x USB 3.2 Type-C | |
USB Downstream | |
2 x USB 3.2 Type-C | |
SPECIAL FEATURES | Pen/Digitizer |
Yes | |
POWER | Power Consumption (typ./max) |
8W / 9.5W | |
Power Consumption Sleep/Off Mode | |
< 0.3W | |
Power Consumption Switch-off Mode | |
< 0.3W | |
ENERGY STAR Power Consumption(Pon/ETEC) | |
7.22W / 25.5kWH | |
Power Supply | |
External | |
USB Type-C Power Delivery (W) | |
Up to 65 W | |
Voltage Required | |
DC 5 / 9 / 15 / 20 V | |
MECHANICAL | Tilt Angle (front/back) |
-5 ° / 90 ° | |
Lift (max range) | |
11 mm | |
Pivot | |
-90° / 90° | |
Mounting Support | |
Yes (2 screws holes, 100 mm) | |
Kensington Lock Slot | |
Yes | |
Cable Management | |
Yes | |
Bezel Color | |
Raven Black | |
Bezel Width (side) | |
5.43 mm | |
Bezel Width (top/bottom) | |
5.42 / 30.38 mm | |
DIMENSION | Size Packed (D x H x W, mm/inch) |
377.0 x 68.0 x 267.0 mm | |
148.43 x 26.77 x 105.12 inches | |
Size Unpacked w/ Stand (D x H x W, mm/inch)(lowest position) | |
14.0 x 214.3 x 323.4 mm | |
0.55 x 8.44 x 12.73 inches | |
Size Unpacked w/ Stand(D x H x W, mm/inch)(highest position)) | |
14.0 x 226.5 x 323.4 mm | |
0.55 x 8.92 x 12.73 inches | |
Weight Unpacked (kg/lbs.) | |
1.87 kg / 4.12 lbs. | |
Weight Unpacked* (kg/lbs.) | |
0.698 kg* / 1.54 lbs. | |
CERTIFICATIONS | ENERGY STAR Rating |
8.0 | |
CCC | |
Yes | |
EPEAT | |
Silver | |
RoHS (EU 2002/95/EC) | |
Yes | |
Windows Certification | |
Windows 7, Windows 10 | |
China Energy Efficiency Standard | |
Tier 2 | |
TÜV Rheinland Low Blue Light | |
Yes |
