Description
Overview

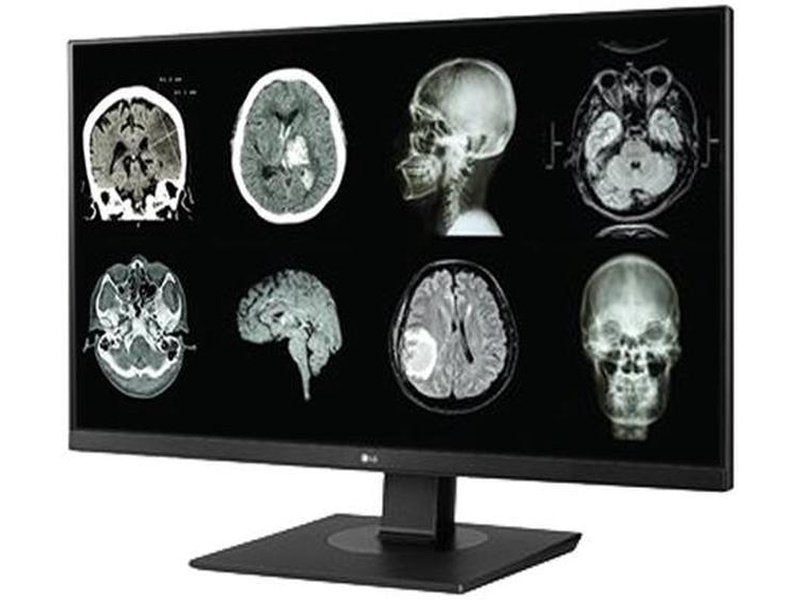

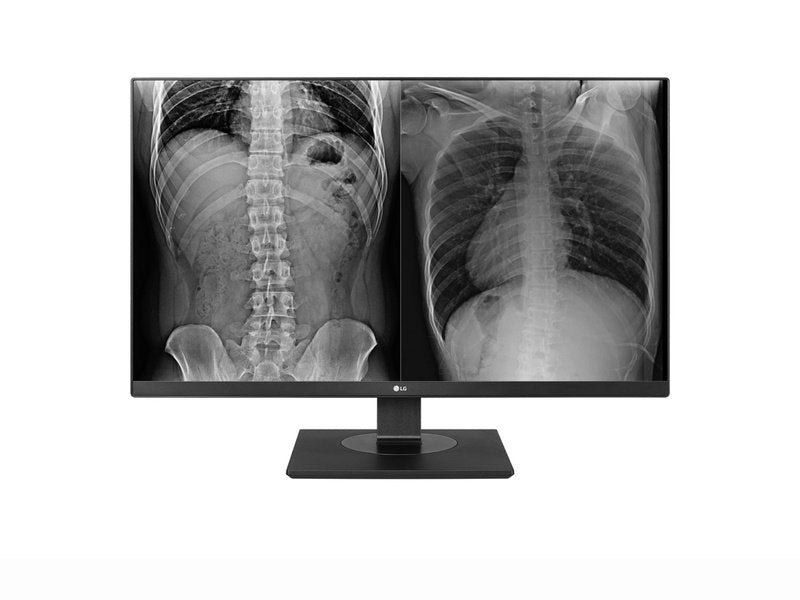

LG 8MP Clinical Review Monitor
- 27” IPS 8MP
- 350nits(Typ.) & sRGB 99%
- DICOM Part 14
- Brightness Stabilization
- Flicker Safe
- Two-way Pivot
Superior Image Quality
The 27-inch 8MP IPS display provides the ideal brightness for secondary review. The 178°-wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.
Brighter and More Precise
350nits (Typ.) brightness and sRGB 99% of the color space guarantee brighter, more vivid color expression and better resolution for greater image accuracy.
Compliance with Medical Standards
The DICOM Part 14 Gamma adjusts the greyscale levels of medical images from various medical imaging modalities, helping more accurate review. Also, it ensures a 250 nit brightness compliant to the ACR-AAPM-SIIM secondary review brightness guideline*.
Consistently Stable Display
A sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by display aging for a consistently stable display throughout the usage lifespan.
Long Lasting Eye Comfort
Flicker Safe technology virtually eliminates flickering to help prevent eye fatigue. This protects the vision of doctors and prevents them from slowing down their work flow.

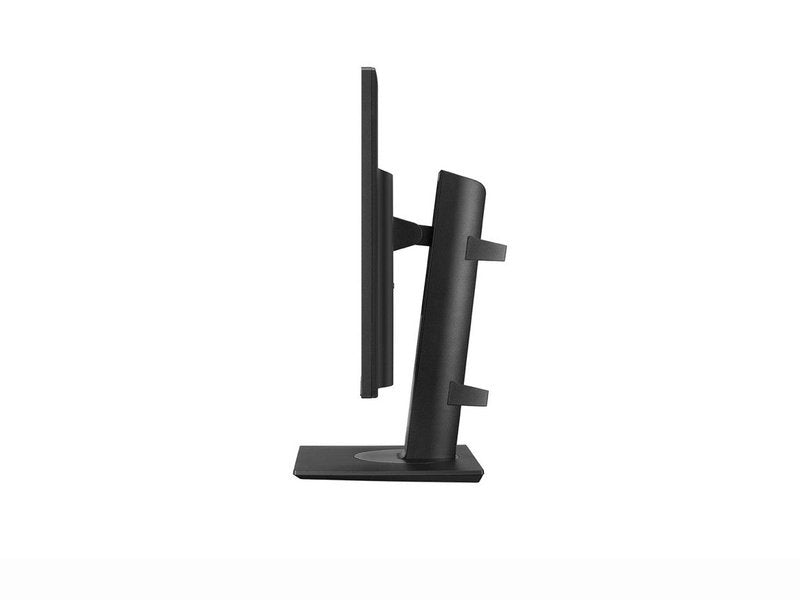

Ergonomic Design
The Ergonomic Stand with Two-Way Pivot adjustment realizes an optimized diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.
Specifications
PANEL
(GTG)
5ms (High)
Aspect Ratio
16:9
Brightness (DICOM Calibrated)
250 cd/m²
Brightness
350 cd/m²
Color Depth (Number of Colors)
1.07 B (10bit)
Color Gamut (CIE1931)
sRGB 99%
Contrast Ratio (Original)
1000:1
Panel Type
IPS
Pixel Pitch (mm)
0.1554mm x 0.1554mm
Resolution
3840 x 2160
Response Time_Typ. (on/off)
14ms (Typ)
Size
27" Class (27.0" Diagonal)
Surface Treatment
Anti-Glare 3H
Viewing Angle (CR≥10)
178 / 178
SIGNAL INPUT
[ Jack Location ]
Rear
DisplayPort
x1 (1.2)
HDMI
x2 (2.0)
USB
USB3.0 1up 2down
AUDIO OUTPUT
[ Jack Location ]
Rear
Headphone Out
Yes
CABINET
Box
694 x 504 x 185 mm / 27.3" x 19.8" x 7.3"
Monitor (with Stand)
615.0 x 276.1 x 546.3 mm / 24.2" x 10.9" x 21.5"
Monitor (without Stand)
615.0 x 42.7 x 365.1 mm / 24.2" x 1.7" x 14.4"
VESA® Wall Mount
100 x 100
Weight (Box)
22.7 lbs / 10.3 kg
Weight (with Stand)
16.5 lbs / 7.5 kg
Weight (Without Stand)
10.4 lbs / 4.7 kg
RESOLUTION
Digital (HDMI)
3840x2160
Display Port
3840x2160
HDMI
3840x2160
SPECIAL FEATURE
4 Screen Split
YES
Automatic Standby
YES
Brightness Stabilization
YES
Color Calibrated
YES
Color Temperature
6500K / 8500K / 9300K, Manual (5000K ~ 10000K)
DDC/CI
YES
DICOM Mode
Yes (Kδ <= 10%)
DPM
YES
Dual Controller
YES
Dynamic Sync Mode (Thru Mode)
YES
Factory Calibration
Yes (Delta E<2, Gamma 1.8 ~ 2.6 / DICOM curve)
Flicker safe
YES
Gamma
Gamma 1.8, Gamma 2.0, Gamma 2.2,Gamma 2.4, Gamma 2.6, DICOM Gamma curve
H/W Calibration
Yes (Calibration 1-2 Mode)
HDCP
YES
Key Lock
YES
On Screen Control
YES
ORIGINAL RATIO
YES
PBP
YES
Picture Mode
YES
Plug & Play
YES
Quick Charge
YES
Reader Mode
YES
Response Time Control
YES
SIX Axis Control
YES
Smart Energy Saving
Yes (Conserve energy by using luminance compensation algorithm)
Super Resolution+
YES
True Color Pro
YES
Uniformity Compensation
YES
COLOR
Back Cover
Black
Base
Black
Front
Black
Others
Deco cover : Black
Stand
Black
CONTROL KEY
[ Key Location ]
Bottom
Key Number (Power Key Included)
5
Key Type
Joystick
LED Color(On Mode)
White
LED Color(Power save mode)
White Blinking
FREQUENCY
H-Frequency (Display Port)
30~135kHz
H-Frequency (HDMI)
30 ~ 135kHz
V-Frequency (Display Port)
56~61Hz
V-Frequency (HDMI)
56 ~ 61Hz
OSD
Country
Worldwide
Number of Language
17
POWER
DC Off (Max)
0.3W
Input
100-240Vac, 50/60Hz
Normal On (Max) (Brightness100 + USB Load)
65W
Output
19V, 3.42A (65W)
Sleep Mode (Max)
0.5W
Type
Adapter
STAND
Base Detachable
Yes
Height (mm)
Yes (range 150mm)
One Click stand set-up
Yes
Pivot
180°
Swivel (Angle)
Yes (-45o ~ +45o )
Tilt (Angle)
Yes (-5o ~ 25o )
