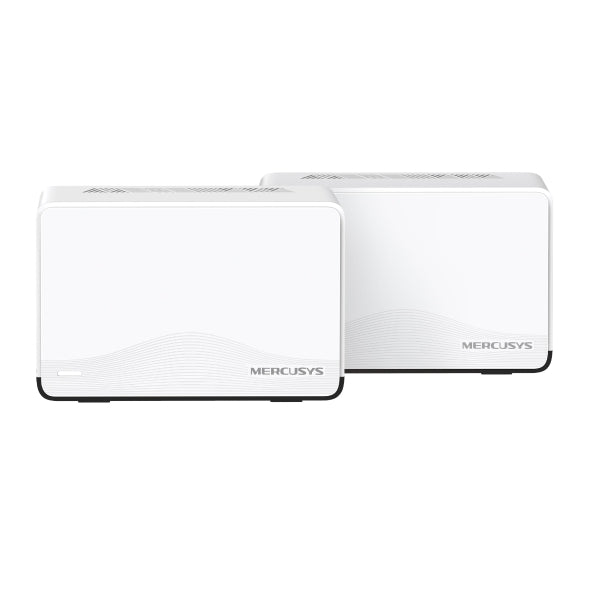

Halo H27BE
BE3600 Whole Home Mesh Wi-Fi 7 System
- Blazing-Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.‡
- Newest WiFi 7: Armed with the 4K-QAM, MLO, Multi-RUs, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.△
- Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging WiFi when you're walking around the house.†
- Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.△
- Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN and 2× 1 Gbps auto-sensing ports break through the 1G bottleneck, driving your devices to peak performance.**
- Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 7,000 ft2/650 m2 (ideal for 4-7 bedroom houses).‡
- Easy Setup and Use: Network management has never been easier with the MERCUSYS app.
*Please note that the Halo H series and S series cannot work together.
Halo H27BE
BE3600 Whole Home Mesh Wi-Fi 7 System
- Blazing-Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.‡
- Newest WiFi 7: Armed with the 4K-QAM, MLO, Multi-RUs, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.△
- Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging WiFi when you're walking around the house.†
- Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.△
- Multi-Gigabit Port: 1× 2.5 Gbps WAN/LAN and 2× 1 Gbps auto-sensing ports break through the 1G bottleneck, driving your devices to peak performance.**
- Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 7,000 ft2/650 m2 (ideal for 4-7 bedroom houses).‡
- Easy Setup and Use: Network management has never been easier with the MERCUSYS app.
*Please note that the Halo H series and S series cannot work together.
| TP-Link Halo H27BE BE3600 Wi-Fi 7 Mesh System Specifications | |
|---|---|
| Wireless | |
| Wireless Standards | • 5 GHz: IEEE 802.11a/n/ac/ax/be (mixed) • 2.4 GHz: IEEE 802.11b/g/n/ax/be (mixed) |
| WiFi Speeds | • 5 GHz: 2880 Mbps • 2.4 GHz: 688 Mbps |
| Reception Sensitivity | • 2.4 GHz: −97 dBm • 5 GHz: −98.5 dBm |
| Transmission Power | • 5 GHz Band 1/2: < 23 dBm • 5 GHz Band 3: < 30 dBm • 2.4 GHz Band: < 20 dBm |
| Wireless Security | WPA-PSK, WPA2-PSK, WPA3-SAE |
| Mesh Protocol | 802.11k/v/r |
| Hardware | |
| Dimensions (W × D × H) | 128 × 81.3 × 83.7 mm (5 × 3.2 × 3.3 in) |

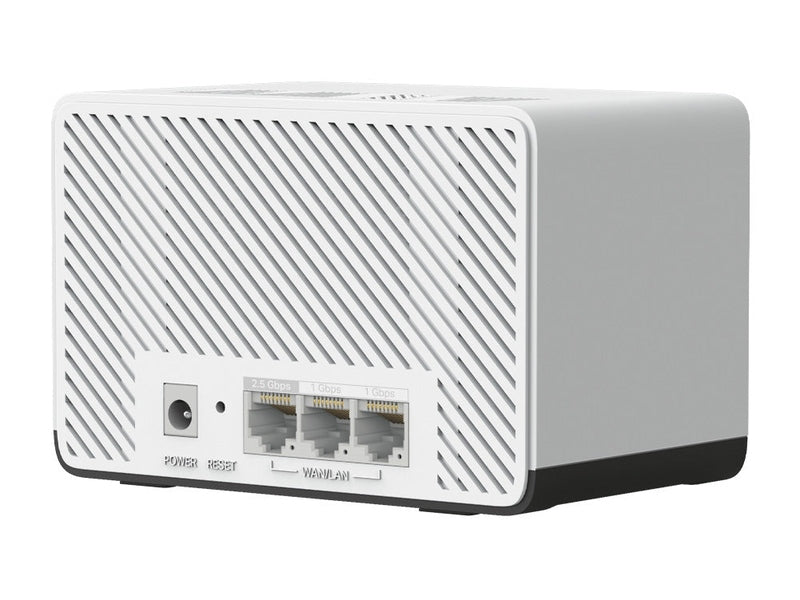

| Interfaces | 1× 2.5 Gbps Port + 2× 1 Gbps Ports (WAN/LAN Auto-Sensing) |
| Button | Reset Button |
| Software | |
| Operation Mode | Router, Access Point |
| Quality of Service | WMM |
| WAN Type | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| Management | Local Management, Remote Management, Multi-Managers |
| Firewall Security | SPI Firewall |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz and 5 GHz |
| DHCP | Server, Client |
| Network Services Enabled by Default | |
| Web Server | HTTP/HTTPS (Port 80/443, TCP) |
| DHCP Server | Port 67, UDP |
| DNS | Port 53, TCP & UDP |
| App Management | • Port 20001 (TCP) • Port 20002 (UDP) |
| Package Contents | |
| 2-Pack | • 2× Halo H27BE Units • 1× RJ45 Ethernet Cable • 2× Power Adapters • Quick Installation Guide |
| Environment | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% ~ 90% RH (Non-Condensing) |
| Storage Humidity | 5% ~ 90% RH (Non-Condensing) |
