Overview

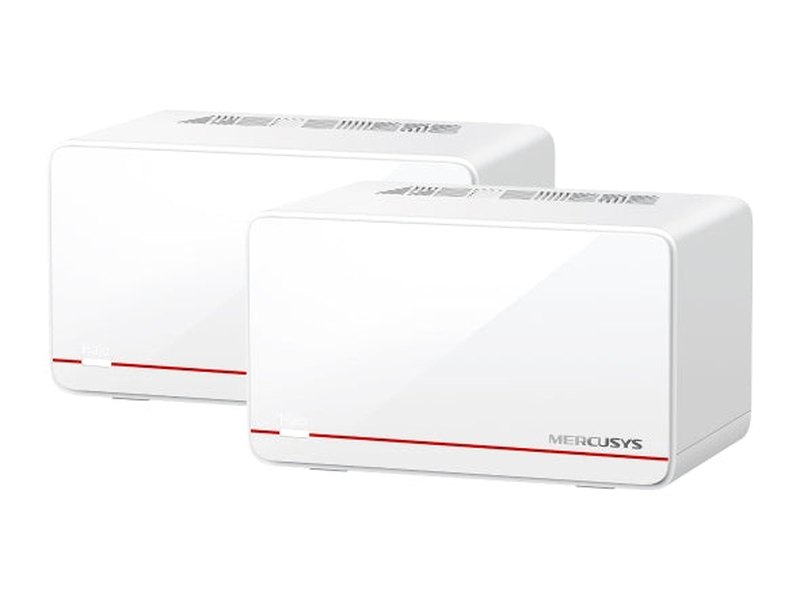

Halo H37BE
BE6500 Whole Home Mesh Wi-Fi 7 System
- Blazing-Fast 6.5 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.‡
- Newest Wi-Fi 7: Armed with the 160 MHz channels, 4K-QAM, MLO, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.△
- Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging Wi-Fi when you're walking around the house.†
- Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.△
- 2.5G Ports: 2× 2.5 Gbps WAN/LAN auto-sensing ports break through the 1G bottleneck, driving your devices to peak performance.**
- Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 5,000 ft2/460 m2 (2-pack, ideal for 3-5 bedroom houses) ; 7,000 ft² /650 m²(3-pack, ideal for 4-7 bedroom houses) .‡
- Easy Setup and Use: Network management has never been easier with the MERCUSYS app.
*Please note that the Halo H series and S series cannot work together.
Halo H37BE
BE6500 Whole Home Mesh Wi-Fi 7 System
- Blazing-Fast 6.5 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.‡
- Newest Wi-Fi 7: Armed with the 160 MHz channels, 4K-QAM, MLO, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.△
- Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging Wi-Fi when you're walking around the house.†
- Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.△
- 2.5G Ports: 2× 2.5 Gbps WAN/LAN auto-sensing ports break through the 1G bottleneck, driving your devices to peak performance.**
- Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 5,000 ft2/460 m2 (2-pack, ideal for 3-5 bedroom houses) ; 7,000 ft² /650 m²(3-pack, ideal for 4-7 bedroom houses) .‡
- Easy Setup and Use: Network management has never been easier with the MERCUSYS app.
*Please note that the Halo H series and S series cannot work together.
| TP-Link Halo H37BE BE5760 Wi-Fi 7 Mesh System Specifications | |
|---|---|
| Wireless | |
| Wireless Standards | • 5 GHz: IEEE 802.11a/n/ac/ax/be (mixed) • 2.4 GHz: IEEE 802.11b/g/n/ax/be (mixed) |
| WiFi Speeds | • 5 GHz: 5760 Mbps • 2.4 GHz: 688 Mbps |
| Reception Sensitivity | • 2.4 GHz: −97 dBm • 5 GHz: −97.5 dBm |
| Transmission Power | • 5 GHz Band 1/2: < 23 dBm • 5 GHz Band 3: < 30 dBm • 2.4 GHz Band: < 20 dBm |
| Wireless Security | WPA-PSK, WPA2-PSK, WPA3-SAE |
| Mesh Protocol | 802.11k/v/r |
| Hardware | |
| Dimensions (W × D × H) | 150 × 94 × 86 mm (5.91 × 3.70 × 3.39 in) |

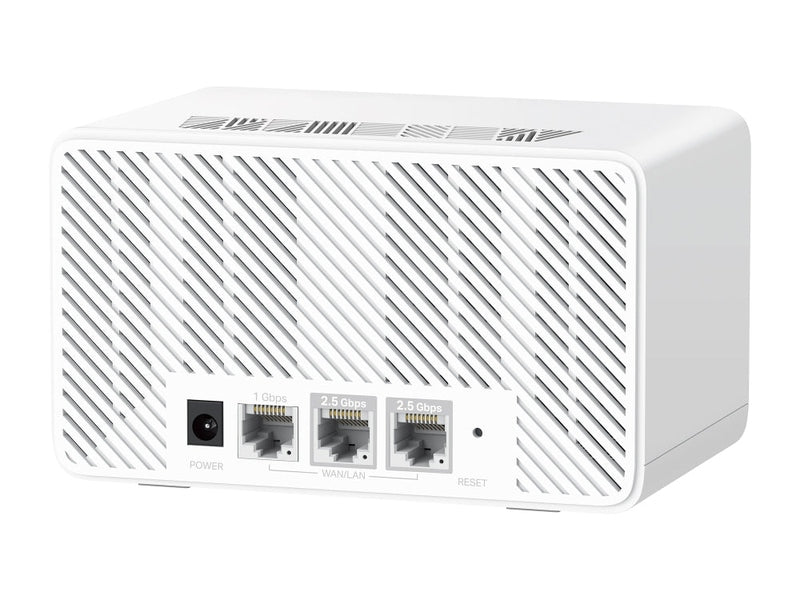

| Interfaces | • 2× 2.5 Gbps Ports (WAN/LAN Auto-Sensing) • 1× 1 Gbps Port (WAN/LAN Auto-Sensing) |
| Button | Reset Button |
| Software | |
| Operation Mode | Router, Access Point |
| Quality of Service | WMM |
| WAN Type | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| Management | Local Management, Remote Management, Multi-Managers |
| Firewall Security | SPI Firewall |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz and 5 GHz |
| DHCP | Server, Client |
| Network Services Enabled by Default | |
| Web Server | HTTP/HTTPS (Port 80/443, TCP) |
| DHCP Server | IP Assignment (Port 67, UDP) |
| DNS | Port 53, TCP & UDP |
| App Management | • Port 20001 (TCP) • Port 20002 (UDP) |
| Package Contents | |

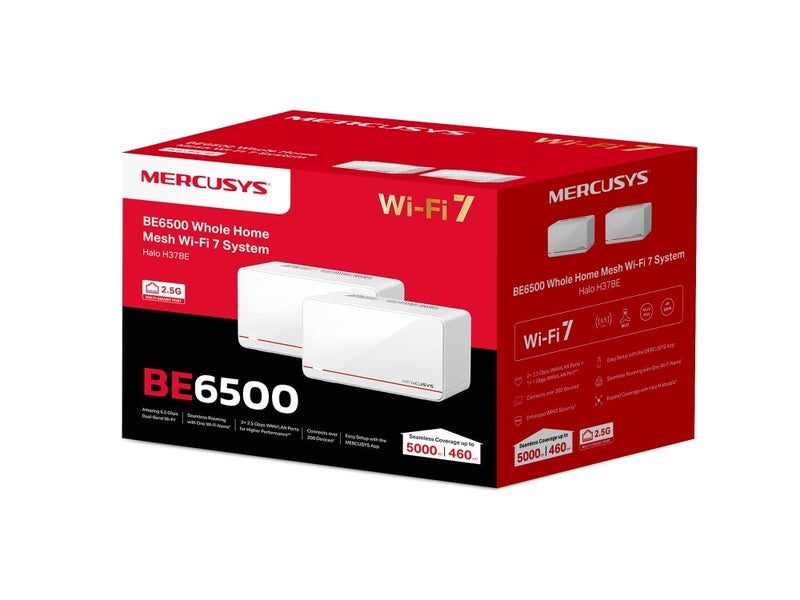

| 2-Pack | • 2× Halo H37BE Units • 1× RJ45 Ethernet Cable • 2× Power Adapters • Quick Installation Guide |
| 3-Pack | • 3× Halo H37BE Units • 1× RJ45 Ethernet Cable • 3× Power Adapters • Quick Installation Guide |
| Environment | |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Operating Humidity | 10% ~ 90% RH (Non-Condensing) |
| Storage Humidity | 5% ~ 90% RH (Non-Condensing) |
