Overview

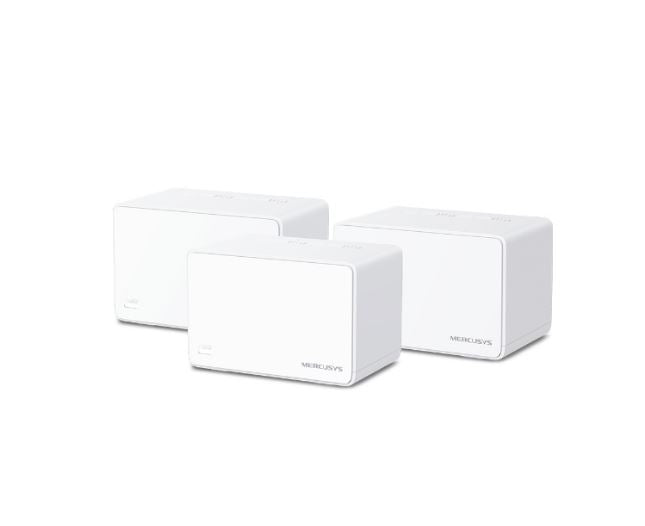

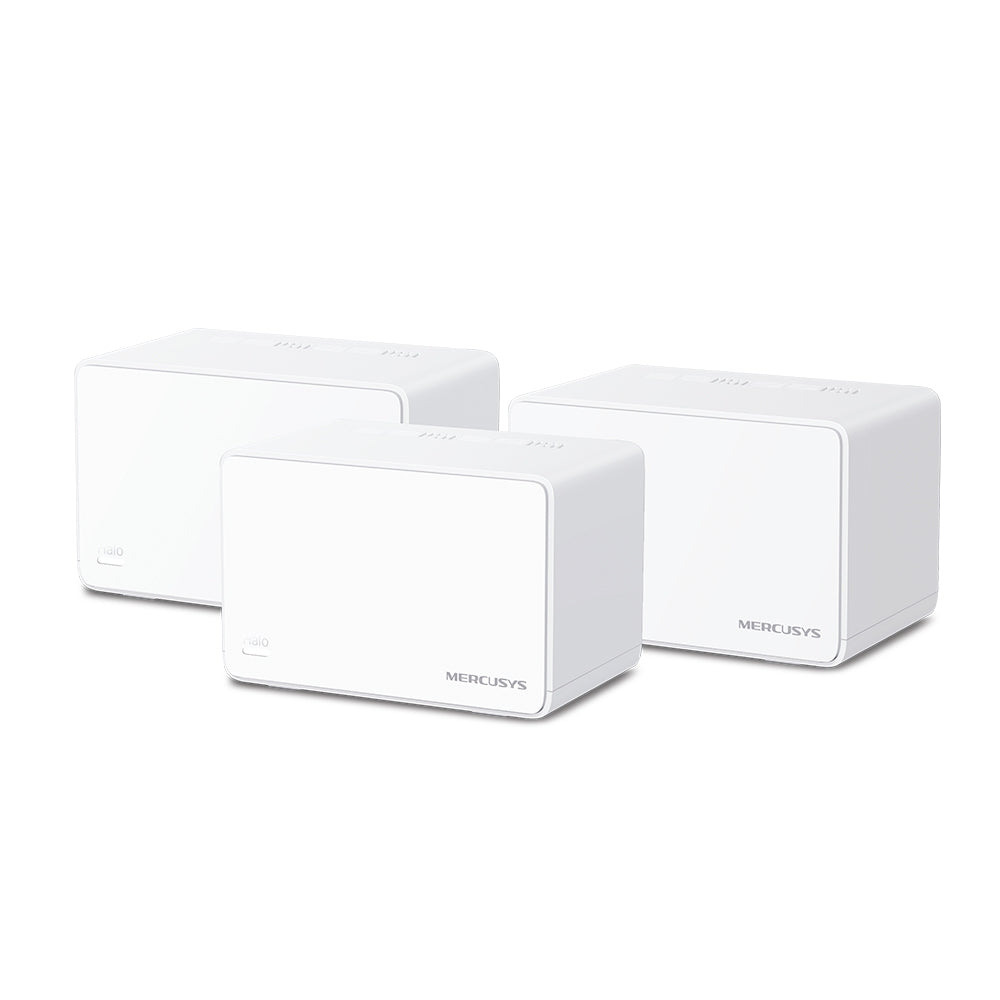

Halo H80X(3-pack)
AX3000 Whole Home Mesh WiFi 6 System
- Dual Band WiFi 6 Speeds up to 3000 Mbps – 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
- Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.‡
- Whole Home Coverage – Blanket up to 7,000 ft² /650 m² (ideal for 4-6 bedroom houses) with high-speed WiFi, eliminating WiFi dead zones at your home.†
- Connect over 150 Devices – Provide fast and stable connections over 150 devices.†
- Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.
- Full Gigabit Ports – 3× Gigabit ports per Halo unit for lightning-fast wired connections.**
*Please note that the Halo H series and S series cannot work together.
Halo H80X(3-pack)
AX3000 Whole Home Mesh WiFi 6 System
- Dual Band WiFi 6 Speeds up to 3000 Mbps – 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.†
- Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.‡
- Whole Home Coverage – Blanket up to 7,000 ft² /650 m² (ideal for 4-6 bedroom houses) with high-speed WiFi, eliminating WiFi dead zones at your home.†
- Connect over 150 Devices – Provide fast and stable connections over 150 devices.†
- Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.
- Full Gigabit Ports – 3× Gigabit ports per Halo unit for lightning-fast wired connections.**
*Please note that the Halo H series and S series cannot work together.
TP-Link Halo H80X AX3000 Mesh Wi-Fi System Specifications | |
---|---|
Wireless | |
Wireless Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a (5 GHz) IEEE 802.11ax/n/b/g (2.4 GHz) |
WiFi Speeds | • 5 GHz: 2402 Mbps • 2.4 GHz: 574 Mbps |
Reception Sensitivity |
2.4 GHz: • 11g 6 Mbps: −96.5 dBm • 11g 54 Mbps: −78 dBm • HE20 MCS0: −96.5 dBm • HE20 MCS11: −65 dBm • HE40 MCS0: −93.5 dBm • HE40 MCS11: −63 dBm 5 GHz: • 11a 6 Mbps: −96 dBm • 11a 54 Mbps: −78 dBm • VHT20 MCS8: −74.5 dBm • VHT40 MCS9: −70.5 dBm • VHT80 MCS9: −66.5 dBm • HE20 MCS11: −66 dBm • HE40 MCS11: −63 dBm • HE80 MCS11: −61 dBm |
Transmission Power | • 2.4 GHz: < 20 dBm (EIRP) • 5 GHz: < 23 dBm (EIRP) |
Wireless Security | WPA-PSK, WPA2-PSK, WPA3 |
Mesh Protocol | 802.11k/v/r |
Hardware | |
Dimensions (W × D × H) | 128 × 81 × 83.7 mm (5 × 3.2 × 3.3 in) |

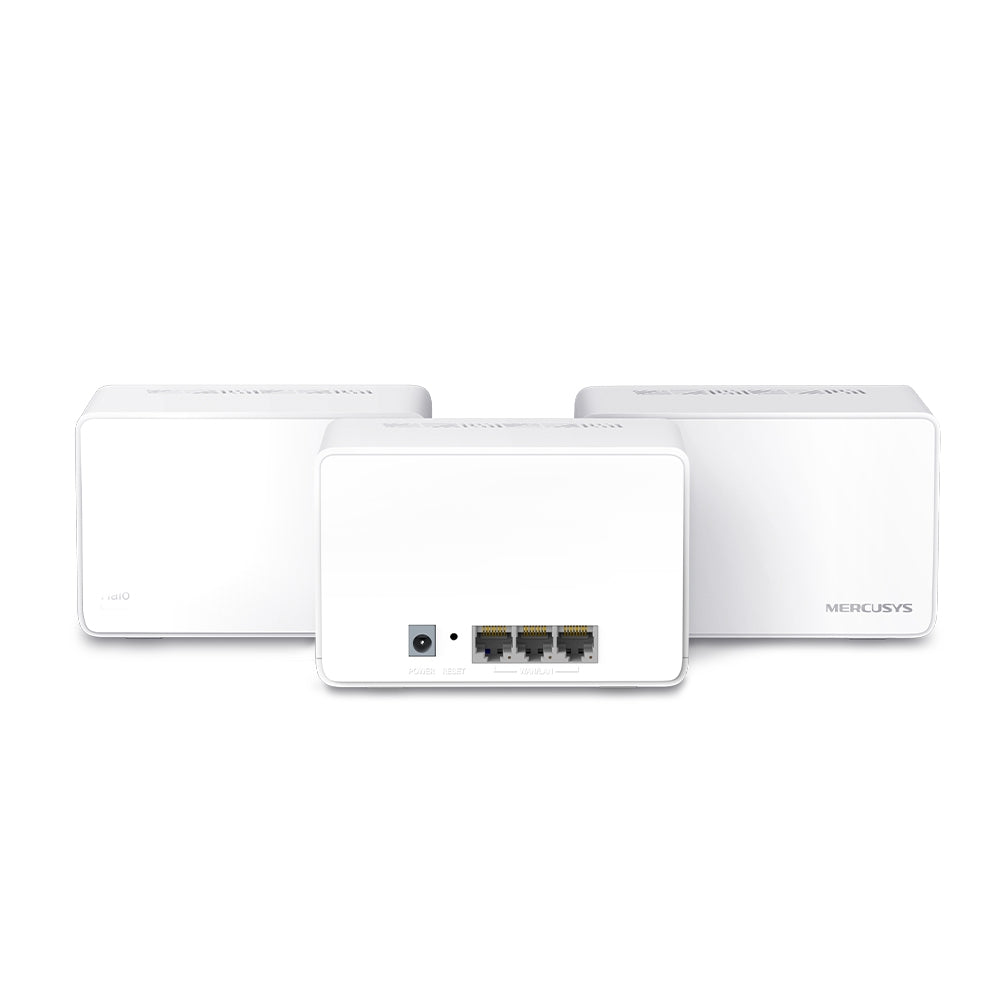

Interfaces | 3× Gigabit Ports per Halo Unit (WAN/LAN Auto-Sensing) |
Button | Reset Button |
Software | |
Operation Mode | Router, Access Point |
Quality of Service | WMM |
WAN Type | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
Management | Local Management, Remote Management, Multi-Managers |
Firewall Security | SPI Firewall |
Protocols | IPv4, IPv6 |
Guest Network | 2.4 GHz and 5 GHz |
DHCP | Server, Client |
Network Services Enabled by Default | |
Web Server | HTTP/HTTPS (Port 80/443, TCP) |
DHCP Server | IP Assignment (Port 67, UDP) |
DNS | Port 53, TCP & UDP |
App Management | • Port 20001 (TCP) • Port 20002 (UDP) |
Package Contents | |
3-Pack | • 3× Halo H80X Units • 1× RJ45 Ethernet Cable • 3× Power Adapters • Quick Installation Guide |
2-Pack | • 2× Halo H80X Units • 1× RJ45 Ethernet Cable • 2× Power Adapters • Quick Installation Guide |
Environment | |
Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
Operating Humidity | 10% ~ 90% RH (Non-Condensing) |
Storage Humidity | 5% ~ 90% RH (Non-Condensing) |
