TP-Link Mercusys Halo H85X AX3000 Whole Home Mesh Wi-Fi 6 System (2-pack) Halo H85X(2-pack)

TP-LinkSKU: Halo H85X(2-pack)

Mercusys Halo H85X(2-pack) AX3000 Whole Home Mesh Wi-Fi 6 System

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$261.00
Contact Us for ETA

Estimate shipping

Description

Overview

Halo H85X
AX3000 Whole Home Mesh WiFi 6 System
- Dual Band WiFi 6 Speeds up to 3000 Mbps – 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.‡
- Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.†
- Whole Home Coverage – Blanket up to 7,000 ft²/650 m² (ideal for 4-6 bedroom houses) with high-speed WiFi, eliminating WiFi dead zones at your home.‡
- Connect over 150 Devices – Provide fast and stable connections over 150 devices.‡
- Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.
- 2.5 Gbps Multi-Gig Port – 1× 2.5 Gpbs and 2× Gigabit ports per Halo H85X unit for lightning-fast wired connections.§
*Please note that the Halo H series and S series cannot work together.

TP-Link Halo H85X/H80X AX3000 Wi-Fi 6 Mesh System Specifications
Wireless
Wireless Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a (5 GHz)
IEEE 802.11ax/n/b/g (2.4 GHz)
WiFi Speeds • 5 GHz: 2402 Mbps
• 2.4 GHz: 574 Mbps
Reception Sensitivity 2.4 GHz:
• 11g 6 Mbps: −96.5 dBm
• 11g 54 Mbps: −78 dBm
• 11AX HE20 MCS0: −96.5 dBm
• 11AX HE20 MCS11: −65 dBm
• 11AX HE40 MCS0: −93.5 dBm
• 11AX HE40 MCS11: −63 dBm

5 GHz:
• 11a 6 Mbps: −96 dBm
• 11a 54 Mbps: −78 dBm
• 11ac VHT20 MCS8: −74.5 dBm
• 11ac VHT40 MCS9: −70.5 dBm
• 11ac VHT80 MCS9: −66.5 dBm
• 11AX HE20 MCS11: −66 dBm
• 11AX HE40 MCS11: −63 dBm
• 11AX HE80 MCS11: −61 dBm
Transmission Power • 2.4 GHz: < 20 dBm (EIRP)
• 5 GHz: < 23 dBm (EIRP)
Wireless Security WPA-PSK, WPA2-PSK, WPA3
Mesh Protocol 802.11k/v/r
Hardware
Dimensions (W × D × H) 128 × 81 × 83.7 mm (5 × 3.2 × 3.3 in)

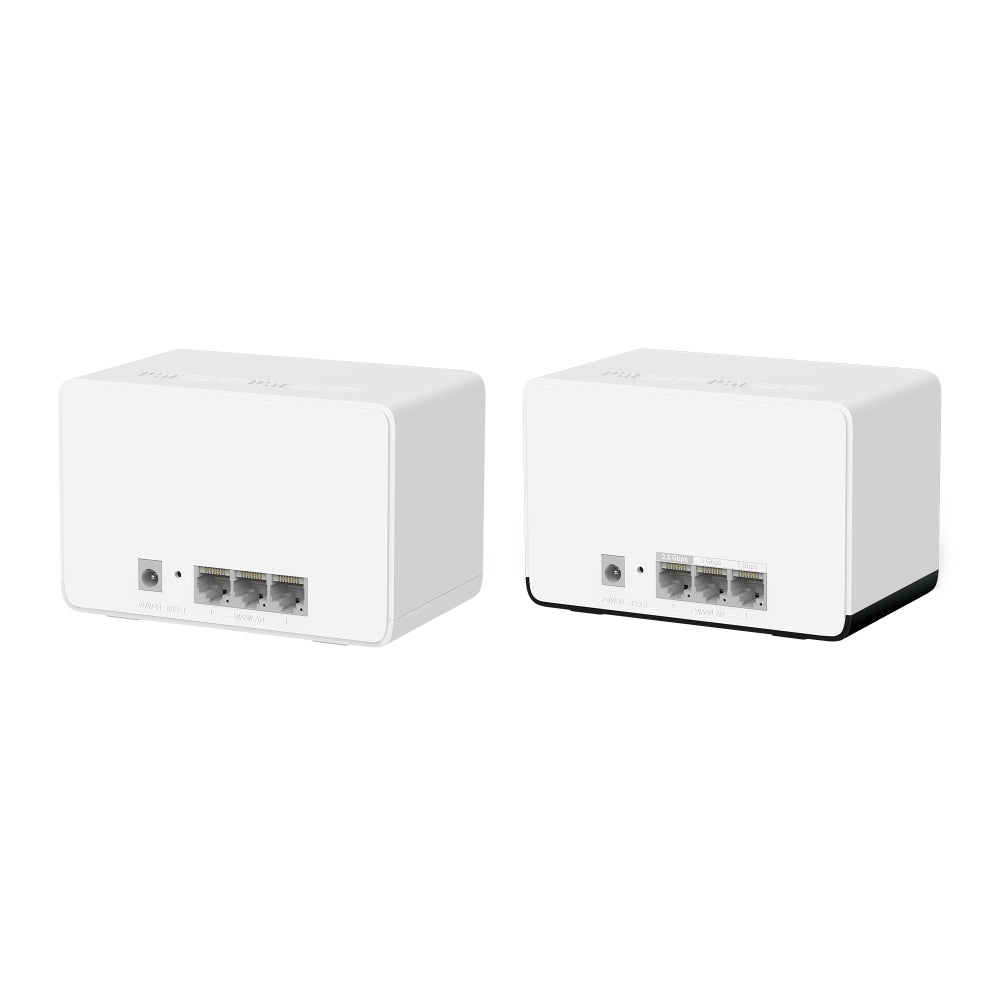

Interfaces • Halo H85X: 1× 2.5 Gbps Port + 2× 1 Gbps Ports
• Halo H80X: 3× 1 Gbps Ports
• All ports support WAN/LAN auto-sensing
Button Reset Button
Software
Operation Mode Router, Access Point
Quality of Service WMM
WAN Type Dynamic IP, Static IP, PPPoE, L2TP, PPTP
Management Local Management, Remote Management, Multi-Managers
Firewall Security SPI Firewall
Protocols IPv4, IPv6
Guest Network 2.4 GHz and 5 GHz
DHCP Server, Client
Network Services Enabled by Default
Web Server HTTP/HTTPS (Port 80/443, TCP)
DHCP Server IP Assignment (Port 67, UDP)
DNS Port 53, TCP & UDP
App Management • Port 20001 (TCP)
• Port 20002 (UDP)
Package Contents
3-Pack • 1× Halo H85X Unit
• 2× Halo H80X Units
• 1× RJ45 Ethernet Cable
• 3× Power Adapters
• Quick Installation Guide
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity 10% ~ 90% RH (Non-Condensing)
Storage Humidity 5% ~ 90% RH (Non-Condensing)
