Overview

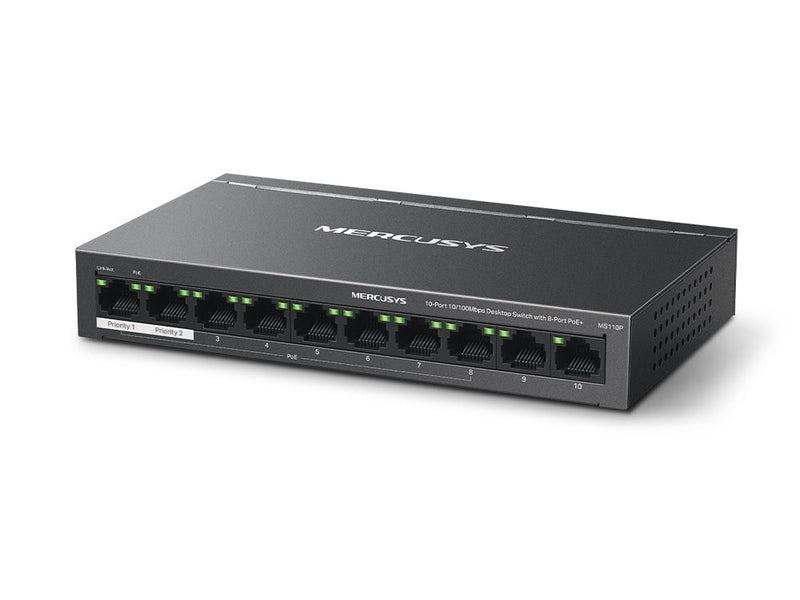

MS110P
10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
- 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
MS110P
10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
- 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
| Mercusys MS110P Switch Specifications | |
|---|---|
| Hardware | |
| Standards and Protocols | IEEE 802.3x Flow Control |
| Dimensions | 171 × 98 × 27 mm |
| Interfaces | 10× 10/100 Mbps RJ45 Ports (Auto-Negotiation, Auto MDI/MDIX) |
| PoE Ports | • Port 1–8 • IEEE 802.3af/at compliant • PoE Power Budget: 65 W |

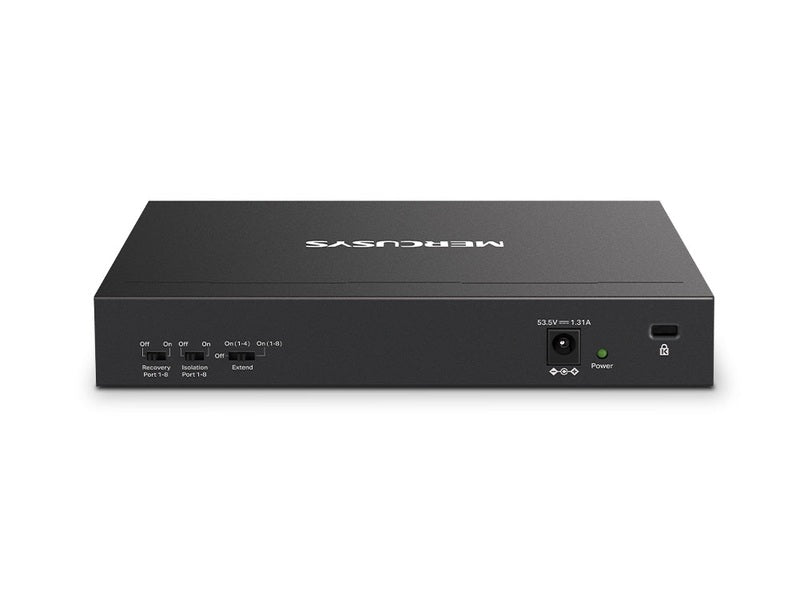

| External Power Supply | 53.5 V / 1.31 A (External Adapter) |
| Installation | Desktop / Wall Mount |
| Data Rates | • 10/100 Mbps (Half Duplex) • 20/200 Mbps (Full Duplex) |
| Jumbo Frame | 2 KB |
| MAC Address Table | 2K |
| Max Power Consumption | • 2.96 W (220 V / 50 Hz, no PD connected) • 77.52 W (220 V / 50 Hz, with 65 W PD connected) |
| Max Heat Dissipation | • 10.064 BTU/hr (no PD connected) • 263.568 BTU/hr (with 65 W PD connected) |
| Others | |
| Package Contents | • MS110P Switch • Power Adapter • Quick Installation Guide |
| Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | −40°C to 70°C (−40°F to 158°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
