Overview
MPG Z890I EDGE TI WIFI
MPG Z890I EDGE TI WIFI is a mini-ITX Z890 motherboard with incredible power and expansion. It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 connecitvity. The 5-in-1 Xpander brings this motherboard more connectivities. It is definetly the best mini-ITX motherboard for Intel Core Ultra processors.
MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 10+1+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 10+1+1+1 phases power design. Combining 110A Smart Power Stage, MPG Z890I EDGE TI WIFI is ready for the challenge of high-end processors.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.
Exclusive UI of AIDA64 Extreme
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
Opt-in to Cyber Safety with Norton 360 Deluxe
Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.
MPG Z890I EDGE TI WIFI
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, up to 8600+ MT/s (OC)
- Ultra Performance: Direct 10+1+1+1 Power Phases, Core Boost, Memory Boost, 14-layer PCB made by 1oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, Frozr Heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ M.2 Shield Frozr II, Smart Button and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
MPG Z890I EDGE TI WIFI
MPG Z890I EDGE TI WIFI is a mini-ITX Z890 motherboard with incredible power and expansion. It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 connecitvity. The 5-in-1 Xpander brings this motherboard more connectivities. It is definetly the best mini-ITX motherboard for Intel Core Ultra processors.
MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 10+1+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 10+1+1+1 phases power design. Combining 110A Smart Power Stage, MPG Z890I EDGE TI WIFI is ready for the challenge of high-end processors.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.
Exclusive UI of AIDA64 Extreme
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
Opt-in to Cyber Safety with Norton 360 Deluxe
Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.
MPG Z890I EDGE TI WIFI
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, up to 8600+ MT/s (OC)
- Ultra Performance: Direct 10+1+1+1 Power Phases, Core Boost, Memory Boost, 14-layer PCB made by 1oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, Frozr Heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ M.2 Shield Frozr II, Smart Button and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | INTEL Z890 |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 (See MSI Support for CPU list) L3 cache varies with CPU |
| Memory | 2× DDR5 DIMM, up to 128GB 8600–6400 (OC) MT/s / 6400–4800 (JEDEC) MT/s Max OC Frequency: • 1DPC 1R: up to 8600+ MT/s • 1DPC 2R: up to 7200+ MT/s Supports Intel POR Speed, JEDEC Speed, XMP 3.0 Dual-Controller Dual-Channel mode Non-ECC, Un-buffered, CUDIMM • Single-sided latches • Compatibility varies by CPU/memory config |
| Onboard Graphics | • 1× HDMI™ (2.1 FRL, up to 8K@60Hz*) • 2× Type-C DisplayPort (Thunderbolt™ 4, DP 2.1 UHBR20, up to 4K@120Hz / 8K@60Hz*) * Only with CPUs featuring integrated graphics |
| Slot | • 1× PCIe x16 (Gen 5.0, from CPU) • BIOS adjustable to X8+X8 / X8+X4+X4 |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio S/PDIF output supported |
| Storage | • 4× M.2: - M.2_1 (CPU): PCIe 5.0 x4, 2280 - M.2_2 (CPU): PCIe 4.0 x4, 2280 - M.2_3 (Chipset): PCIe 4.0 x4 / SATA, 2280 - M.2_4 (Chipset): PCIe 4.0 x4, 2280 • 2× SATA 6G * M.2_4 & SATA via 5-in-1 XPANDER * See manual for heatsink restrictions |
| RAID | • SATA: RAID 0/1/5 • M.2 NVMe: RAID 0/1/5/10 |
| Onboard Thunderbolt | • 2× Thunderbolt™ 4 (Rear) • 40Gbps (Thunderbolt), 20Gbps (USB4), 10Gbps (USB 3.2) • 5V/3A, 15W charging • Daisy-chain: 3× TB4 or 5× TB3 devices • Up to 8K display |
| USB | • Front: 2× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 20Gbps Type-C • Rear: 7× USB 10Gbps Type-A, 1× USB 10Gbps Type-C * 2× 5Gbps Type-A & 1× 20Gbps Type-C via XPANDER * USB PD 27W fast charging supported for JUSBC1 |
| LAN | 1× Intel® Killer™ E5000B 5G LAN |
| Internal IO | • Power: ATX_PWR, CPU_PWR • Cooling: CPU Fan, Combo Fan, System Fan • Headers: EZ Conn (JAF_2), 2× Front Panel (JFP), Chassis Intrusion (JCI), Front Audio (JAUD), Thermal Sensor (T_SEN), Addressable RGB (JARGB_V2), TPM (TPM 2.0) • USB: 2× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 20Gbps Type-C |
| Wireless LAN & Bluetooth | Intel® Killer™ BE1750x Wi-Fi 7 (M.2 Key-E) • MU-MIMO TX/RX, 2.4/5/6GHz (320MHz), up to 5.8Gbps • 802.11 a/b/g/n/ac/ax/be • Bluetooth® 5.4, MLO, 4KQAM * Wi-Fi 7 requires Windows 11 24H2 ** Bluetooth 5.4 readiness depends on OS and vendor |
| LED Feature | 4× EZ Debug LED |

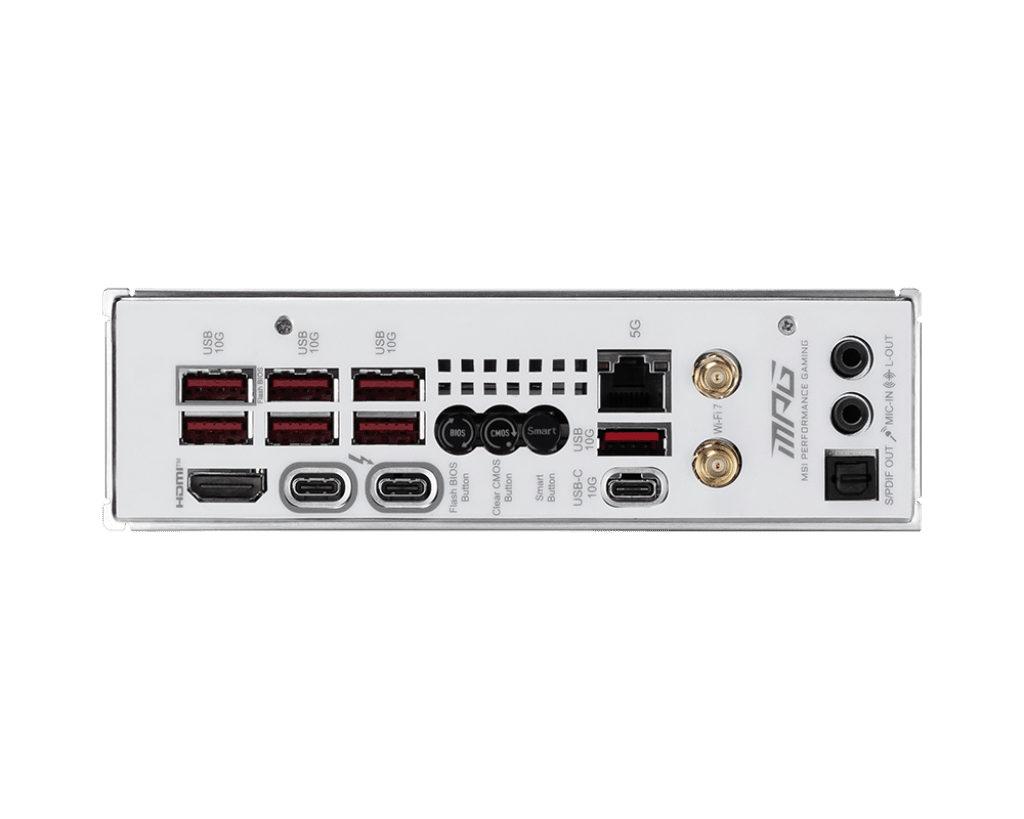

| Back Panel Ports | • USB 10Gbps Type-A • Flash BIOS Button, Clear CMOS Button, Smart Button • 5G LAN, Wi-Fi/Bluetooth • Audio Connectors, HDMI™, Thunderbolt™ 4 • USB 10Gbps Type-C, USB 10Gbps Type-A • Optical S/PDIF Out |
| Operating System | Support for Windows® 11 64-bit |
