Description
Overview

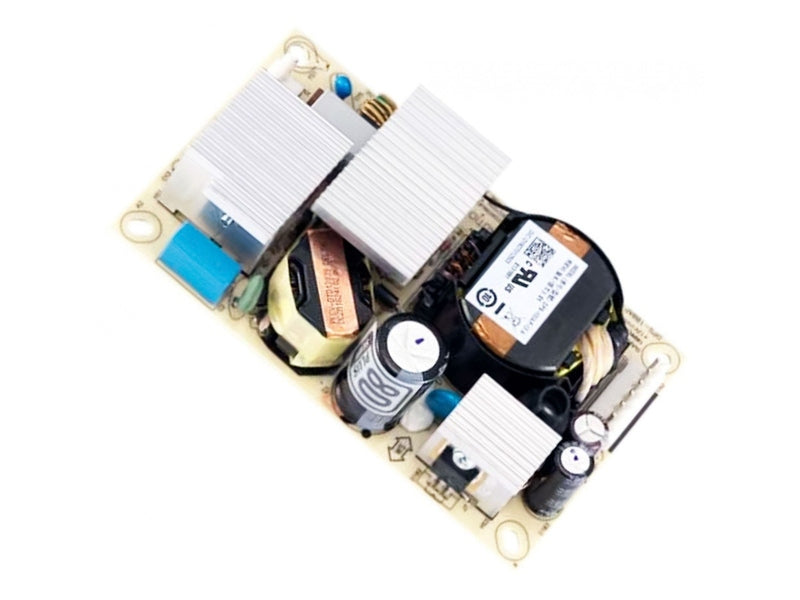

The QNAP 100W Open Frame Delta Power Supply utilizes an open-frame design for easy installation in your compatible QNAP NAS.
The QNAP 100W Open Frame Delta Power Supply utilizes an open-frame design for easy installation in your compatible QNAP NAS.
| General | |
|---|---|
| Model | PWR-PSU-100W-DT01 |
| Product Type | Internal Power Supply Unit |
| Application | Compatible with select QNAP NAS systems |
| Form Factor | Custom-fit desktop PSU |
| Electrical | |
| Rated Power Output | 100W |
| Input Voltage | 100–240V AC |
| Input Frequency | 50–60 Hz |
| Output Voltage | 12V DC |
| Power Efficiency | Typical ≥ 85% |
| Protection Features | Over Voltage, Over Current, Short Circuit, Over Temperature |
| Physical | |
| Dimensions | Approx. 160 × 55 × 40 mm |
| Weight | Approx. 0.65 kg |
| Color | Black |
| Cooling | Passive or integrated fan (model-dependent) |
| Mounting | Internal chassis mount |
| Environmental | |
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | -20 ~ 70 °C |
| Humidity | 5 ~ 95% RH (non-condensing) |
| Noise Level | < 30 dBA (typical) |
| Certifications | |
| Compliance | CE, FCC, BSMI, RoHS |
