Description

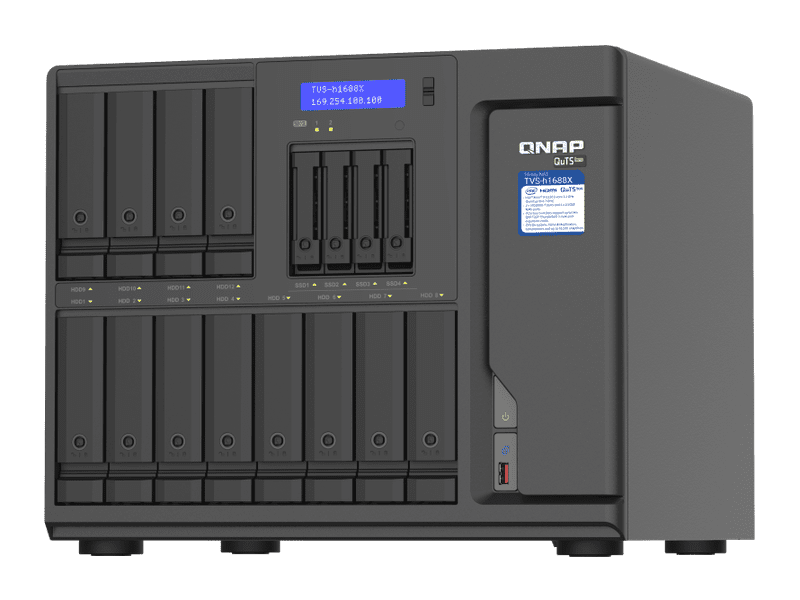

The high-capacity TVS-h1688X features a powerful Intel® Xeon® W processor and allows for installing two QNAP QXP-T32P Thunderbolt™ 3 PCIe expansion cards (sold separately) to attain four Thunderbolt™ 3 ports, making it a perfect match for Thunderbolt™-equipped Mac® and Windows® users for high-speed media collaboration. The built-in 10GbE and 2.5GbE connectivity supports Port Trunking and failover to further satisfy bandwidth and reliability demanding business applications. Running the ZFS-based QuTS hero operating system, the TVS-h1688X supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies, helping your business achieve reliable service-level agreement performance, from creative workflows to file server, virtualization server, and efficient file backup and recovery applications.
-
High-speed Thunderbolt™ 3
Attain quad-port Thunderbolt™ 3 connectivity by installing two QXP-T32P expansion cards in the PCIe Gen 3 x4 slots.
QXP-T32P expansion cards are sold separately
-
10GbE/2.5GbE connectivity
Two 10GBASE-T and four 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.
-
Flexible PCIe expansion
PCIe slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or graphics cards to increase application performance.
-
4K HDMI output
4K media playback and real-time transcoding; directly output videos to an HDMI display (up to 4K @30Hz).
-
Virtualization applications
Supports virtual machines and containerized apps, centralized storage, backup, sharing, disaster recovery, and storage expansion.
-
Cloud storage gateway
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
TVS-h1688X-W1250-32G Specifications
CPU | Intel® Xeon® W-1250 6-core 3.3 GHz processor (boost up to 4.7 GHz) |
CPU Architecture | 64-bit x86 |
Graphic Processors | Intel® UHD Graphics P630 |
Floating Point Unit | ✓ |
Encryption Engine | ✓(AES-NI) |
Hardware-accelerated Transcoding | ✓ |
System Memory | 32GB ECC UDIMM DDR4 (2 x 16 GB) |
Maximum Memory | 128 GB (4 x 32 GB) |
Memory Slot | 4 x Long-DIMM DDR4
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
|
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA solid state drives |
Hot-swappable | ✓ |
M.2 SSD Slot | 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots |
SSD Cache Acceleration Support | ✓ |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (also support 10M) |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/1G) |
25 Gigabit Ethernet Port | Optional via an adapter |
Wake on LAN (WOL) |
✓Only the 2.5GbE port
|
Jumbo Frame | ✓ |
Thunderbolt Port | Optional via the QXP-T32P 2-port Thunderbolt 3 PCIe adapter |
PCIe Slot | 3 Slot 1: PCIe Gen3 x8 Slot 2: PCIe Gen3 x4 Slot 3: PCIe Gen3 x4 *Slot 1 is preinstalled with a 2-port 10GbE network adapter.
|
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C 4 x Type-A |
HDMI Output | 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
Audio Input | - (No longer available on units manufactured on or after 2021/1/1) |
Audio Output | - (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1) |
Form Factor | Tower |
LED Indicators | System status, LAN, USB, Disk 1~16, M.2 SSD 1~2 |
LCD Display/ Button | ✓ |
Buttons | Power, Reset, USB Auto Copy |
Dimensions (HxWxD) | 303.84 × 369.89 × 319.8 mm |
Weight (Net) | 13.41 kg |
Weight (Gross) | 16.3 kg |
Operating temperature | 0 - 40°C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 550W PSU, 100~240V |
Power Consumption: HDD Sleep Mode | 91.26 W |
Power Consumption: Operating Mode, Typical | 108.67 W
Tested with drives fully populated.
|
Fan | System fan: 3 x 80mm, 12VDC CPU fan: 2 x 97mm, 12VDC |
Sound Level | 25.8 db(A) |
System Warning | Buzzer |
Kensington Security Slot | ✓ |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10000 |
