Description

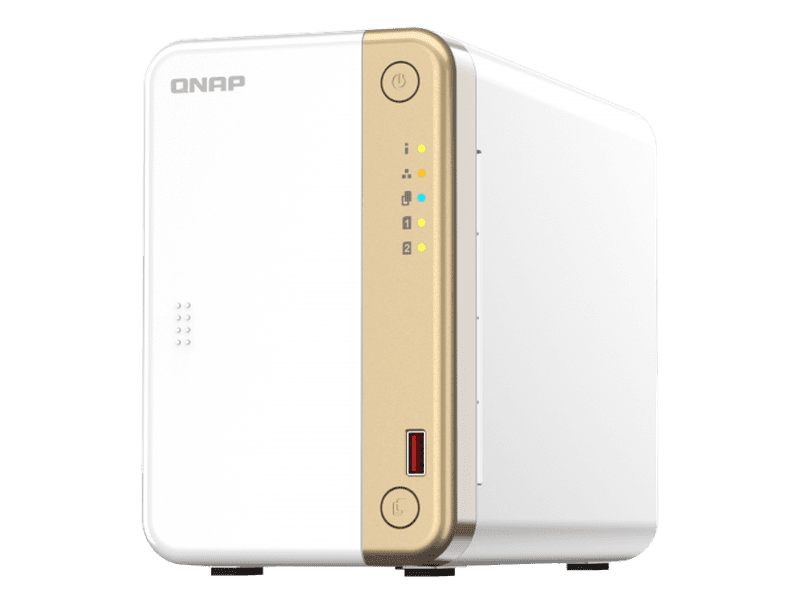

TS-262
Intel Dual-Core 2.5GbE Multimedia NAS with M.2 PCIe slots and PCIe expandability
A fast and vast private cloud storage with a range of multimedia and file management applications, the TS-262 is ideal for home users to maximize their digital lifestyle. Files, data and multimedia saved on the TS-262 can be accessed from all your connected devices, including phones, computers and smart TVs. A 2.5GbE port and HDMI 2.0 port come as standard, allowing you to enjoy lag-free multimedia streaming throughout your home and directly on your TV. The TS-262 can be geared up to fit future needs, supporting two M.2 PCIe slots for Qtier auto-tiering storage technology, and can be easily expanded to fit growing data needs. The TS-262 also supports Edge TPU, allowing you to easily organize your photos based on facial and object recognition with the QuMagie app.
2.5GbE port
Immediately multiply your network speed by 2.5 times while using existing CAT5e cables.
HDMI port
4K media playback and real-time transcoding; directly watch videos using HDMI 2.0 (4K @60Hz) output.
AI-powered image recognition
Supports Edge TPU (optional purchase) for supercharged AI-powered image recognition.
Dual M.2 PCIe slots
Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately).
PCIe slot
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-262, including a Multi-Gig 10GbE/5GbE network card, a USB 3.2 Gen 2 (10Gbps) card, or a Wi-Fi 6 network card.
Expand storage capacity
Flexibly scale your total storage capacity by connecting USB expansion enclosures (please see the compatibility list).

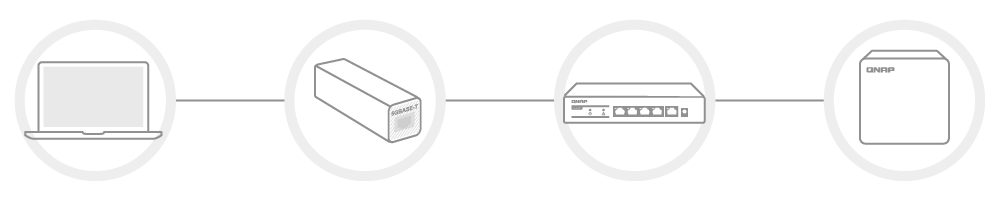

Upgrade your home network to 2.5GbE
Wi-Fi 6 and 5G are becoming the new normal for networking, and there’s no reason why your home wired network shouldn’t also get a boost. The TS-262 comes with single 2.5GbE RJ45 LAN port which supports existing CAT5e cables. If your computers don’t have 2.5GbE ports, you can use QNAP’s USB 3.2 Gen 1 to 5GbE adapter (model name QNA-UC5G1T) to take advantage of the huge speed increase that 2.5GbE provides over standard Gigabit Ethernet. QNAP also provide affordable 2.5GbE switches and other adapters for you to take full advantage of the TS-262’s 2.5GbE connectivity.
Specifications
CPU | Intel® Celeron® N4505 2-core/2-thread processor, burst up to 2.9 GHz |
CPU Architecture | 64-bit x86 |
Graphic Processors | Intel® UHD Graphics |
Floating Point Unit | ✓ |
Encryption Engine | ✓(AES-NI) |
Hardware-accelerated Transcoding | ✓ |
System Memory | 4 GB on board (non-expandable) |
Maximum Memory | 4 GB |
Flash Memory | 4GB (Dual boot OS protection) |
Drive Bay | 2 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | ✓ |
M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 |
SSD Cache Acceleration Support | ✓ |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1 (2.5G/1G/100M/10M) |
Wake on LAN (WOL) | ✓ |
Jumbo Frame | ✓ |
PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 |
USB 2.0 port | 2 |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
IR Sensor | (Optional QNAP RM-IR004 remote control) |
HDMI Output | 1, HDMI 2.0 |
Form Factor | Tower |
LED Indicators | Power/Status, LAN, USB, HDD1-2 |
Buttons | Power, USB copy, Reset |
Dimensions (HxWxD) | 168 × 105 × 226 mm |
Weight (Net) | 1.55 kg |
Weight (Gross) | 2.68 kg |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 65W adapter, 100-240V |
Power Consumption: HDD Sleep Mode | 8.198 W |
Power Consumption: Operating Mode, Typical | 12.448 W
Tested with drives fully populated.
|
Fan | 1 x 70mm, 12VDC |
System Warning | Buzzer |
Kensington Security Slot | ✓ |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
