Description
BTS-264
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
M.2 SSD caching
Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.
PCIe expandability
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-264, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.
License-free virtualized environment
Host multiple containerized apps to run a wide range of applications and services.
Drives Auto-Tiering
Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
4K HDMI
4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.
Bye-bye Gigabit NAS, hello 2.5GbE NAS.

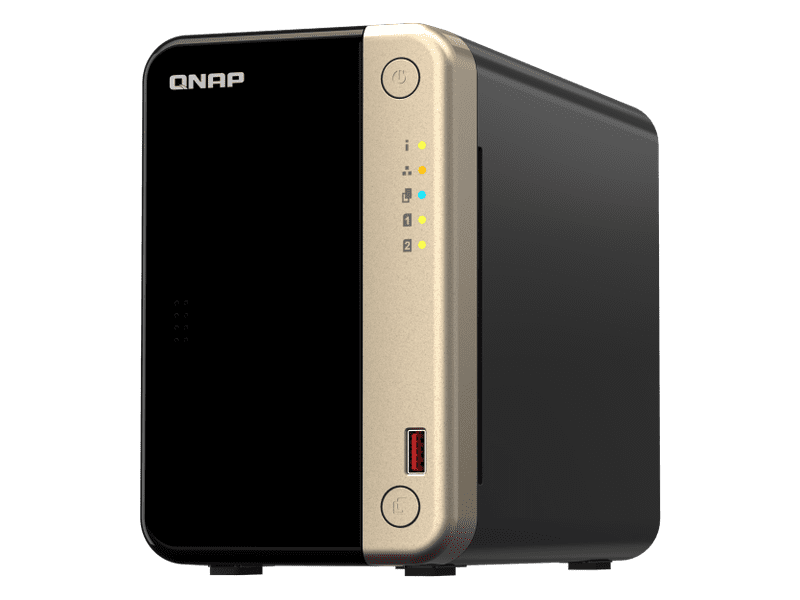

TS-264 is a compact 2-bay NAS with superior performance. Supporting up to 22 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-264 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.
2.5GbE connectivityUp to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
M.2 SSD caching
Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.
PCIe expandability
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-264, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.
License-free virtualized environment
Host multiple containerized apps to run a wide range of applications and services.
Drives Auto-Tiering
Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
4K HDMI
4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.
Specifications
CPU | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
CPU Architecture | 64-bit x86 |
Graphic Processors | Intel® UHD Graphics |
Floating Point Unit | ✓ |
Encryption Engine | ✓(AES-NI) |
Hardware-accelerated Transcoding | ✓ |
System Memory | 8 GB on board (non-expandable) |
Maximum Memory | 8 GB |
Flash Memory | 4GB (Dual boot OS protection) |
Drive Bay | 2 x 3.5-inch SATA 6Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | ✓ |
M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x1 |
SSD Cache Acceleration Support | ✓ |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via PCIe expansion card |
10 Gigabit Ethernet Port | Optional via PCIe expansion card |
Wake on LAN (WOL) | ✓ |
Jumbo Frame | ✓ |
PCIe Slot | 1 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot:190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
|
USB 2.0 port | 2 |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
IR Sensor | ✓(Optional QNAP RM-IR004 remote control) |
HDMI Output | 1, HDMI 2.0 (up to 4096 x 2160 @ 60Hz) |
Form Factor | Tower |
LED Indicators | Power/Status, LAN, USB, HDD1-2 |
Buttons | Power, USB copy, Reset |
Dimensions (HxWxD) | 168 × 105 × 226 mm |
Weight (Net) | 1.55 kg |
Weight (Gross) | 2.68 kg |
Operating Temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 65W adapter, 100-240V |
Power Consumption: HDD Sleep Mode | 18.288 W |
Power Consumption: Operating Mode, Typical | 29.086 W
Tested with drives fully populated.
|
Fan | 1 x 70mm, 12VDC |
System Warning | Buzzer |
Kensington Security Slot | ✓ |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
