Description

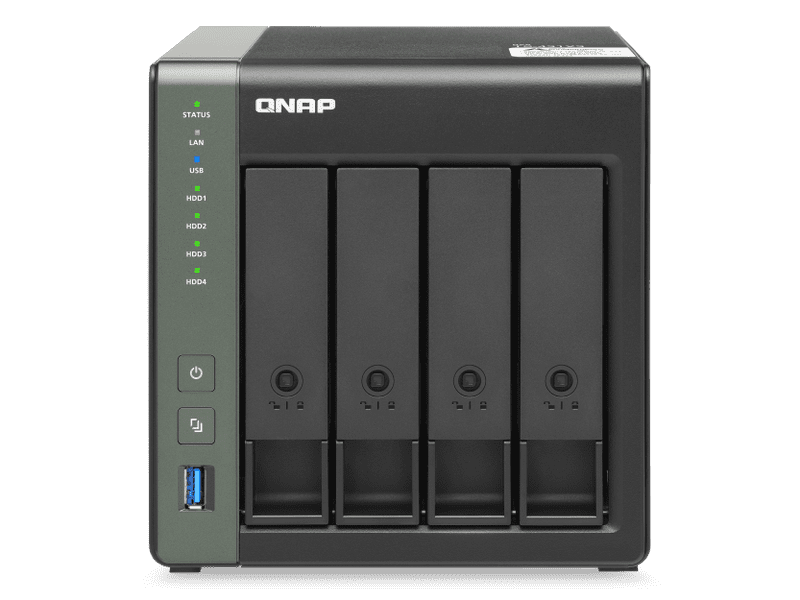

TS-431X3
The quad-core TS-431X3 provides four drive bays for high-capacity storage with expandable memory up to 8GB RAM to meet data backup, recovery, and virtualized storage needs of SMBs. The built-in 10GbE SFP+ port provides high bandwidth for intensive data transmission. Coupled with the QNAP 10GbE switch, you can build a high-speed 10GbE network environment. The TS-431X3 also features a 2.5GbE RJ45 port and a 1GbE RJ45 port for enhancing team file sharing and collaboration efficiency. The TS-431X3 provides comprehensive local, off-site and cloud backup and secure Snapshot technology to help create a reliable backup and disaster recovery plan. In the event of a system crash or accidental file deletion, you can quickly restore the system to its normal state.
- Single-port 10GbE connectivity enhances transfer speed for intensive data transmission and virtualized application, while 2.5GbE connectivity enables low-latency file sharing and team collaboration.
- HBS (Hybrid Backup Sync) can backup and sync your data to other NAS, servers and cloud storage for comprehensive backup and disaster recovery.
- Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
- Supports LXC and Docker® containers for rapidly deploying application services across platforms, including the cloud, servers, and PCs.
- Qfiling automates file organization, greatly improving work efficiency.
- Supports VJBOD (Virtual JBOD) technology to expand the storage space of other QNAP NAS.

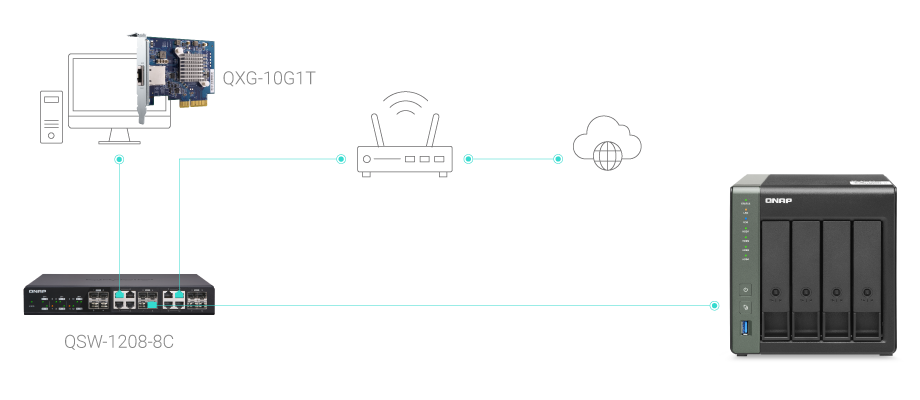

Easily Create a High-speed Network Environment
10GbE improves overall network performance and everyday tasks with ten times the bandwidth of 1GbE. From 10GbE NAS, to switches, to network adapters, QNAP provides a complete range of everything needed to upgrade to 10GbE environments.
TS-431X3-4G Specifications
CPU | AnnapurnaLabs, an Amazon company Alpine AL314, 4-core, 1.7GHz |
CPU Architecture | 32-bit ARM |
Floating Point Unit | ✓ |
Encryption Engine | ✓ |
System Memory | 4 GB SODIMM DDR3 (1 x 4 GB) |
Maximum Memory | 8 GB (1 x 8 GB) |
Memory Slot | 1 x SO-DIMM DDR3 |
Flash Memory | 512 MB (Dual boot OS protection) |
Drive Bay | 4x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
Hot-swappable | ✓ |
SSD Cache Acceleration Support | ✓ |
Gigabit Ethernet Port (RJ45) | 1 |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1 |
10 Gigabit Ethernet Port | 1 x 10GbE SFP+ |
Wake on LAN (WOL) |
✓Only the 1GbE port
|
Jumbo Frame | ✓ |
USB 3.2 Gen 1 port | 3 |
Form Factor | Tower |
LED Indicators | Power, Status, LAN, USB, HDD1-4 |
Buttons | Power, Reset, USB Auto Copy |
Dimensions (HxWxD) | 169 × 160 × 219 mm |
Weight (Net) | 2.01 kg |
Weight (Gross) | 3.47 kg |
Operating temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 90W Adapter, 100-240V |
Fan | 1 x 120mm, 12VDC |
System Warning | Buzzer |
Kensington Security Slot | ✓ |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 400 |
